Our adjustable foot with a hexagonal screw for easier fitting.

Material: PP - S
Standard colors: Black / RAL colors manufactured
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Metric Thread (M)
L
D
H

PDF
3D IGS
Add
00301200191 M8 16,00 20,00 15,50
00301200213 M8 16,00 23,00 15,50
00301200235 M8 16,00 28,00 15,50
00301200265 M8 16,00 33,00 15,50
00301200192 M8 20,00 20,00 15,50
00301200214 M8 20,00 23,00 15,50
00301200236 M8 20,00 28,00 15,50
00301200266 M8 20,00 33,00 15,50
00301200193 M8 30,00 20,00 15,50
00301200215 M8 30,00 23,00 15,50
00301200237 M8 30,00 28,00 15,50
00301200267 M8 30,00 33,00 15,50
00301200194 M8 40,00 20,00 15,50
00301200216 M8 40,00 23,00 15,50
00301200238 M8 40,00 28,00 15,50
00301200268 M8 40,00 33,00 15,50
00301200195 M8 50,00 20,00 15,50
00301200217 M8 50,00 23,00 15,50
00301200239 M8 50,00 28,00 15,50
00301200269 M8 50,00 33,00 15,50
00301200196 M8 60,00 20,00 15,50
00301200218 M8 60,00 23,00 15,50
00301200240 M8 60,00 28,00 15,50
00301200270 M8 60,00 33,00 15,50
00301200197 M8 70,00 20,00 15,50
00301200219 M8 70,00 23,00 15,50
00301200241 M8 70,00 28,00 15,50
00301200271 M8 70,00 33,00 15,50
00301200198 M8 80,00 20,00 15,50
00301200220 M8 80,00 23,00 15,50
00301200242 M8 80,00 28,00 15,50
00301200272 M8 80,00 33,00 15,50
00301200199 M8 90,00 20,00 15,50
00301200221 M8 90,00 23,00 15,50
00301200243 M8 90,00 28,00 15,50
00301200273 M8 90,00 33,00 15,50
00301200200 M8 100,00 20,00 15,50
00301200222 M8 100,00 23,00 15,50
00301200244 M8 100,00 28,00 15,50
00301200274 M8 100,00 33,00 15,50
00301200201 M8 120,00 20,00 15,50
00301200223 M8 120,00 23,00 15,50
00301200245 M8 120,00 28,00 15,50
00301200275 M8 120,00 33,00 15,50
00301200202 M10 16,00 20,00 16,50
00301200224 M10 16,00 23,00 16,50
00301200246 M10 16,00 28,00 16,50
00301200276 M10 16,00 33,00 16,50
00301200203 M10 20,00 20,00 16,50
00301200225 M10 20,00 23,00 16,50
00301200247 M10 20,00 28,00 16,50
00301200277 M10 20,00 33,00 16,50
00301200204 M10 30,00 20,00 16,50
00301200226 M10 30,00 23,00 16,50
00301200248 M10 30,00 28,00 16,50
00301200278 M10 30,00 33,00 16,50
00301200205 M10 40,00 20,00 16,50
00301200227 M10 40,00 23,00 16,50
00301200249 M10 40,00 28,00 16,50
00301200279 M10 40,00 33,00 16,50
00301200206 M10 50,00 20,00 16,50
00301200228 M10 50,00 23,00 16,50
00301200250 M10 50,00 28,00 16,50
00301200280 M10 50,00 33,00 16,50
00301200207 M10 60,00 20,00 16,50
00301200229 M10 60,00 23,00 16,50
00301200251 M10 60,00 28,00 16,50
00301200281 M10 60,00 33,00 16,50
00301200208 M10 70,00 20,00 16,50
00301200230 M10 70,00 23,00 16,50
00301200252 M10 70,00 28,00 16,50
00301200282 M10 70,00 33,00 16,50
00301200209 M10 80,00 20,00 16,50
00301200231 M10 80,00 23,00 16,50
00301200253 M10 80,00 28,00 16,50
00301200283 M10 80,00 33,00 16,50
00301200210 M10 90,00 20,00 16,50
00301200232 M10 90,00 23,00 16,50
00301200254 M10 90,00 28,00 16,50
00301200284 M10 90,00 33,00 16,50
00301200211 M10 100,00 20,00 16,50
00301200233 M10 100,00 23,00 16,50
00301200255 M10 100,00 28,00 16,50
00301200285 M10 100,00 33,00 16,50
00301200212 M10 120,00 20,00 16,50
00301200234 M10 120,00 23,00 16,50
00301200256 M10 120,00 28,00 16,50
00301200286 M10 120,00 33,00 16,50
00301200257 M12 30,00 28,00 17,50
00301200287 M12 30,00 33,00 17,50
00301200258 M12 40,00 28,00 17,50
00301200288 M12 40,00 33,00 17,50
00301200259 M12 50,00 28,00 17,50
00301200289 M12 50,00 33,00 17,50
00301200260 M12 60,00 28,00 17,50
00301200290 M12 60,00 33,00 17,50
00301200261 M12 70,00 28,00 17,50
00301200291 M12 70,00 33,00 17,50
00301200262 M12 80,00 28,00 17,50
00301200292 M12 80,00 33,00 17,50
00301200263 M12 90,00 28,00 17,50
00301200293 M12 90,00 33,00 17,50
00301200264 M12 100,00 28,00 17,50
00301200294 M12 100,00 33,00 17,50

If you are interested in our family LHVT, you may be interested in these families as well:

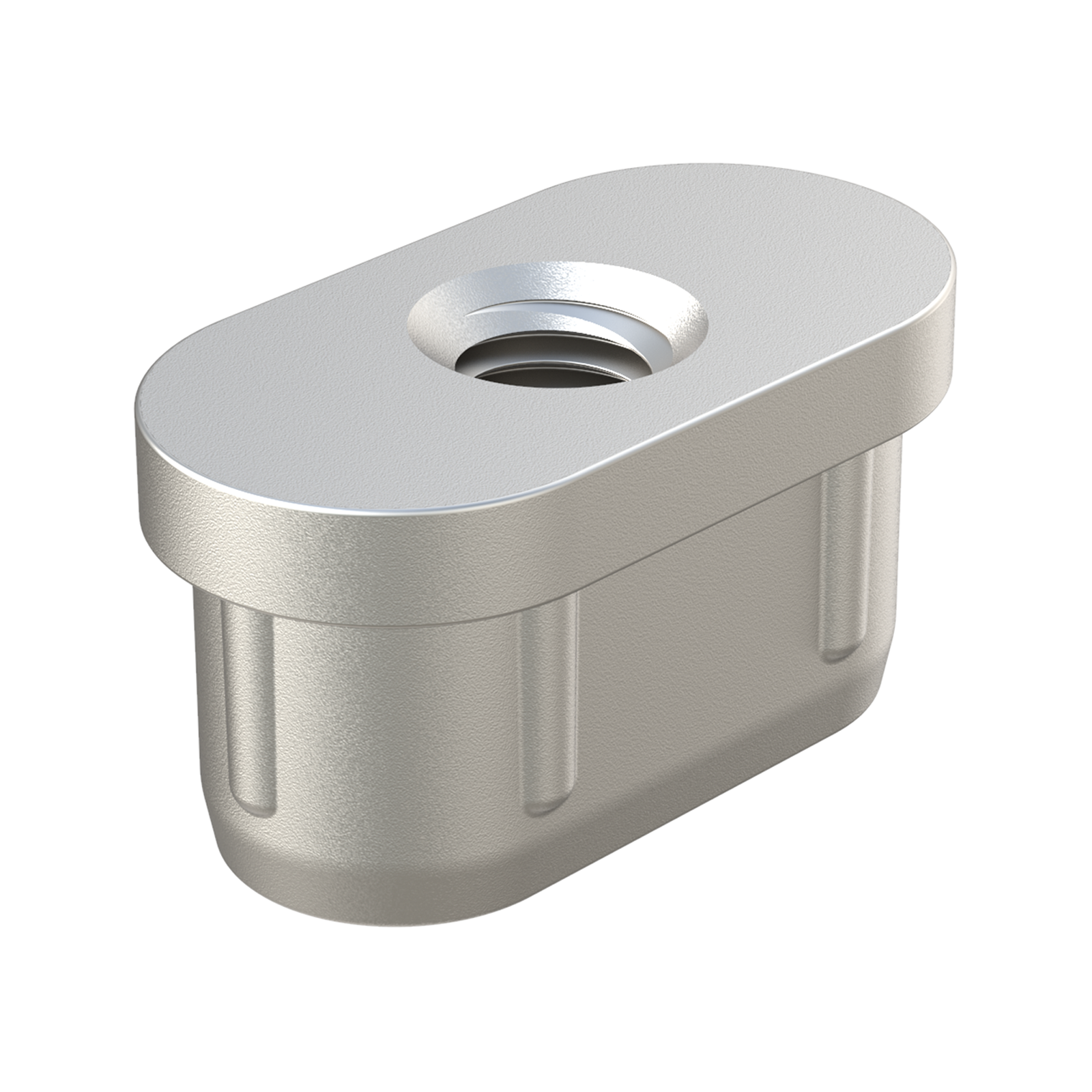

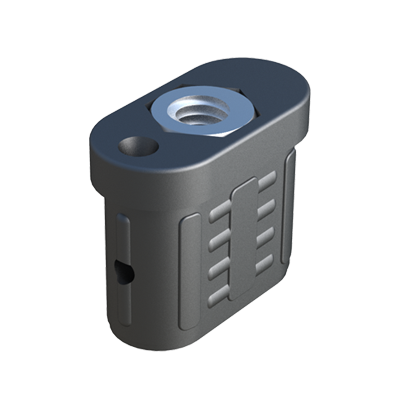

Our threaded insert is manufactured in Zamak alloy for oval tubes. It is also available for square tubes: LJM, round tubes: LJMR and for rectangular tubes: LJMZ.   Our threaded insert is manufactured in Zamak alloy for rectangular tubes. It is also available for round tubes: LJMR, square tubes: LJM and for oval tubes: LJMO.   Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.   Our square reinforced tube insert has an hexagonal nut which is inserted during the injection process. The tube insert has an excellent finishing and a good resistance. It is suitable for our adjustable feet, please see our Adjustable feet section.   Our threaded triangular tube insert is also available for square tubes: JTPO, for rectangular tubes: LJZ, for round tubes: JTPU, and for oval tubes: LJMT.   Our ribbed insert for oval tubes has a metal nut inserted during the injection process. It is also available for square tubes: JTPO, rectangular tubes: LJZ, round tubes: LJRL, and triangle tubes: LJZZ.   Our ribbed insert for square tubes has a metal nut inserted during the injection process. It is also available for rectangular tubes: LJZ, round: LJRL, and triangle tubes: LJZZ. Parts with greater   Our ribbed insert for rectangular tubes has a metal nut inserted during the injection process. It is also available for square tubes: LJ, round tubes LJRL, and triangle tubes: LJZZ. It is suitable with our adjustable feet group.   Our ribbed insert is for round tubes. It has been designed in two parts, with a hexagon metal nut in the inside.   Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.   Our threaded insert is manufactured in Zamak alloy for rectangular tubes. It is also available for round tubes: LJMR, square tubes: LJM and for oval tubes: LJMO.   Our ribbed insert for square tubes has a metal nut inserted during the injection process. It is also available for rectangular tubes: LJZ, round: LJRL, and triangle tubes: LJZZ. Parts with greater   Our square reinforced tube insert has an hexagonal nut which is inserted during the injection process. The tube insert has an excellent finishing and a good resistance. It is suitable for our adjustable feet, please see our Adjustable feet section.   Our ribbed insert for rectangular tubes has a metal nut inserted during the injection process. It is also available for square tubes: LJ, round tubes LJRL, and triangle tubes: LJZZ. It is suitable with our adjustable feet group.
