Our threaded insert is manufactured in a Zamak alloy for round tubes. It is also available for square tubes: LJM, for rectangular tubes: LJMZ, and for oval tubes: LJMO. Our finishing parts LRR can be used for the inserts designed for 60 mm tubes.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness
Metric (M)
H
d
L



More
Info.
03200800009 32 1,50 M10 5,00 29,50 15,00
03200800010 32 2,00 M10 5,00 28,30 15,00
03200800011 38 1,50 M10 5,00 35,70 15,00
03200800012 38 2,00 M10 5,00 34,60 15,00
00300400415 60 2,00 M10 5,00 56,50 17,90

If you are interested in our family LJMR, you may be interested in these families as well:

Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.   Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.   The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º. If you are interested in the same part without movement, see our family LHVF. Available with allen socket in the screw head. If you want this part with anti-skid base, please visit our family LHVDZ.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   The LHVB adjustable feet are manufactured in <b>(ZCS)</b> Zinc Plated Steel and have a DIN 558-4.6-A2F <b>swivel</b> screw with a hexagonal base and an inclination range of between <b>10º and 13º</b>, according to reference. They offer a secure connection thanks to a T20 Torx screw (max. torque 3.4 Nm) that fixes the base with the screw. <br>
Regarding the base, there are two options depending on the reference: without holes and with two holes that allow it to be <b>screwed and firmly fixed to the ground</b> <i>(references ending in H)</i>.<br><br>
These feet can hold around <b>650 kg</b>, although we always recommend maintaining a safety margin. The feet must be adjusted without load and we do not recommend their use as sliders, but rather as static elements.<br><br>
If you need to protect the surface from possible scratches/bumps, we suggest attaching the protective cap <b><a href='
https://www.iscsl.co.uk/tilting-adjustable-foot-in-zinc-coated-steel/lkb/
'> LKB</a></b>, manufactured in <b>(LDPE)</b> Low-density polyethylene.<br><br>
We offer special configurations upon request:<br><br>
<i>* Other lengths and thread measurements</i>. <br>
<i>* Base in <b>(SS)</b> Stainless Steel</i>. <br>

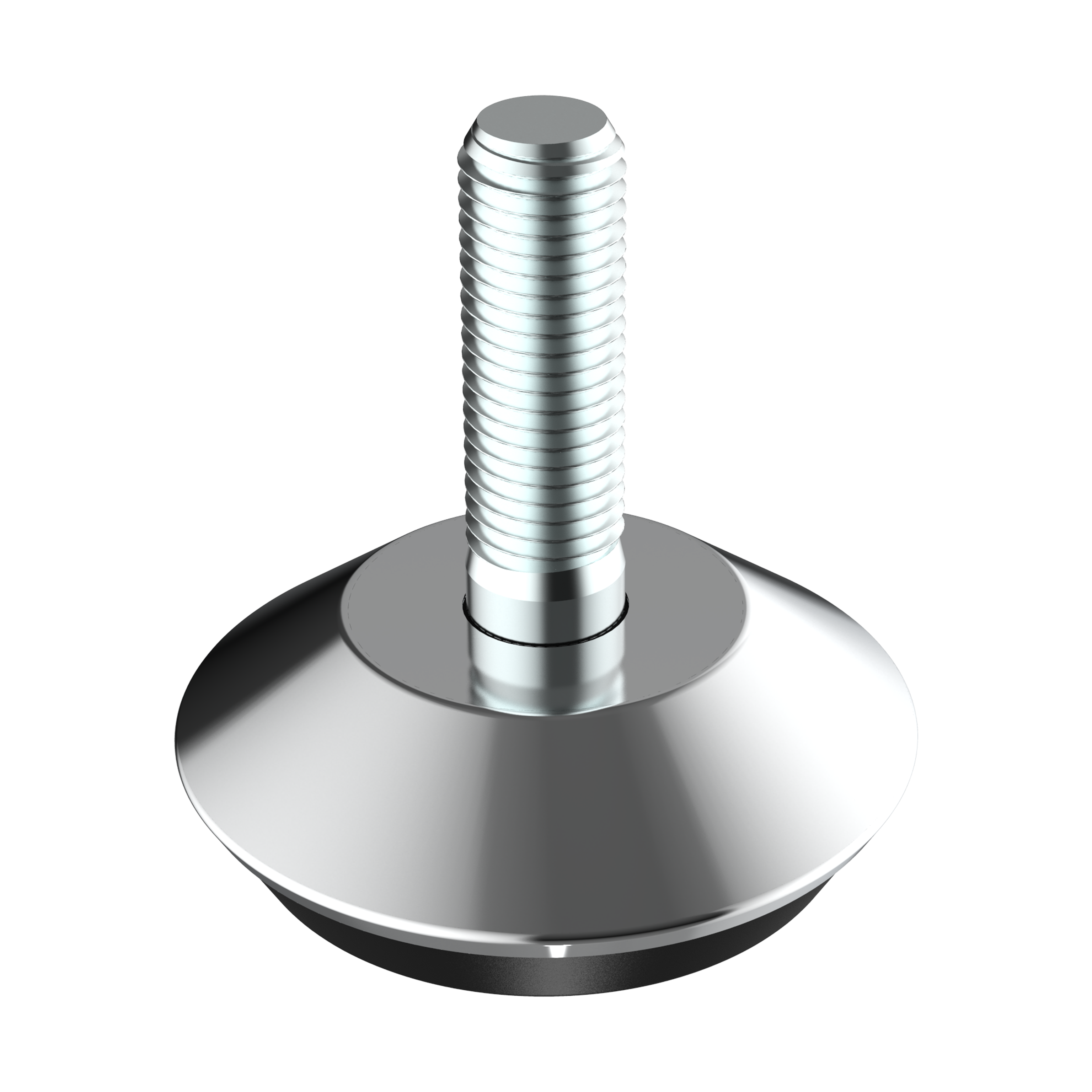

<i>* <b>Hexagonal slot</b> for Allen key at the upper end of the thread</i>.   Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.   Our heavy duty adjustable foot has a reinforced base that resists a weight up to 3,000 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with non-slip base.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request.   Our JTPZ <b>heavy duty adjustable fixed feet</b> have a reinforced base made of <b>glass-filled polyamide 6</b>, which allows them to support a weight of up to 781 kg depending on the reference. These levelers have been designed for use in applications that require a quality finish and good mechanical properties. It can be supplied with <b>anti-slip base</b> in <b>EPDM</b>.<br>
<br>
The standard thread is manufactured in <b>type 304 stainless steel</b> and, upon minimum order, we can manufacture it in <b>type 316</b>.
<br><br>
Levelers with stem length (L) equal to or greater than <b>71 mm</b> are supplied with an adjustment <b>nut</b>.   Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties.
<br>

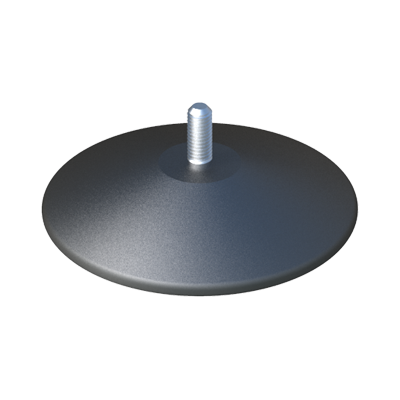

The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.   The part is available with movement, please visit our tilting adjustable foot MPG.   Our round adjustable foot has a steel cover. If you want the part without movement or tilting, please visit our family MNI.
