The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.

Material: PP - SS -ZCS
Standard colors: Steel / RAL colors manufactured
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Metric Thread (M)
L
D
H

PDF
3D IGS
Add
00301201025 M8 20,00 30,00 16,50
00301201026 M8 30,00 30,00 16,50
00301201027 M8 40,00 30,00 16,50
00301201028 M8 50,00 30,00 16,50
00301201029 M8 60,00 30,00 16,50
00301201030 M8 70,00 30,00 16,50
00301201031 M10 16,00 30,00 17,50
00301201032 M10 20,00 30,00 17,50
00301201033 M10 30,00 30,00 17,50
00301201034 M10 40,00 30,00 17,50
00301201035 M10 50,00 30,00 17,50
00301201036 M10 60,00 30,00 17,50
00301201037 M10 70,00 30,00 17,50
00301201038 M8 16,00 38,00 17,00
00301201039 M8 20,00 38,00 17,00
00301201040 M8 30,00 38,00 17,00
00301201041 M8 40,00 38,00 17,00
00301201042 M8 50,00 38,00 17,00
00301201043 M8 60,00 38,00 17,00
00301201044 M8 70,00 38,00 17,00
00301201045 M10 16,00 38,00 18,00
00301201046 M10 20,00 38,00 18,00
00301201047 M10 30,00 38,00 18,00
00301201048 M10 40,00 38,00 18,00
00301201049 M10 50,00 38,00 18,00
00301201050 M10 60,00 38,00 18,00
00301201051 M10 70,00 38,00 18,00
00301201052 M8 16,00 48,00 17,00
00301201053 M8 20,00 48,00 17,00
00301201054 M8 30,00 48,00 17,00
00301201055 M8 40,00 48,00 17,00
00301201056 M8 50,00 48,00 17,00
00301201057 M8 60,00 48,00 17,00
00301201058 M8 70,00 48,00 17,00
00301201059 M10 16,00 48,00 18,00
00301201060 M10 20,00 48,00 18,00
00301201061 M10 30,00 48,00 18,00
00301201062 M10 40,00 48,00 18,00
00301201063 M10 50,00 48,00 18,00
00301201064 M10 60,00 48,00 18,00
00301201065 M10 70,00 48,00 18,00
00301201024 M8 16,00 30,00 16,50

If you are interested in our family LHDE, you may be interested in these families as well:

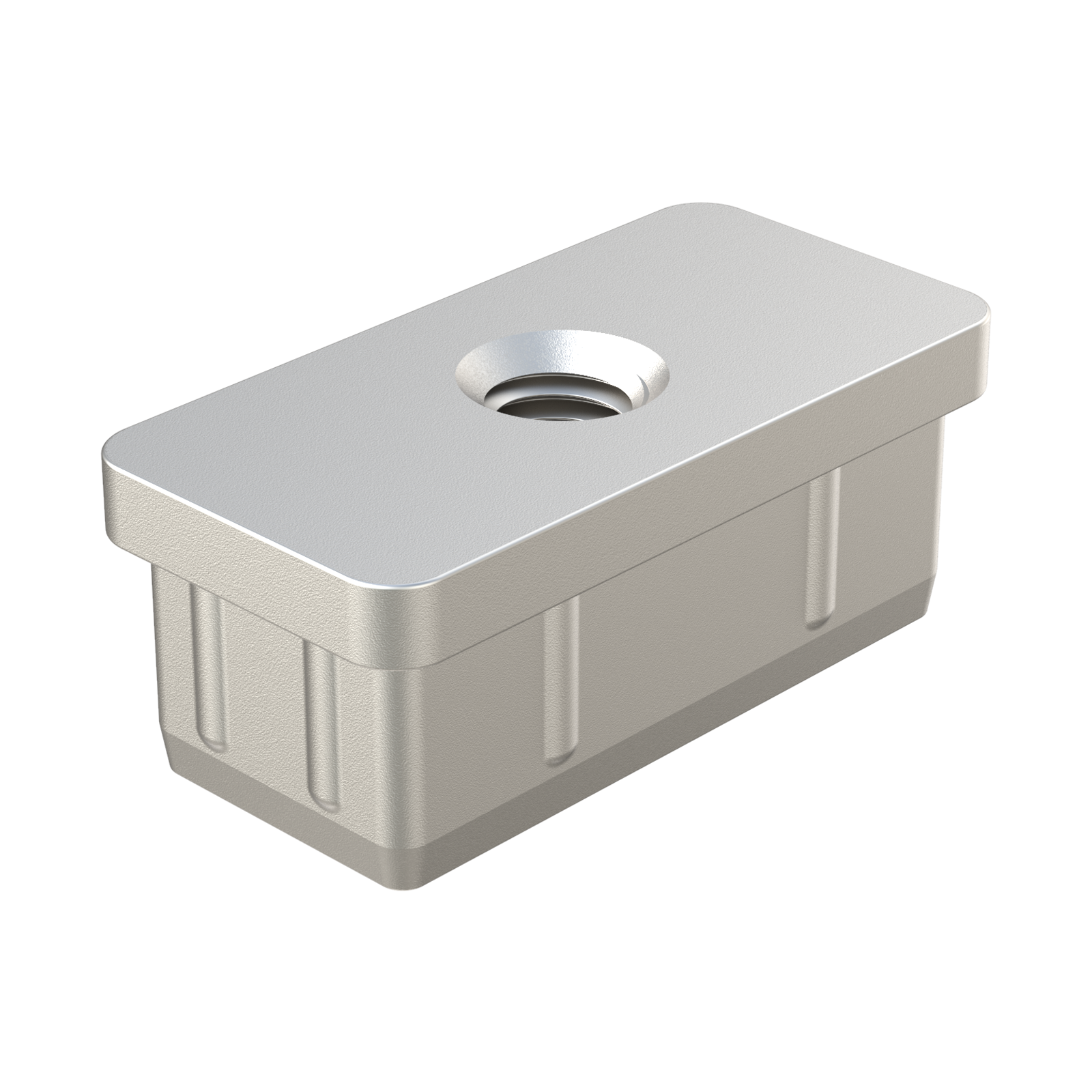

Our threaded insert is manufactured in Zamak alloy for rectangular tubes. It is also available for round tubes: LJMR, square tubes: LJM and for oval tubes: LJMO.

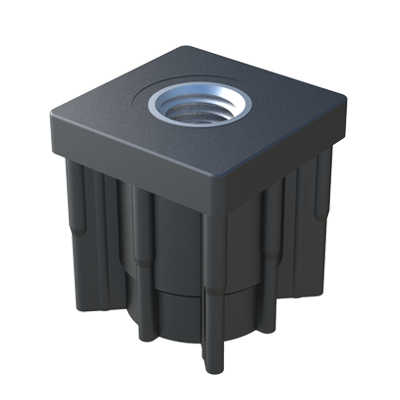

Our square reinforced tube insert has an hexagonal nut which is inserted during the injection process. The tube insert has an excellent finishing and a good resistance. It is suitable for our adjustable feet, please see our Adjustable feet section.

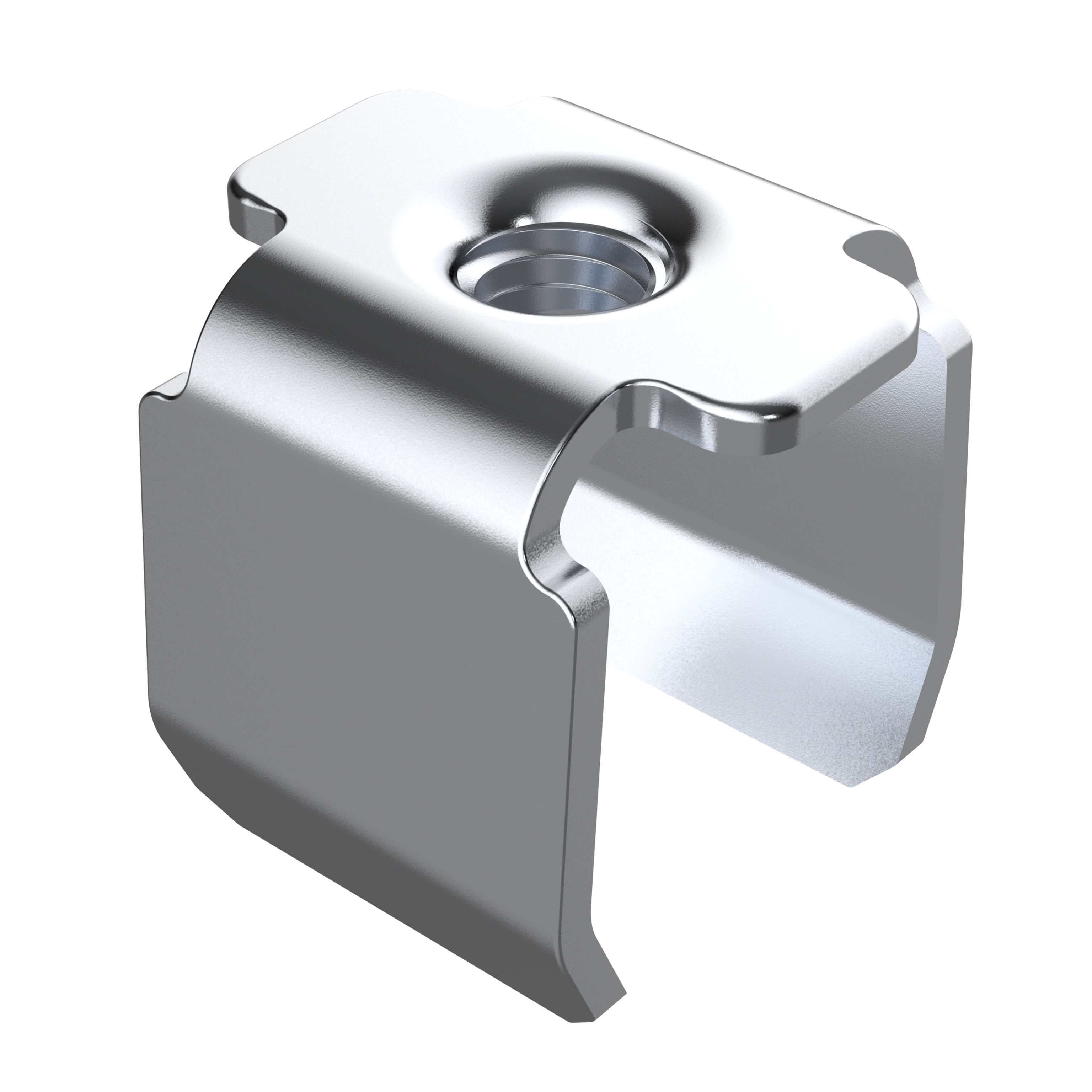

Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.

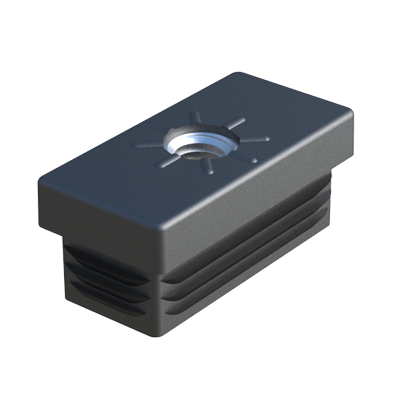

Our ribbed insert for square tubes has a metal nut inserted during the injection process. It is also available for rectangular tubes: LJZ, round: LJRL, and triangle tubes: LJZZ. Parts with greater "h" dimension (nut insertion height), are recommended for heavy-duty applications.
Our ribbed insert for rectangular tubes has a metal nut inserted during the injection process. It is also available for square tubes: LJ, round tubes LJRL, and triangle tubes: LJZZ. It is suitable with our adjustable feet group.

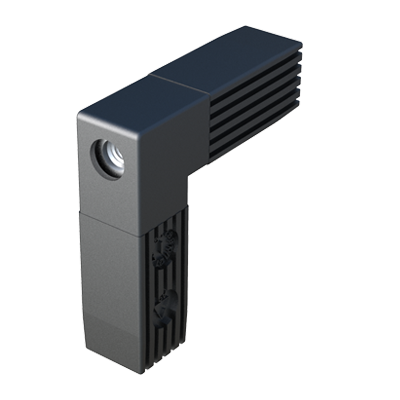

Our elbow connector has been designed for square tubes. It is supplied without internal core, with an internal core in steel, or in zinc coated steel. It has a thread of M8 or M10, depending on the reference.
