Our ribbed insert for rectangular tubes has a metal nut inserted during the injection process. It is also available for square tubes: LJ, round tubes LJRL, and triangle tubes: LJZZ. It is suitable with our adjustable feet group.
  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LJZ
LJZ

Reference
For Tube
Tube Thickness
Metric Thread
h / L
D x B
H
d x b
d1 x b1



More
Info.
00300400331 30 x 20 1,50 M10 5,00 / 20,00 29,90 x 20,20 5,00 24,10 x 14,50 28,20 x 18,50
00300400335 40 x 20 1,50 M10 5,00 / 15,50 40,50 x 20,50 8,00 35,00 x 15,00 39,10 x 18,60
00300400337 50 x 25 1,50 M10 5,00 / 13,00 50,00 x 25,10 8,00 45,40 x 19,40 49,50 x 23,50
00300400338 50 x 40 1,50 M10 5,00 / 17,00 50,00 x 40,10 6,50 44,50 x 34,50 47,90 x 37,90
00300400339 60 x 30 1,50 M10 5,00 / 13,50 60,20 x 30,20 6,00 54,70 x 24,70 57,80 x 28,00

If you are interested in our family LJZ, you may be interested in these families as well:

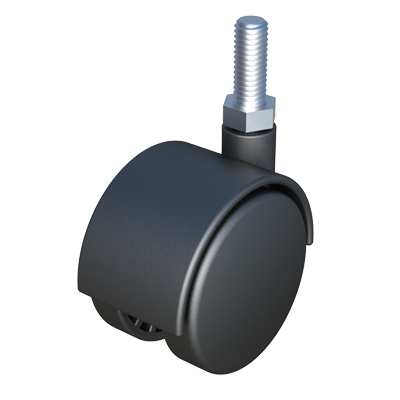

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   <p>Our <b>LKR adjustable foot</b> features a <b>knurled base</b> to facilitate handling during adjustment, installation or replacement.</p> <p>M5 versions are manufactured in <b>LDPE</b>, while the remaining sizes are produced in <b>PA6</b>. The threaded stud is made of <b>zinc-plated steel</b>.</p> <p>Suitable for industrial applications, technical furniture and shop fittings where levelling with metric thread is required.</p> <p>· <b>Metric thread:</b> M5, M6, M8 and M10<br> · <b>Base diameter:</b> 20 to 45 mm<br> · <b>Length:</b> 16 to 56 mm</p>   <p>Our <b>LKR adjustable foot</b> features a <b>knurled base</b> to facilitate handling during adjustment, installation or replacement.</p> <p>M5 versions are manufactured in <b>LDPE</b>, while the remaining sizes are produced in <b>PA6</b>. The threaded stud is made of <b>zinc-plated steel</b>.</p> <p>Suitable for industrial applications, technical furniture and shop fittings where levelling with metric thread is required.</p> <p>· <b>Metric thread:</b> M5, M6, M8 and M10<br> · <b>Base diameter:</b> 20 to 45 mm<br> · <b>Length:</b> 16 to 56 mm</p>   Our round adjustable foot has a steel cover. If you want the part without movement or tilting, please visit our family MNI.
