Square threaded tube insert - ISC Plastic Parts

Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	Metric Thread	H	L	Type							More Info.

00300410117	25 x 25	1,50 to 2,50	M8	2,00	28,00	B
00300410070	30 x 30	1,50 to 2,50	M10	2,20	30,00	A
00300410118	40 x 40	1,50 to 2,50	M10	2,50	30,00	A

If you are interested in our family LJMS, you may be interested in these families as well:

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.

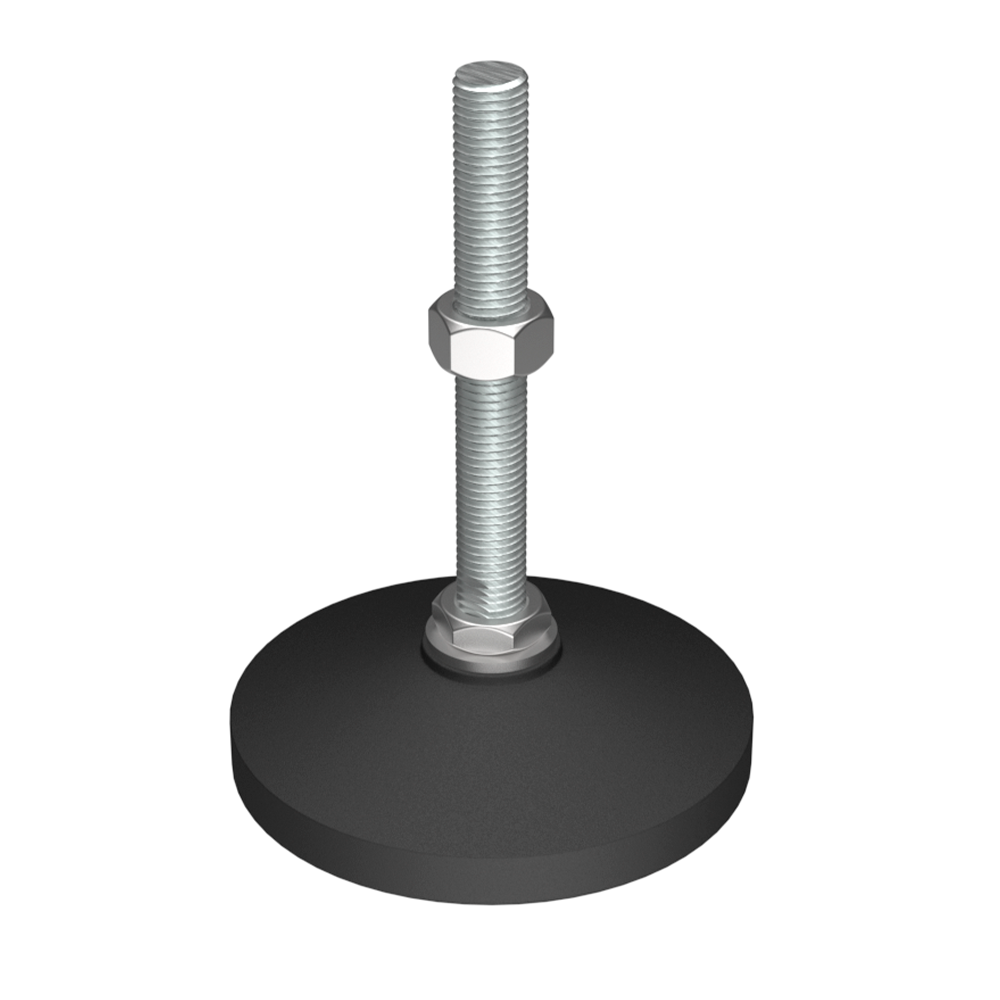

Our JTPS leveling feet feature a reinforced base that withstands loads up to <b>29430 N</b>.<br><br>This leveling foot is designed for applications requiring a clean finish and strong mechanical properties. It can be supplied with a <b>non-slip base</b>.<br><br>The standard version is made of <b>Type 304 stainless steel</b>, and we can manufacture it in Type 316 upon request.

Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.
