Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness
Metric Thread
h
H
d
d1
L



More
Info.
00300400527 22 1,50 to 2,00 M8 6,30 4,00 15,00 20,00 26,00
00300400528 25 1,50 to 2,00 M8 6,30 4,00 17,00 22,50 26,00
00300401111 25 3,00 to 3,50 M8 6,30 4,00 15,00 20,00 26,00
00300400529 28 1,50 to 2,00 M8 6,30 4,00 21,00 25,50 26,00
00300400530 28 1,50 to 2,00 M10 8,00 4,00 21,00 25,50 26,00
00300401112 28 3,00 to 3,50 M8 6,30 4,00 17,00 22,50 26,00
00300400531 30 1,50 to 2,00 M8 6,30 4,00 23,00 27,50 26,00
00300400532 30 1,50 to 2,00 M10 8,00 4,00 23,00 27,50 26,00
00300400883 30 2,00 to 2,50 M8 6,30 4,00 22,70 26,50 26,00
00300400884 30 2,00 to 2,50 M10 8,00 4,00 22,70 26,50 26,00
00300400533 32 1,50 M8 6,30 4,00 25,00 29,50 25,50
00300400534 32 1,50 M10 8,00 4,00 25,00 29,50 26,00
00300400891 32 2,00 to 2,50 M8 6,30 4,00 24,50 28,50 25,50
00300400885 32 2,00 to 2,50 M10 8,00 4,00 25,00 28,50 26,00
00300400535 35 1,50 M8 6,30 4,00 28,00 32,50 25,50
00300400536 35 1,50 M10 8,00 4,00 28,00 32,50 25,80
00300400892 35 2,00 to 2,50 M8 6,30 4,00 28,00 31,50 25,50
00300400886 35 2,00 to 2,50 M10 8,00 4,00 28,00 31,50 25,50
00300401118 35 3,50 to 4,00 M8 6,30 4,00 24,60 28,50 25,50
00300401119 35 3,50 to 4,00 M10 8,00 4,00 25,00 28,50 25,50
00300400537 38 1,50 M8 6,30 4,00 30,50 36,00 25,50
00300400539 38 1,50 M10 8,00 4,00 30,00 36,00 25,50
00300400538 38 2,00 to 2,50 M8 6,30 4,00 31,00 34,80 25,50
00300400887 38 2,00 to 2,50 M10 8,00 4,00 31,00 34,80 25,50
00300400540 40 1,50 M8 6,30 4,50 33,00 37,50 25,00
00300400541 40 1,50 M10 8,00 4,50 33,00 37,50 25,00
00300400893 40 2,00 to 2,50 M8 6,30 4,50 32,50 36,50 25,50
00300401120 40 2,00 to 2,50 M10 8,00 4,50 32,50 36,50 25,50
00300401121 40 3,00 to 3,50 M8 6,30 4,50 31,00 34,80 25,50
00300401122 40 3,00 to 3,50 M10 8,00 4,50 31,00 34,80 25,50
00300400543 42 1,50 M8 6,30 4,00 35,00 39,50 26,00
00300400544 42 1,50 M10 8,00 4,00 35,00 39,50 26,00
00300400894 42 2,00 to 2,50 M8 6,30 4,00 35,00 38,50 25,50
00300400888 42 2,00 to 2,50 M10 8,00 4,00 35,00 38,50 25,50
00300401123 42 3,00 to 3,50 M8 6,30 4,00 32,00 36,50 25,50
00300401124 42 3,00 to 3,50 M10 8,00 4,00 32,50 36,50 25,50
00300401125 42 4,00 to 4,50 M8 6,30 4,00 31,00 34,80 25,50
00300400545 45 1,50 M8 6,30 4,00 31,00 34,80 26,00
00300400546 45 1,50 M10 8,00 4,00 38,00 42,50 26,00
00300400895 45 2,00 to 2,50 M8 6,30 4,00 38,00 41,50 26,00
00300400889 45 2,00 to 2,50 M10 8,00 4,00 38,00 41,50 26,00
00300401128 45 3,00 M10 8,00 4,00 35,00 39,50 25,50
00300401131 50 1,50 M8 6,30 4,00 43,00 47,50 26,00
00300400547 50 1,50 M10 8,00 4,00 43,00 47,50 26,00
00300401134 50 2,00 to 2,50 M8 6,30 4,00 42,50 46,50 26,00
00300400890 50 2,00 to 2,50 M10 8,00 4,00 43,50 46,50 26,00
00300401132 50 4,00 M8 6,30 4,00 38,00 42,50 25,50
00300401133 50 4,00 M10 8,00 4,00 38,00 42,50 25,50
00300400548 54 1,50 M10 8,00 4,00 46,50 50,50 26,00
00300400549 54 2,00 to 2,50 M10 8,00 4,00 46,50 50,50 26,00
00300401141 55 2,00 to 2,50 M8 6,30 4,00 47,50 51,50 26,00
00300400550 55 2,00 to 2,50 M10 8,00 4,00 47,50 51,50 26,00
00300400712 60 1,50 M8 6,30 4,00 53,00 57,50 26,00
00300400551 60 1,50 M10 8,00 4,00 53,00 57,50 26,00
00300401142 60 2,00 to 2,50 M8 6,30 4,00 53,00 56,50 26,00
00300400552 60 2,00 to 2,50 M10 8,00 4,00 53,00 56,50 26,30
00300401145 70 3,00 M8 6,30 4,00 61,00 64,50 26,00
00300400553 70 3,00 M10 8,00 4,00 61,00 64,50 25,50

If you are interested in our family LJRL, you may be interested in these families as well:

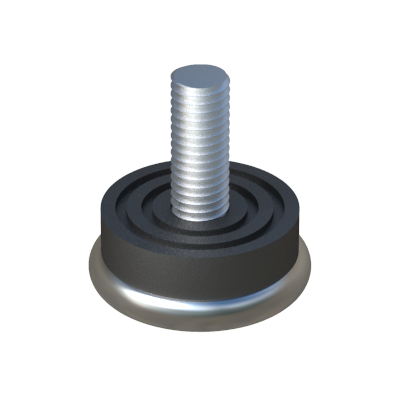

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Our adjustable foot has a decorative round base.   Our cable organizer is fits for 60mm / 80mm diameter drill and suitable for tables, wood paneling, cabinets, screens, etc. The grommets include 2 pieces that are assembled after the injection. The ring is made of ABS and the inside grommet is made of TPE, thus providing resistance for assembly and flexibility inside (rubbery touch).   The AKAAH adjustable feet have a nickeled steel base (NS) or a stainless steel base A2 (SS) , if necessary. The plastique base is made of PVC, and the screw is made of zinc coated steel (ZCS).   Our saddle foot for round tubes has a snap-in central peg in order to block rotation and movement.   It is available in LDPE or PA6, depending on the reference. With the ones manufactured in PELD the felt is overinjected, and with the ones in PA6 the felt is assembled after the injection process. It is also available without felt, see our family LL.   This <b>safety cap for screws</b> is ideal for playgrounds and other applications that require the screw to remain hidden and non-detachable. With a rounded and attractive design, base and cover are supplied separately, so combinations of colors can be made and, in the case of a minimum order quantity, customized colors can be ordered on demand. The manufacturing material is a PP Homopolymer (polypropylene) with a <b>very high impact module that makes it highly resistant to impacts even at temperatures of -20ºC</b>. It also has a <b>UVA additive to prevent degradation due to sunlight and weather</b>.
