Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.

  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

JTPU
JTPU

Reference
For Tube
Tube Thickness
Metric (M)
D
d
L
H
Maximum Weight (Kgs.)



More
Info.
01200100297 40 2,00 to 3,00 M8 40,10 34,00 20,00 8,00 800
01200100298 40 2,00 to 3,00 M10 40,30 33,90 28,00 8,00 800
01200100299 40 2,00 to 3,00 M12 40,30 33,90 28,00 8,00 800
01200100308 48 1,50 M10 48,30 45,90 44,00 8,00 1.000
01200100309 48 1,50 M12 48,30 45,90 44,00 8,00 1.000
01200100310 48 1,50 M14 48,30 45,90 44,00 8,00 1.000
01200100311 48 1,50 M16 48,30 45,90 44,00 8,00 1.000
01200100312 48 1,50 M20 48,30 45,90 44,00 8,00 1.000
01200100321 60 1,50 M14 60,30 57,90 44,00 8,00 1.500
01200100322 60 1,50 M16 60,30 57,90 44,00 8,00 1.500
01200100323 60 1,50 M20 60,30 57,90 44,00 8,00 1.500
01200100324 60 1,50 M24 60,30 57,90 44,00 8,00 1.500
01200100317 60 2,00 M14 60,30 56,90 44,00 8,00 1.500
01200100318 60 2,00 M16 60,30 56,90 44,00 8,00 1.500
01200100319 60 2,00 M20 60,30 56,90 44,00 8,00 1.500
01200100320 60 2,00 M24 60,30 56,90 44,00 8,00 1.500
01200100313 60 2,50 M14 60,30 55,90 44,00 8,00 1.500
01200100314 60 2,50 M16 60,30 55,90 44,00 8,00 1.500
01200100315 60 2,50 M20 60,30 55,90 44,00 8,00 1.500
01200100316 60 2,50 M24 60,30 55,90 44,00 8,00 1.500

If you are interested in our family JTPU, you may be interested in these families as well:

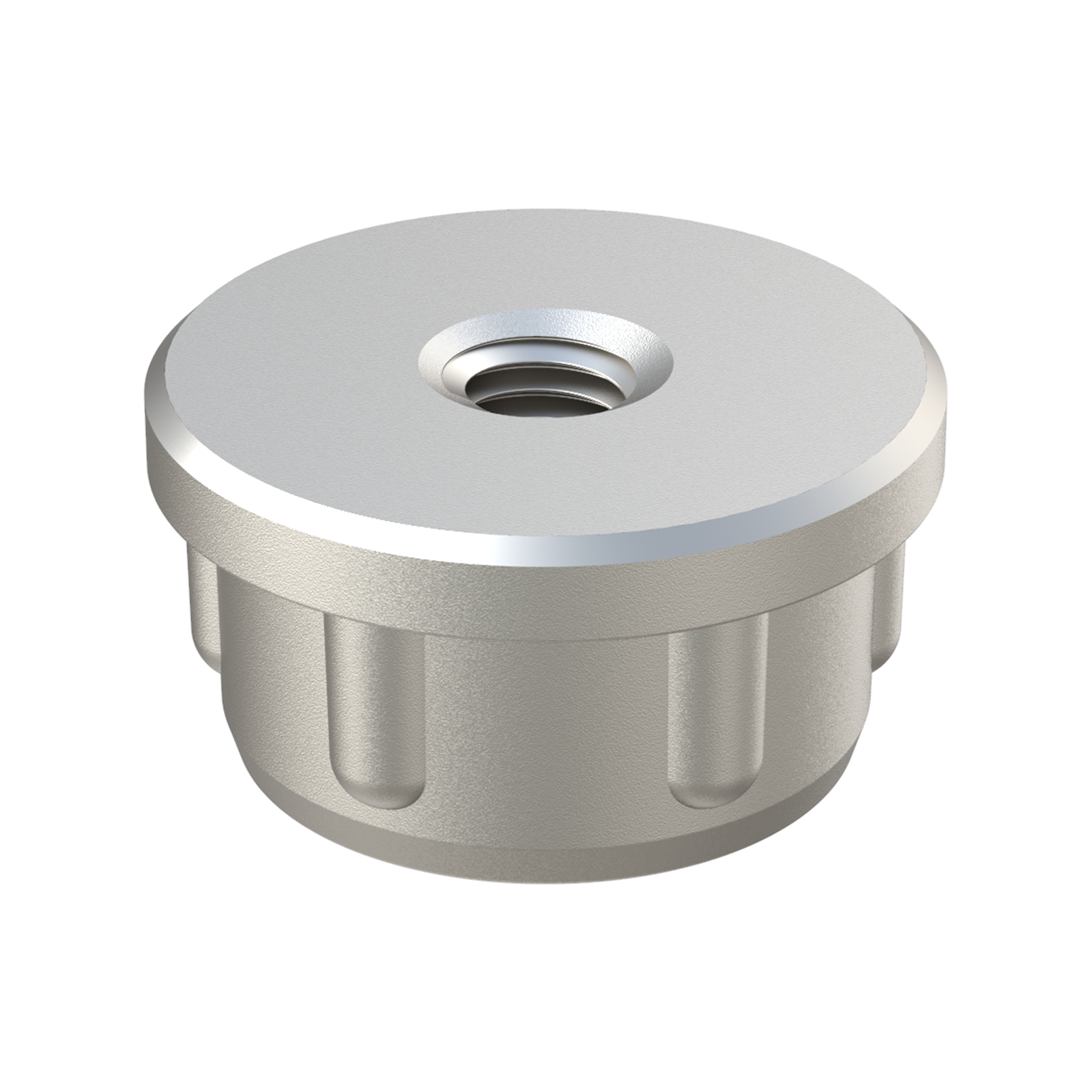

Our <b>reinforced and threaded</b> LJMR inserts for round tubes are made of <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target='_top' >LJMZ</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo/'target ='_top'>LJMO</a></b>   Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. <br> The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.   Our LHVL leveling feet, made of zinc-plated steel, are designed for use in <b>machinery applications</b> and withstand a load of up to <b>30,000 N</b>. Load values are calculated under static conditions and at half the screw length. In the presence of vibrations or dynamic loads, these values must be reduced.<br> The base has <b>4 holes</b> with a diameter of 12.50 mm, allowing it to be screwed to the floor. Additionally, the thread has an <b>8º tilt</b> to compensate for floor unevenness.<br> Each reference is available with a <b>non-slip base made of vulcanized NBR rubber, 80 Shore</b>. This base can be drilled to use the fixing holes.<br> We can also supply a <b>hex nut to secure the shaft and prevent tilting</b>. This option is only available for variants without a non-slip base (type 1). Please contact our sales department if you are interested.   Our LHVL leveling feet, made of zinc-plated steel, are designed for use in <b>machinery applications</b> and withstand a load of up to <b>30,000 N</b>. Load values are calculated under static conditions and at half the screw length. In the presence of vibrations or dynamic loads, these values must be reduced.<br> The base has <b>4 holes</b> with a diameter of 12.50 mm, allowing it to be screwed to the floor. Additionally, the thread has an <b>8º tilt</b> to compensate for floor unevenness.<br> Each reference is available with a <b>non-slip base made of vulcanized NBR rubber, 80 Shore</b>. This base can be drilled to use the fixing holes.<br> We can also supply a <b>hex nut to secure the shaft and prevent tilting</b>. This option is only available for variants without a non-slip base (type 1). Please contact our sales department if you are interested.   Our JTPP leveling feet have a reinforced base with a maximum tilt of <b>15º</b>. They withstand loads up to <b>14,500 N</b>.<br><br>This leveling foot is designed for applications requiring a good finish and strong mechanical properties. It can be supplied with a <b>non-slip base</b>.<br><br>The standard version is made of <b>Type 304 stainless steel</b>, and we can manufacture it in Type 316 upon request.
