Oval tube insert adjustable connector - ISC Plastic Parts

Our LJEO oval inserts are available with and without a steel nut and are ideal for adapting a leveling foot. There is the possibility of supplying it with a DIN985 nut and they can be manufactured in special colors beyond the standard black. For further details on this, please consult our commercial department.

RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube (DxB)	Tube Thickness (C)	L1	L	H								More Info.

00300400469	30 x 15	1,50	15,00	30,00	5,00
00300400471	50 x 25	2,00	22,00	36,00	5,00
00300400472	50 x 25	2,00	22,00	36,50	5,00
00300400473	60 x 30	2,00	22,00	36,00	5,00

If you are interested in our family LJEO, you may be interested in these families as well:

<p>Our <b>LKR adjustable foot</b> features a <b>knurled base</b> to facilitate handling during adjustment, installation or replacement.</p>

<p>M5 versions are manufactured in <b>LDPE</b>, while the remaining sizes are produced in <b>PA6</b>. The threaded stud is made of <b>zinc-plated steel</b>.</p>

<p>Suitable for industrial applications, technical furniture and shop fittings where levelling with metric thread is required.</p>

<p>· <b>Metric thread:</b> M5, M6, M8 and M10<br>
· <b>Base diameter:</b> 20 to 45 mm<br>
· <b>Length:</b> 16 to 56 mm</p>

Our adjustable foot with a hexagonal screw for easier fitting.

<p>Our <b>LHVFB levelling feet</b> with round base are manufactured in <b>Polyamide 6 (PA6)</b> and include a nut integrated into the body for height adjustment using an adjustable wrench. The thread is manufactured in <b>Zinc-Plated Steel (ZCS)</b>.</p>

<p>Available with different base configurations depending on the reference: Type 1 with hollow base, Type 2 with flat base, Type 3 with concentric braking grooves, and Type 4 with cross recess for easier levelling.</p>

<p>· <b>Material:</b> PA6 with Zinc-Plated Steel (ZCS) thread<br>
· <b>Available finishes:</b> Polished/gloss or textured/matte<br>
· <b>Options:</b> Stainless Steel (SS) version and Allen socket</p>

<p><i>Static axial load capacity varies depending on the reference. For further information and special configurations, please contact our sales department.</i></p><i>*Polished/bright or eroded/matte finish.</i><br>
<i>*Supplied with Allen housing at the thread end.</i><br>
<i>*Manufactured in Stainless Steel (SS).</i><br><br>
For more details, contact our sales department.<br>

The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.

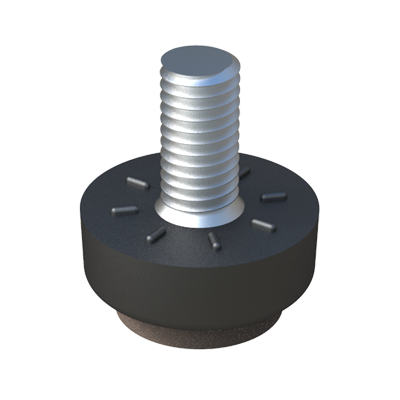

Our adjustable foot is available without felted base (and in M6 size), please visit our family LK.
