Adjustable foot for heavy duty - ISC Plastic Parts

Our adjustable foot has been designed for heavy duty. It resists up to 2035kg.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Metric Thread (M)	L	D	H	Max. Tilting degree (W)			Maximum Weight (Kgs.)					More Info.

00301201676	M16	100,00	124,00	23,50	8º			2.035
00301201677	M16	150,00	124,00	23,50	8º			2.035
00301201678	M20	100,00	124,00	23,50	8º			2.035
00301201679	M20	150,00	124,00	23,50	8º			2.035
00301201679	M20	150,00	124,00	23,50	8º			2.035
00301201680	M20	175,00	124,00	23,50	8º			2.035
00301201681	M20	200,00	124,00	23,50	8º			2.035
00301201682	M24	100,00	124,00	19,90	8º			2.035
00301201683	M24	200,00	124,00	23,50	8º			2.035

If you are interested in our family LHVL, you may be interested in these families as well:

Our <b>reinforced and threaded</b> LJMZ inserts for rectangular tubes are made of <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br>

Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo/'target ='_top'>LJMO</a></b>

Our threaded tube insert is manufactured in ZCS. It is also available for square tubes, please visit our family LJMS.

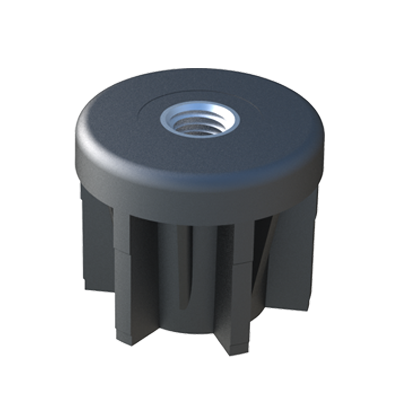

Our reinforced pipe ends with thread for round tubes have been designed for applications that must be highly resistant. The threaded insert is made of Nickel Plated Brass. It is also available in Stainless Steel. For other dimensions that do not appear in the list, contact us.

Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.

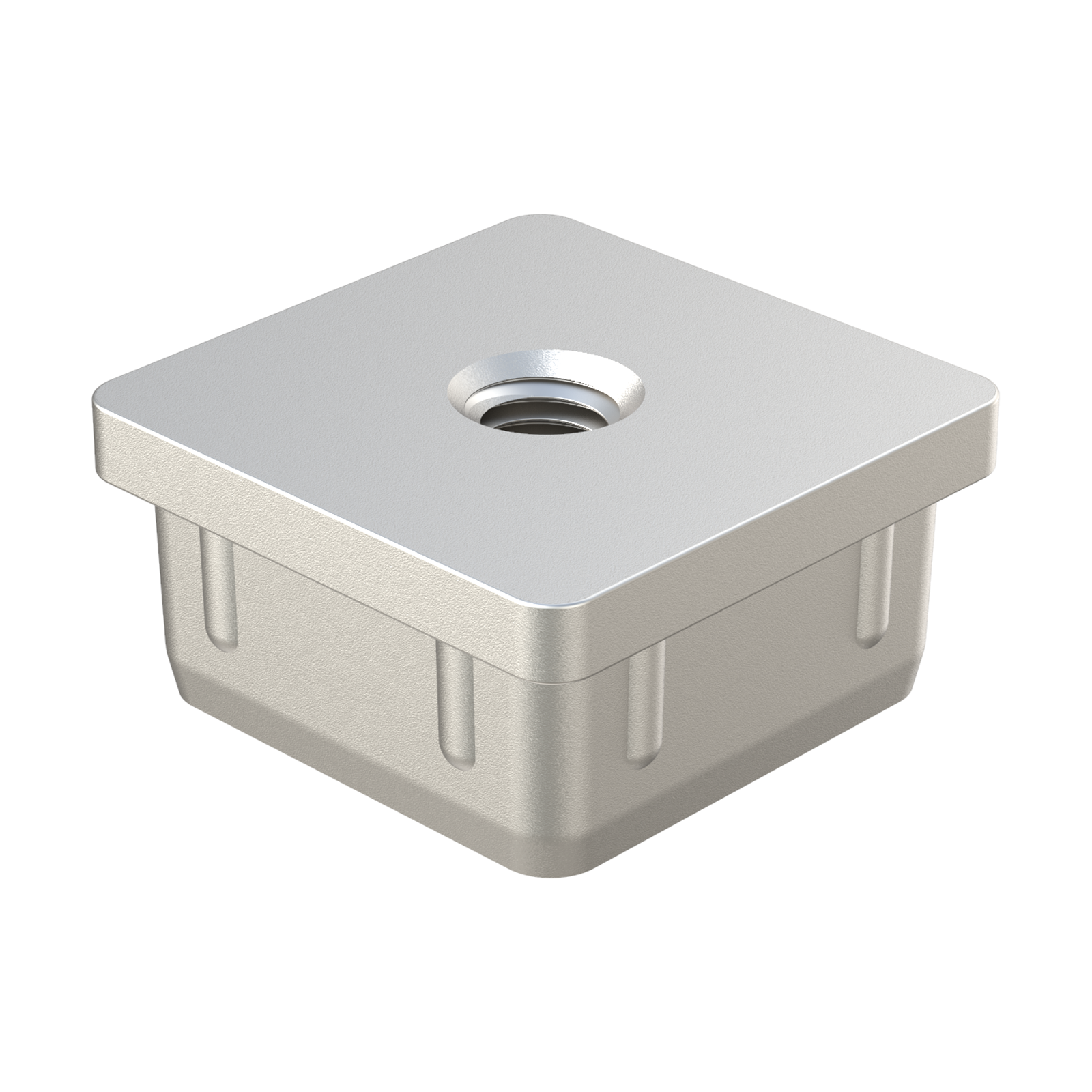

Our <b>reinforced and threaded</b> LJM inserts for square tubes are made of a <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br>

Available for: Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top'>LJMR</ a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target='_top' >LJMZ</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo//'target ='_top'>LJMO</a></b>

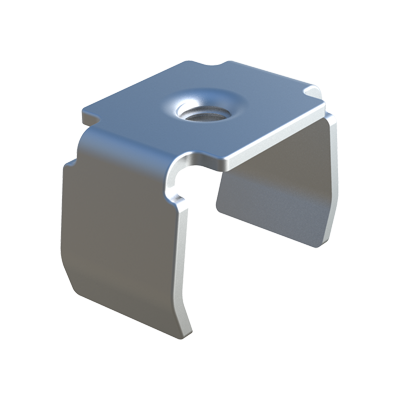

Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.

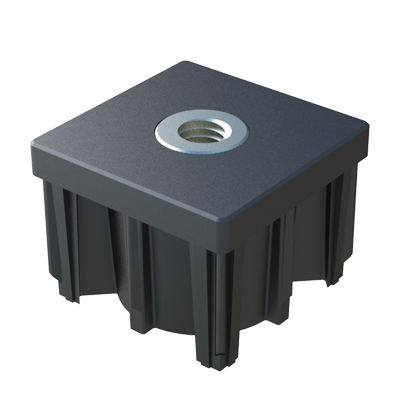

The square threaded reinforced tube inserts JTPOA are made of <b>glass fiber reinforced polyamide</b> (PA6630%GF), a material that offers <i>excellent resistance</i>. While the <i>nuts</i> are made of <b>nickel-plated brass</b> (NB) and <b>304 stainless steel</b> (SS).<br>
<br>
These inserts are ideal for applications that require supporting high weights, as they reach resistances from <i>560 to almost 1,000 kilograms</i>.

Our <b>reinforced and threaded</b> LJMZ inserts for oval tubes are made of a <b>Zamak</b>. <br><br>

Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target ='_top'>LJMZ</a></b>
