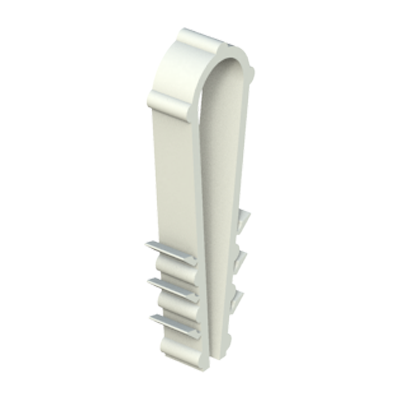

The wire and tube retaining strap has to be fixed into a 6.35 mm hole. The other side simply inserts the pin end into the receiver end. The wire or tube is secured in place without screws.

Material: PA66
Standard colors: Natural - Black
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Panel hole size
Panel Thickness
Maximum cable bundle
L
A
D
H
E/H1

PDF
3D IGS
Add
00101100181 6,35 0,25 to 1,90 7,93 48,39 38,86 9,53 11,94 1,98 / 8,69
00101100182 6,35 0,25 to 1,90 9,52 53,47 43,94 9,53 11,94 1,98 / 8,69
00101100183 6,35 0,25 to 1,90 11,10 58,55 49,02 9,53 11,94 1,98 / 8,69
00101100184 6,35 0,25 to 1,90 12,70 64,21 54,10 9,53 11,94 1,98 / 8,69
00101100185 6,35 0,25 to 1,90 14,28 69,47 59,94 9,53 11,94 1,98 / 8,69
