Our loop fastener is a U-shaped blind fastener for installation of pipes or cables on a wall or ceiling. Slip U-shaped fastener over wire or tube and push into drilled hole.

Material: HDPE
Standard colors: Natural
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Panel hole size
D
A
B
L

PDF
3D IGS
Add
00101100535 6,35 7,37 1,14 4,75 36,20

If you are interested in our family MQAD, you may be interested in these families as well:

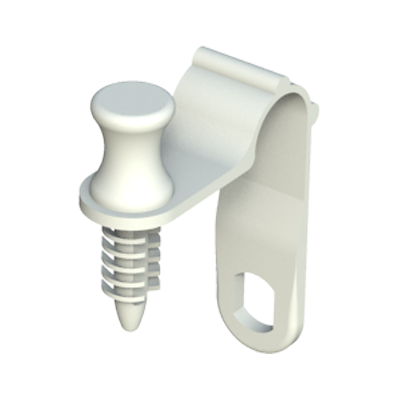

The wire and tube retaining strap has to be fixed into a 6.35 mm hole. The other side simply inserts the pin end into the receiver end. The wire or tube is secured in place without screws.   Our quick cable clamps are designed for one-handed installation. The design features an integrated ratchet fastener which eliminates the need for a screw or other fastener. The part is self-aligning, and the built-in handle allows for quick and easy installation without tools. The parts are suitable for many different wire, cable, or tubing routing applications.
