Our quick cable clamps are designed for one-handed installation. The design features an integrated ratchet fastener which eliminates the need for a screw or other fastener. The part is self-aligning, and the built-in handle allows for quick and easy installation without tools. The parts are suitable for many different wire, cable, or tubing routing applications.

Material: PA66
Standard colors: Natural - Black
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Panel Hole Size
Maximum diameter
Panel thickness
A
B
C

PDF
3D IGS
Add
00101100177 4,75 6,35 1,0 a 8,0 9,53 13,41 9,53
00101100178 4,75 7,94 1,0 a 8,0 9,53 13,41 9,53
00101100179 4,75 9,53 1,0 a 8,0 9,53 13,41 9,53
00101100180 4,75 11,10 1,0 a 8,0 9,53 13,41 9,53

If you are interested in our family MARR, you may be interested in these families as well:

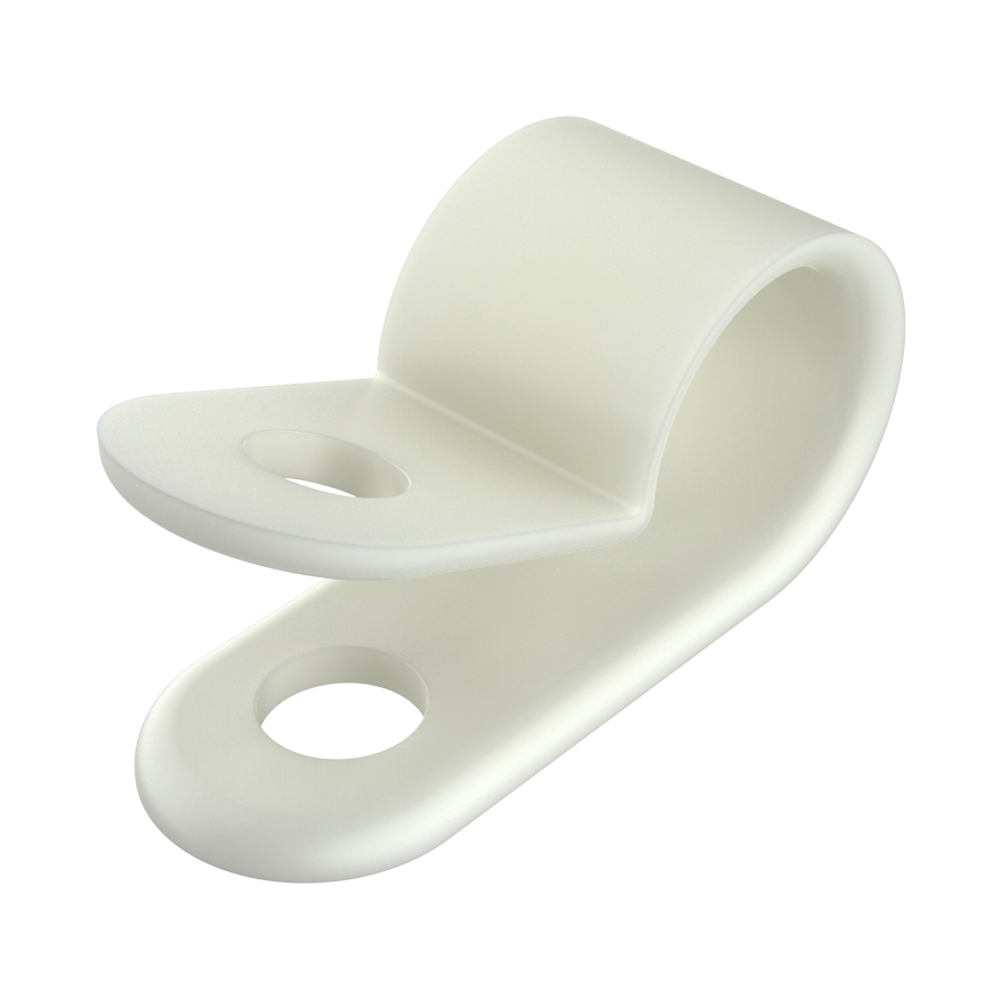

Our cable clamps secure, insulate and route cable, wiring, tubing, piping and fibre optics. These tough, durable, chemical resistant nylon cable clamps are perfect for applications in electronics, automotive, aircraft, appliance and many other industries. Upon request it can be supplied in other materials.

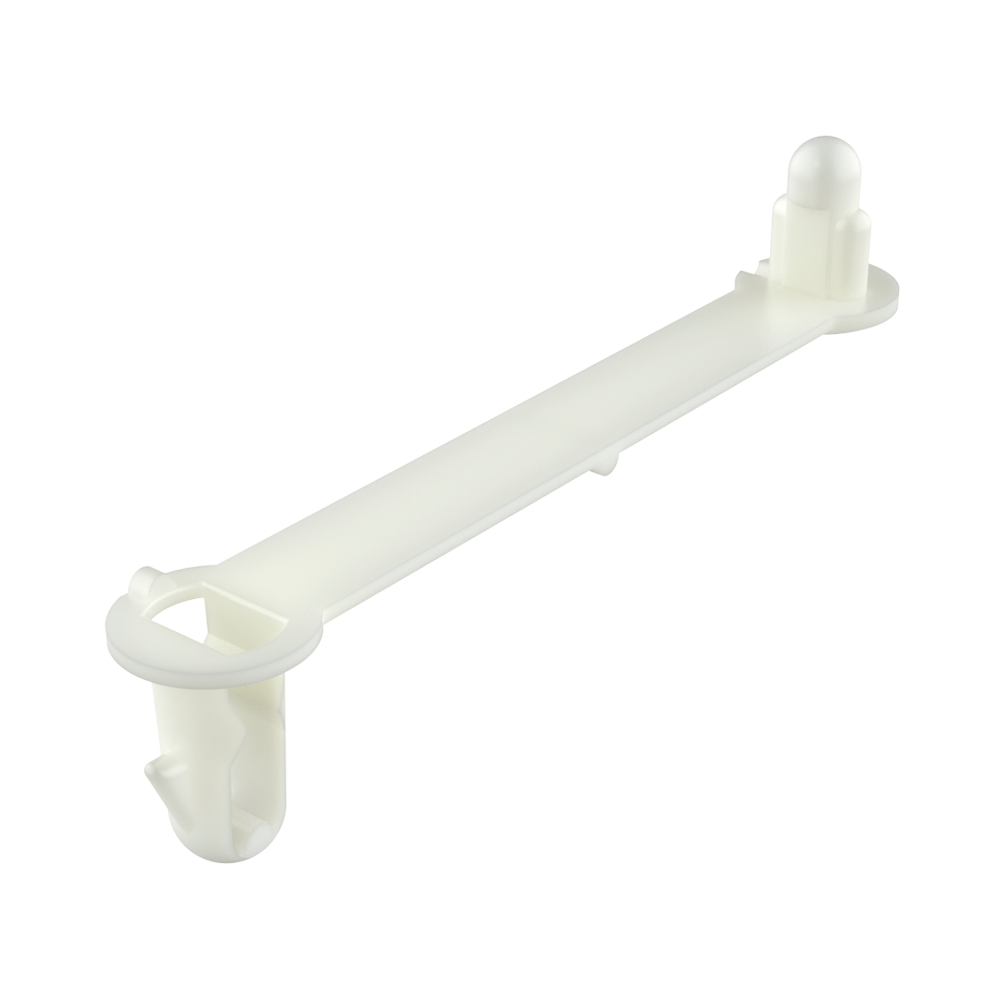

The wire and tube retaining strap has to be fixed into a 6.35 mm hole. The other side simply inserts the pin end into the receiver end. The wire or tube is secured in place without screws.
