LSL inserts are designed to ensure a good hold, an easy assembly, and a minimalist finish due to the rounded shape of their head. They are used to seal tubes and/or various holes that do not have to withstand great mechanical stress, and are not recommended as an alternative to gliders on chairs and/or furniture.
For its use as a sliding insert, and to achieve easy assembly on tubes with greater wall thickness, we recommend chamfering the inner diameter of the tube (approx. 0.3 - 0.5 x 60°).
Special colours, company logo and manufacturing with TPE material (slip-resistant, noise-reducing and resistant to a higher temperature range), can be requested on request, please contact us.
For technical production reasons, a residual sprue may exceed the L dimension. Depending on the selected article, the surface finish may vary between polished and eroded.

  RAL colors manufactured


Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:

LSL
LSL

Reference
For Tube (D)
Tube Thickness
H
L



More
Info.
00300400244 10 1,50 3,00 6,00
00300400245 12 1,50 4,00 10,00
00300400246 13 1,50 4,00 10,00
00300400247 14 1,50 3,50 9,10
00300400248 15 1,50 4,40 9,00
00300400249 16 1,50 4,40 10,00
00300400250 18 1,50 4,30 12,00
00300400251 18 1,50 6,30 12,00
00300400252 19 1,50 4,30 11,20
00300400253 20 1,50 5,00 11,80
00300400255 22 1,50 4,20 11,80
00700700023 25 1,00 to 2,50 3,00 11,50
00300400256 25 1,50 5,00 11,80
00300400258 25 1,50 8,00 11,50
00300400257 25 3,00 5,20 11,80
00300400259 27 1,50 5,50 14,00
00300400260 28 1,50 5,00 14,00
00700700028 30 0,80 to 2,50 3,00 11,50
00300400261 30 1,50 5,00 14,00
00700700030 32 0,80 to 3,00 4,50 11,50
00300400262 32 1,50 5,00 14,60
00300400263 33 3,00 10,00 14,00
00300400264 34 1,50 6,50 14,50
00700700034 35 1,00 to 3,00 3,00 11,50
00300400265 35 1,50 6,30 14,00
00300400267 38 1,50 5,50 11,50
00700700040 40 1,00 to 3,00 5,00 11,70
00300400268 40 1,50 6,00 12,00
00700700042 42 0,80 to 2,50 3,00 11,50
00300400700 42 1,50 6,00 12,00
00700700044 45 0,80 to 3,00 3,00 11,50
00300400701 45 1,50 5,00 15,15
00700700048 50 1,00 to 2,50 3,00 11,50
00300400703 50 1,50 to 2,50 6,00 16,00
00300400704 55 1,50 6,00 14,00
00300400705 60 1,50 to 2,50 6,00 21,40
00300400706 80 1,50 to 2,50 5,50 22,00

If you are interested in our family LSL, you may be interested in these families as well:

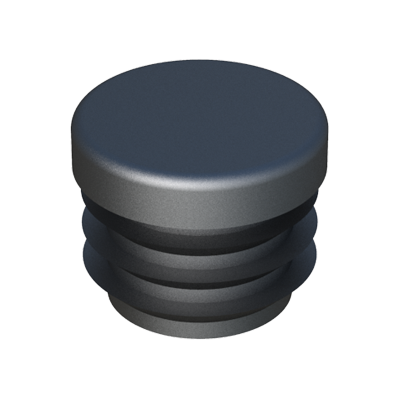

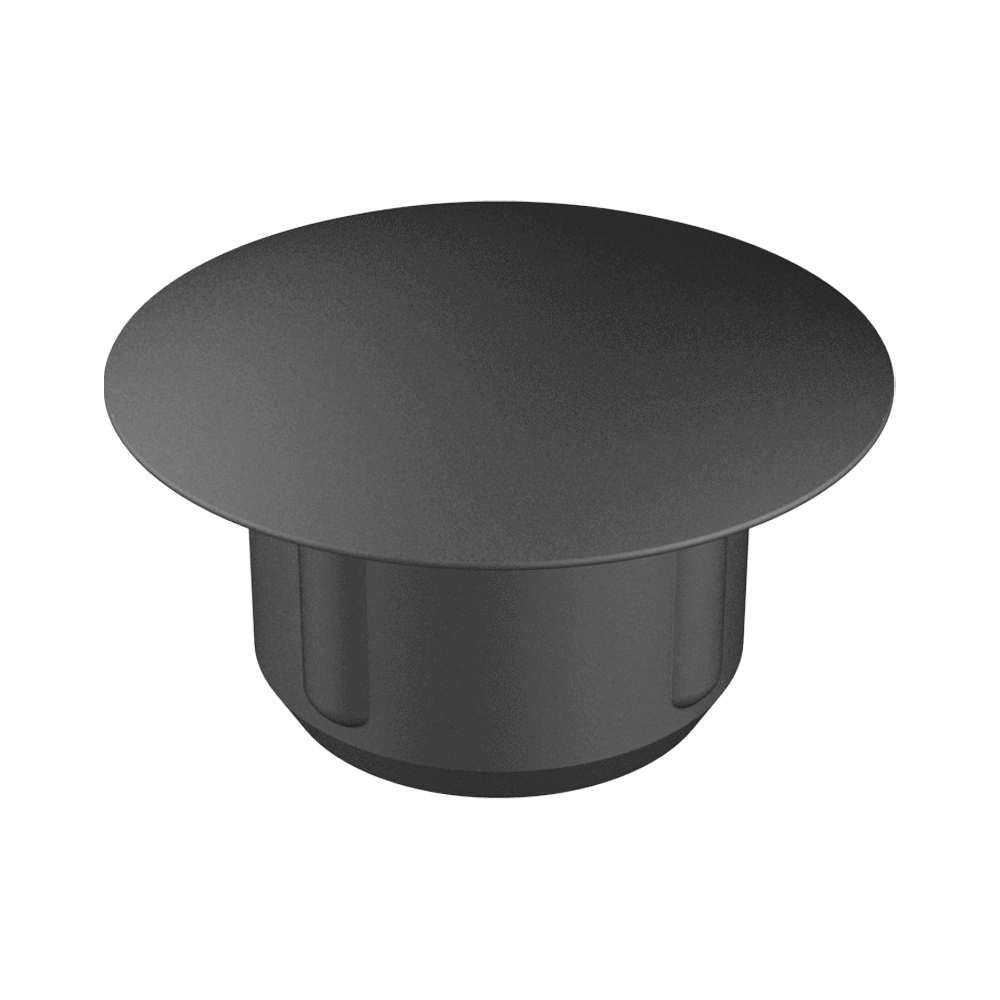

Our blanking plug of PE has been designed for protecting holes and finishing. It can be used as a glider for ending tubes. If you don't find the size you are looking for, visit our gliders group <b>LGL</b>. <br>The complete LB range is offered with the possibility of submitting the pieces to a plastic metallization process that gives them a <b>shiny metallic finish</b>. In the same way, the manufacture in RAL colors can also be requested on demand and minimum order. Consult the conditions to our commercial department.   Our LGLR tube inserts are intended for its use with round tubes. These articles stand out for their design with <b>spherical head</b> and high-quality finish.<br> <br> These inserts, with a wide range of tube outer diameters from 16 mm to 76.2 mm, have wings for a better grip once installed and are made of <b>LDPE</b> (Low Density Polyethylene ). The appropriate codes for tubes with measurements typical of the imperial system, commonly used in Anglo-Saxon countries, are those in which dimension D is expressed in inches (R).<br> <br> Most of the articles in this family are available in <b>black, grey and white</b> as standard colors, as well as in RAL of your choice under request (contact our commercial department to consult the conditions of sale).   LGL end caps are designed to ensure <b>secure fastening</b>, <b>easy assembly</b>, and a <b>high-quality finish</b> thanks to the rounded shape of their head. They are used to seal tubes and/or various openings that must withstand mechanical stress and are <b><i>recommended as end caps for chairs and/or furniture</b></i>. <br> For use as sliding stoppers and to facilitate easy assembly in tubes with thicker walls, we recommend chamfering the tube's inner diameter (approx. 0.3 - 0.5 x 60°). <br> <b>Special colors</b>, <b>company logos</b>, and production using <b>TPE material</b> (non-slip, sound-reducing, and resistant to a wider temperature range) are available upon request—please contact us. <br> Due to technical production reasons, a residual gate may exceed the L dimension. Depending on the selected item, the surface finish may vary between polished and textured. <br>
