Our standard ribbed insert has been designed for round tubes. It is also available for square tube: LE, rectangular tube: LF, oval tube: LFO, triangular tube: LFD and octogonal tube: SLJLO.

Material:  LDPE
Standard colors: Black - White - Grey / RAL colors manufactured
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
D
H
d
L
d1

PDF
3D IGS
Add
00300410029 10 1,50 10,00 2,80 6,00 5,90 8,30
00300400181 12 1,00 to 1,50 12,00 4,00 8,00 10,00 11,50
00300400182 13 1,50 13,00 4,00 8,00 10,00 11,00
00300400183 14 1,50 14,00 3,50 9,30 12,50 13,00
00300400184 15 1,50 15,00 4,00 8,00 9,40 13,20
00300400185 16 1,50 16,00 4,80 9,40 10,00 14,10
00300400186 18 1,50 18,00 4,10 13,30 12,00 16,80
00300400187 19 1,50 19,00 4,10 14,20 11,00 17,80
00300400188 20 1,50 20,00 4,00 15,10 12,00 19,00
00300400189 22 1,50 22,00 4,00 15,80 11,80 20,60
00300400191 25 1,50 24,80 5,00 16,00 11,80 23,50
00300400190 25 3,00 24,80 5,00 16,00 11,80 20,50
00300400192 27 1,50 27,00 5,00 21,30 14,00 26,00
00300400193 28 1,50 28,00 5,00 21,50 14,00 27,00
00300400194 30 1,50 30,20 5,10 23,40 14,10 28,20
00300400195 30 3,00 30,00 5,00 21,60 14,00 26,50
00300400196 32 1,50 32,00 5,00 26,30 14,50 30,50
00300400197 32 3,00 32,00 5,00 24,30 13,50 28,80
00300400198 34 1,50 33,70 5,50 27,00 14,50 32,00
00300400199 35 1,50 34,80 4,80 29,00 14,30 34,40
00300400200 36 1,50 36,00 5,00 29,10 13,80 34,30
00300400201 38 1,50 38,00 5,00 31,20 11,80 36,00
00300400202 40 1,50 39,80 5,00 32,50 11,70 38,00
00300400203 40 3,00 40,00 5,00 31,50 11,70 36,40
00300400204 42 1,50 42,00 5,00 35,60 11,50 40,00
00300410030 42 3,00 to 4,00 42,00 4,70 31,00 12,00 36,00
00300400205 45 1,50 45,00 5,00 38,00 15,00 43,50
00300400206 46 1,50 to 3,00 46,00 4,70 36,50 11,70 43,50
00300400207 48 1,50 to 2,50 48,30 5,10 41,80 18,00 45,60
00300400208 48 3,00 to 4,00 48,30 5,10 38,90 17,80 44,00
00300400210 50 0,80 to 1,50 50,20 5,20 43,30 11,70 49,00
00300400209 50 1,50 to 2,50 50,00 5,20 41,10 16,00 47,90
00300400211 50 2,50 to 3,50 50,00 5,20 41,50 17,80 45,50
00300400212 50 4,00 to 5,00 50,00 5,20 39,00 17,50 44,10
00300400213 51 1,50 to 2,50 51,20 4,80 42,80 11,50 48,90
00300400214 51 2,00 to 3,50 51,20 4,60 41,10 15,80 48,00
00300400215 51 3,00 to 4,00 51,20 4,60 41,50 17,50 45,50
00300400216 51 4,50 to 5,50 51,20 4,60 38,90 17,80 44,10
00300410031 55 1,00 to 3,00 55,00 5,00 46,00 14,50 54,00
00300400217 55 1,50 55,00 4,70 47,00 13,70 53,70
00300400219 60 1,50 to 2,50 60,50 5,30 53,70 21,00 58,50
00300400220 60 3,00 to 4,00 60,50 5,30 50,70 21,30 ·
00300410032 65 1,50 to 3,50 65,00 5,00 52,00 21,00 63,00
00300410033 70 1,00 to 3,50 69,80 5,00 57,00 21,00 69,00
00300401009 70 1,50 70,70 5,00 59,00 21,50 69,20
00300400221 70 2,00 to 4,50 70,00 5,00 58,80 21,30 67,50
00300410034 75 3,00 to 5,00 74,80 7,50 59,00 20,70 70,50
00300400222 76 1,50 to 2,50 76,50 5,00 69,30 21,00 73,80
00300400223 76 3,00 to 4,00 76,50 5,00 65,00 21,00 71,60
00300400224 80 1,50 to 2,00 80,20 4,00 68,00 20,30 78,00
00300410035 80 3,00 to 5,50 79,30 6,00 64,00 21,00 75,00
00300410036 85 3,50 to 6,00 84,60 7,50 68,50 21,00 79,00
00300400225 90 2,50 to 5,00 89,80 5,00 78,80 20,00 86,50
03500700010 100 2,00 to 4,50 101,00 6,00 86,00 28,80 96,70
00300400226 100 2,00 to 4,00 101,40 4,80 92,00 20,00 98,00
00300400227 120 2,00 to 4,00 119,50 7,00 106,50 29,00 116,50
00300401005 125 2,00 to 6,00 124,00 7,00 107,00 33,50 121,50
00300401006 130 2,00 to 6,00 130,00 10,00 113,00 33,50 127,50
00300401007 140 2,00 to 6,50 139,70 11,50 123,00 33,50 139,50
00300401008 150 2,00 to 7,00 150,20 10,50 132,50 34,00 148,00
00300410077 R 1/2 2,65 21,15 5,00 12,80 20,00 16,60
00300410078 R 3/4 2,65 26,70 5,00 18,40 20,00 22,20
00300410079 R 1 3,25 33,70 5,00 23,60 20,00 27,80
00300410080 R 1 1/4 3,25 42,00 6,00 32,30 25,00 36,50
00300410081 R 1 1/2 3,25 47,85 6,00 38,20 25,00 42,40
00300410082 R 2 3,65 60,00 6,00 49,30 25,00 53,60

If you are interested in our family LGL, you may be interested in these families as well:

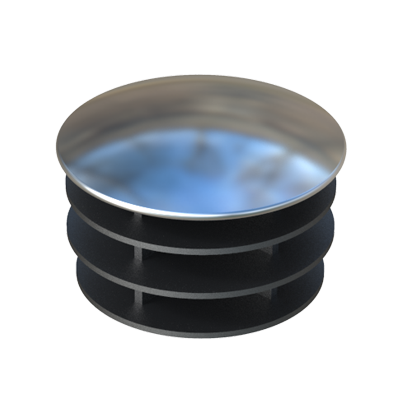

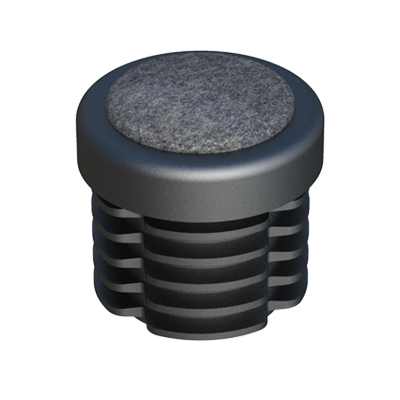

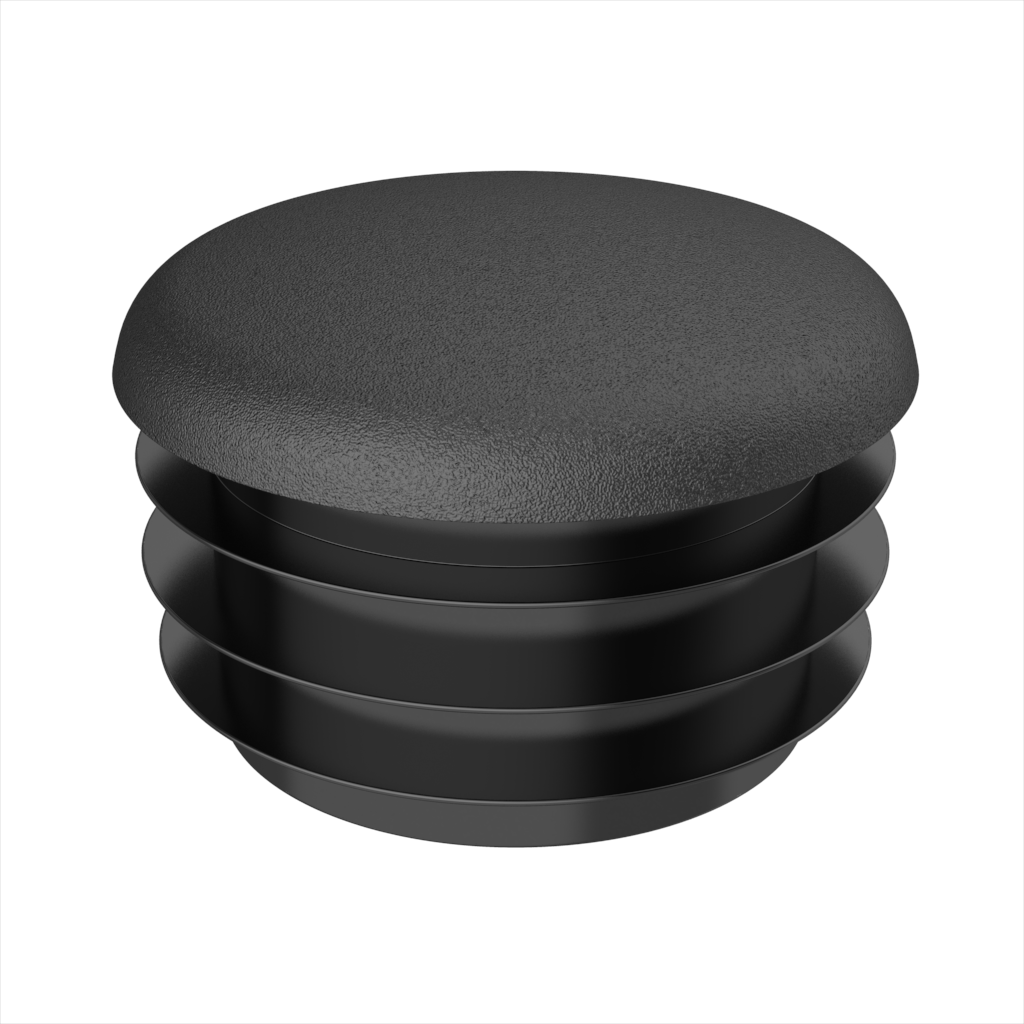

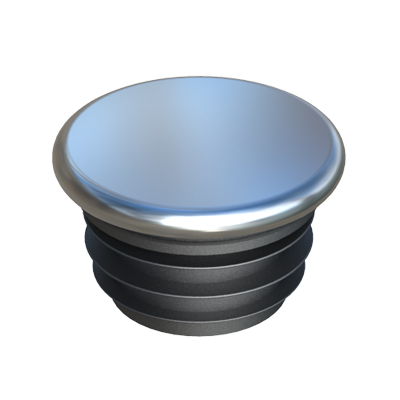

Our blanking plug of PE has been designed for protecting holes and finishing. It can be used as a glider for ending tubes. If you don't find the size you are looking for, visit our gliders group LGL.   Our ribbed insert for round tubes has a steel base (NOT stainless). We also have it available for square tubes: TGLMC, rectangular tubes: TGLMX and for oval tubes: TGLMO.   Our ribbed round tube insert has a  heavy-duty metal cap to give it a better finishing. Also, this reinforced tube insert is more resistant than our family TGLM.   Our chrome square tube insert provides a very good finishing to your parts. It is also available for rectangular tubes: MTGL, and for round tubes: MTGLC.   Round glides with <i>felt base for chairs and furniture</i>. We incorporate the felt during the injection process, so it offers much <b>more resistance than those felts installed through adhesives or other systems</b>. The felt comes from the wool and has properties such as <i>insulation and thermal, acoustic and mechanical protection</i>, so its application is essential in the furniture industry, specifically in glides for chairs, tables or desks.   Our ribbed insert has a thin rounded head. If you are looking for a tube insert with a higher rounded head, please visit our family LGLR.   Our tube insert for round tubes LGLP is ideal for chairs. It can be produced in <b> RAL colors</b> on demand and its base is produced and offered in various materials. As a sum up, here goes their caracteristics:
<br><br>
* <i><b>PA6 base (nylon)</b></i>: good sliding and no wear-down. For parquet and wood flooring.
<br>
* <i><b>POM+PTFE base </b></i>: good sliding,  friction-proof, vibration-proof and chemically resistant. For textile flooring like carpet or rugs
<br>
* <i><b>PUR base (polyurethane)</b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring.
<br>
* <i><b> EVA body (rubbery) with POM+PTFE </b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring. Recommended to reduce sound (meeting rooms, theaters)...

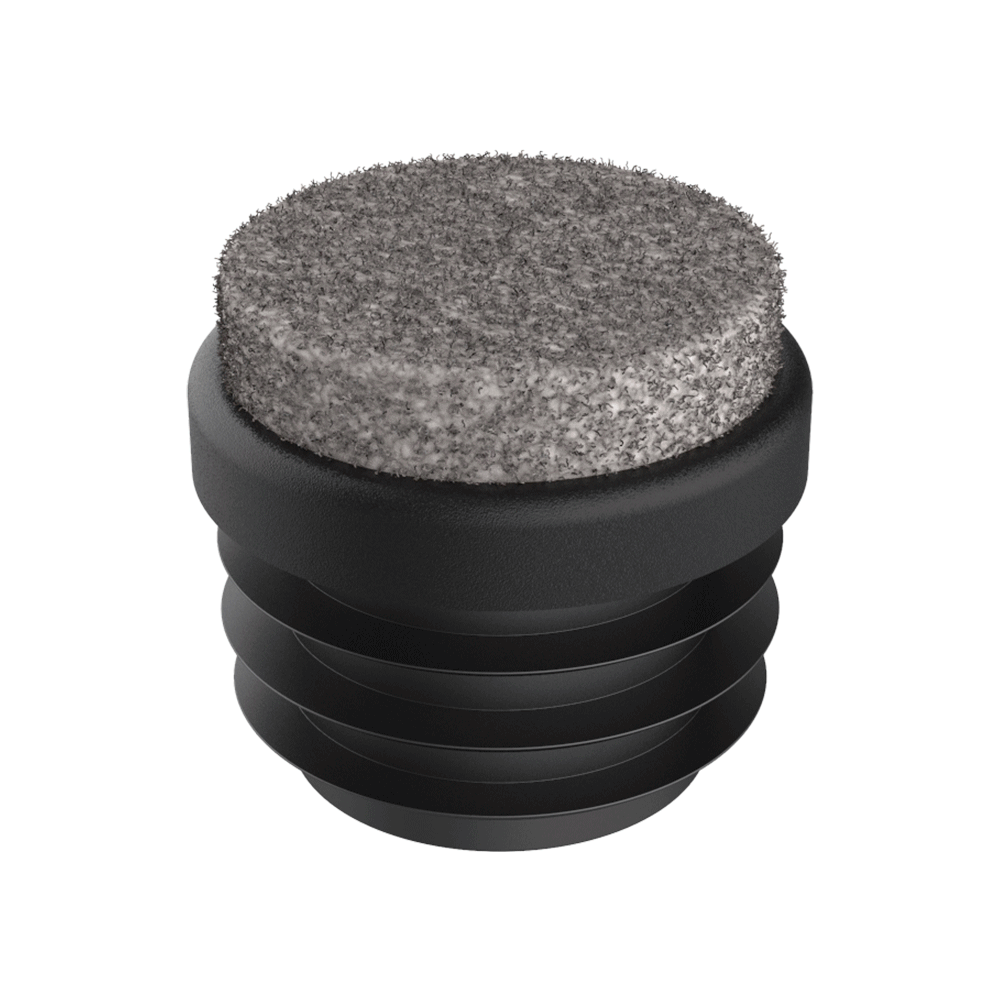

<br>   It is a ribbed tube insert with welded felt for round tubes. The felt is fixed by an adhesive glue, as a consequence it is less resistant than our family LGLF.   Our ribbed tube insert has been designed with a dome head or mushroom head for round tubes.
