Our open cable grommet HYPFA allows for quick and easy installation even when cables or pipes are already in place. Thanks to its side entry and flexible design, it can be mounted in existing holes without dismantling the wiring.

Made of polyamide 6/6, in black, it offers excellent chemical resistance and good electrical properties. It also provides mechanical protection and insulation, while absorbing vibrations.

  • Operating temperature: up to +105 °C
  • Flammability: UL94-V2 (flame-retardant and self-extinguishing)
  • Hole diameters: from 12.7 mm to 31.80 mm
  • Secured by anchoring teeth, adaptable to the panel thickness
  • Can be installed in holes already occupied by cables

On request: available in white or other colours upon sample, contact us for details.

Product compliant with the regulatory requirements of UL (Underwriters’ Laboratories) and certified by the CSA (Canadian Standards Association), meeting the applicable safety and quality standards.


Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

HYPFA
HYPFA

Reference
Hole size (A)
Panel thickness (G)
D
L



More
Info.
01012000144 12,70 3,20 14,20 9,80
01012000145 15,90 3,20 18,20 10,30
01012000146 19,00 3,20 20,60 10,30
01012000147 22,20 3,20 23,40 10,30
01012000148 25,40 3,20 27,00 10,30
01012000149 27,80 3,20 30,20 10,30
01012000170 31,80 3,20 37,30 10,30
01012000150 34,90 3,20 37,30 10,30
01012000151 38,10 3,20 40,10 10,70

If you are interested in our family HYPFA, you may be interested in these families as well:

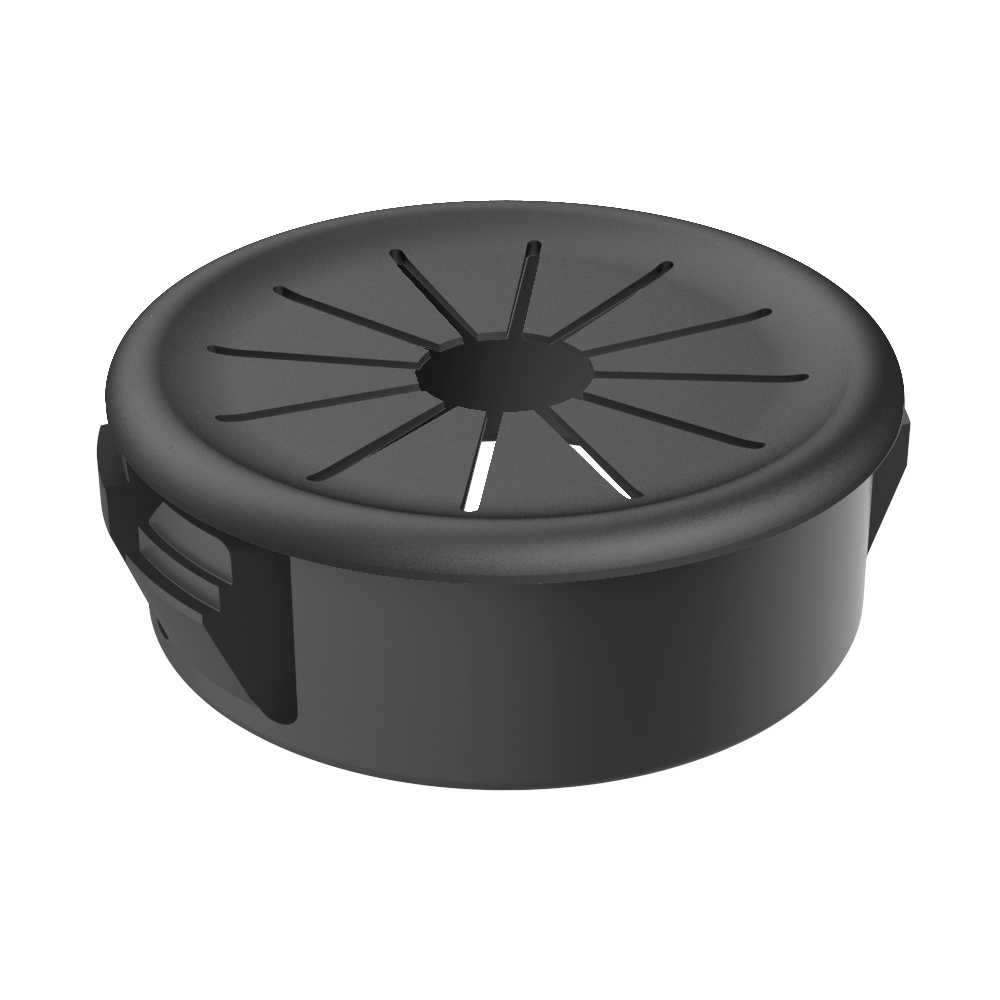

Our <b>ALL-FIT</b> <b>MPF membrane cable grommets</b> are used in a wide range of applications, especially to <b>protect cables, pipes and hoses</b> from sheet metal edges or from sharp or unfinished edges of the components where they are installed.<br> These adjustable bushings feature a design with flexible tabs that facilitate the insertion of multiple cables, absorb impacts and vibrations, and ensure optimal protection and insulation. In addition, they offer resistance to chemical agents and good electrical properties.<br> These grommets are equipped with <b>locking tabs</b> that snap into the holes by finger pressure and adapt to the maximum panel thickness, remaining firmly secured to the panel. They are available in various sizes for hole diameters from <b>12.70 mm to 76.20 mm</b>.<br><br> They are manufactured from <b>heat-stabilized Polyamide 66</b> (PA66) with a <b>maximum operating temperature of 105°C</b> and supplied in <b>black</b>. They can also be supplied in <b>white</b> and other RAL colors; to check the required minimum order quantity, please contact our sales office.<br><br> Product compliant with <b>UL</b> (<i>Underwriters’ Laboratories</i>) requirements and certified by <b>CSA</b> (<i>Canadian Standards Association</i>), in accordance with applicable <b>safety and quality standards</b>.   The membrane grommet handles an exceptional large cable span and is equipped with a pop-out membrane providing a wider range of applications than traditional membrane grommet. With the pop-out membrane you have a sealed cap but even after passing a cable you maintain a guaranteed IP67 standard. The grommet needs no further installation tools and works extremely well even if cables pass through at extreme angles.   This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc..., It permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust. Natural Rubber offers a good resistance to organic acids, alcohols and automotive brake fluid. <br> <i>*The references 02001000464 and 02001000910 have a design variation. The external diameter (E) is different on each side (E1).</i>   This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc., it permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust.   This semi-blind grommet is ideal to protect cables and wires passing through metal panels. Our semi-blind grommet is quick and simple to install.
