Our wire/cable holders are designed to mount into 4.76mm hole diameters. Our wire/cable holders can be used in a variety of panel thicknesses and materials. Sizes are available to handle wire bundle diameters from 9.53mm to 12.70mm.

Material: PA66
Standard colors: Natural - Black
UL94:   V2
IP:
RoHS:
Drawing PDF:


Reference
Panel hole size
Panel thickness
A
B
C

PDF
3D IGS
Add
00101100158 4,76 0,76 a 2,36 9,53 12,70 23,42
00101100162 4,76 1,00 a 8,00 9,53 12,70 23,42
00101100163 4,76 1,00 a 8,00 9,53 19,05 25,40
00101100164 4,76 1,00 a 8,00 12,70 19,05 30,96
00101100165 4,76 1,00 a 8,00 12,70 25,40 38,10

If you are interested in our family MACRD, you may be interested in these families as well:

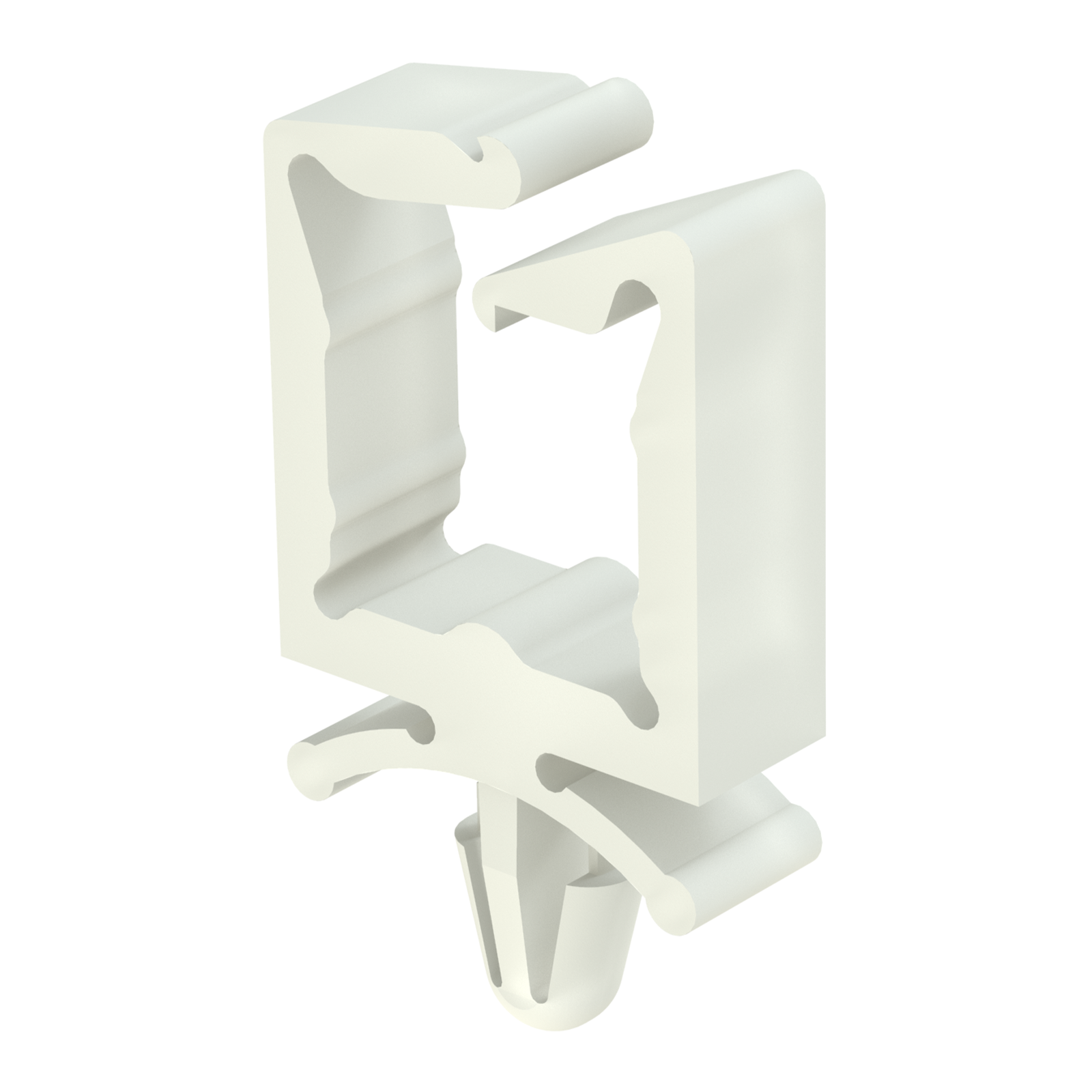

Our locking wire and cable holder is used for routing wires and cables. It has been designed to fit 4.75mm hole diameters and variable panel thicknesses from 2.30mm to 3.70mm. Wires and cables can be mounted and removed again and again thanks to its locking system which is releasable by twisting open.
