This insulating washer is similar to our MACP washer but includes two protrusions inside to fix the screw, thus improving its positioning and ensuring that it is isolated from the electrical contacts for a longer period. It can be used with the most common screw heads such as cylindrical heads, countersunk heads and for domed screw heads. It is produced in PA6 (nylon) in standard black and white colors.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Metric
Thread
D
B
A
H
T



More
Info.
03100200050 M3 3,20 5,50 6,50 1,10 2,00
03100200051 M4 4,30 7,00 8,50 1,20 2,30
03100200052 M5 5,30 8,50 10,50 1,60 2,90
03100200053 M6 6,40 10,00 12,70 2,00 3,50
03100200055 M8 8,40 13,00 15,00 2,60 4,00

If you are interested in our family COP, you may be interested in these families as well:

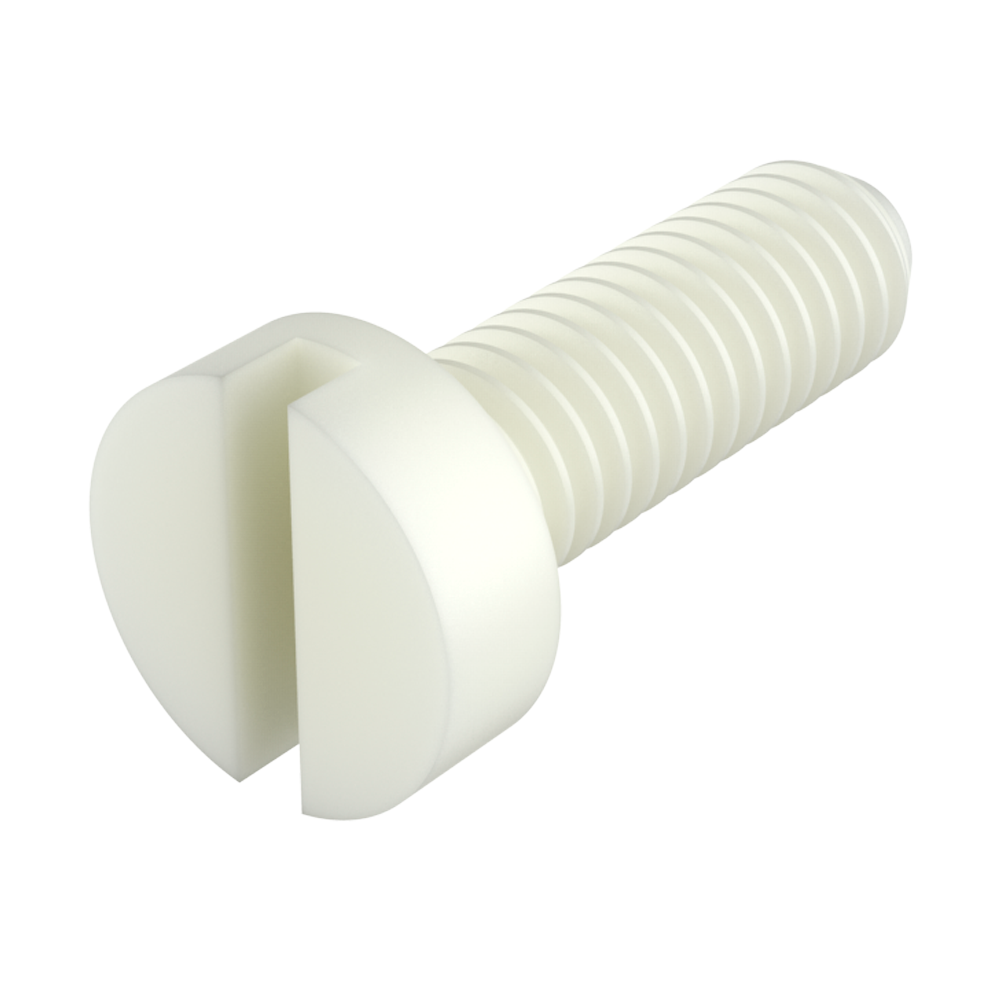

Our MTCCR metric thread screws with <b>cheese slotted head</b>, similar to <b>DIN 84 / ISO 1207</b>, are manufactured in various <b>engineered materials</b> that favor properties such as chemical, mechanical, oxidation resistance, etc.<br><br>
These cylindrical screws are available in <b>PA66</b> (Polyamide 66 “Nylon”), <b>PP</b> (Polypropylene), <b>POM</b> (Acetal Resin), <b>PVDF</b> (Polyvinylidene Fluoride), <b>PEEK</b> (Polyetheretherketone) and <b>PAGF</b> (Polyamide with the possibility of up to 50% fiberglass).<br><br>

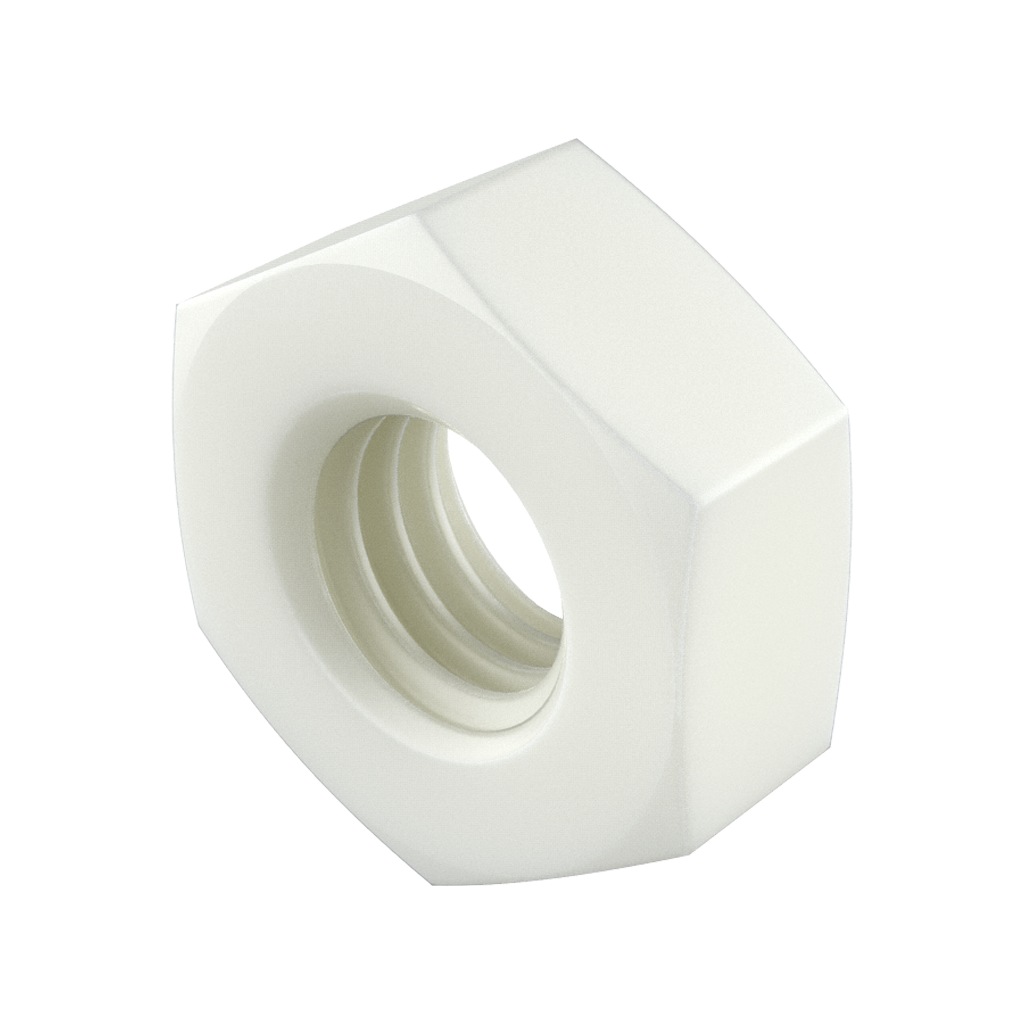

<i>The measurements of M2 and M2.5 are supplied only in PA66.</i><br>   Our metric thread MDIN <b>hex</b> nuts, similar to <b>DIN 34814 (DIN 934/555) / ISO 4032</b>, are manufactured in various <b>engineering materials</b>. that favor properties such as chemical, mechanical, oxidation resistance, etc.<br><br>
