This removable and reusable rivet is a two-piece rivet which can be removed by retracting the pin, and then the body. The body incorporates a slot in line with the pin so that the pin can be removed by inserting a small screw driver, other sharp edge, or even a finger-nail underneath the head of the pin (reusable).

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Hole size
Panel thickness
D
L
H
C



More
Info.
00100300503 4,78 1,59 9,53 12,70 2,28 1,78
00100300504 4,78 3,18 9,53 12,70 2,28 1,78
00100300285 6,35 1,59 11,11 12,70 2,28 1,78
00100300505 6,35 3,18 11,11 12,70 2,28 1,78
00100300506 6,35 4,76 11,11 12,70 2,28 1,78

If you are interested in our family MRPP, you may be interested in these families as well:

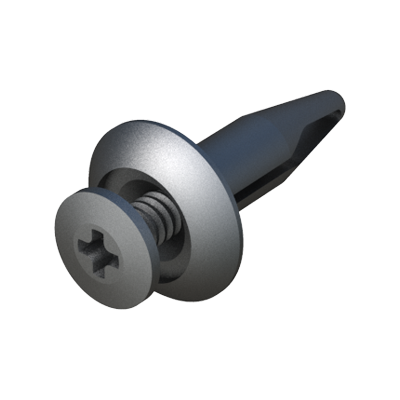

Our <b>reusable</b> LSBN Rivet Clip is <b>easy and quick to install</b> as it allows you to <b>fix 2 elements</b> with a slight pressure and is easily removed using a <b>Phillips screwdriver</b>.<br>
These <i>Push Lock</i> rivets are very versatile, so they can be used in a wide variety of applications, especially in the electrical and automotive industries.<br>
The installation hole varies between 5.00 mm and 11.00 mm and accepts different panel thicknesses. They are manufactured in <b>Polyamide (UL94V2)</b> or in <b>POM (UL94HB)</b> in some references.<br>

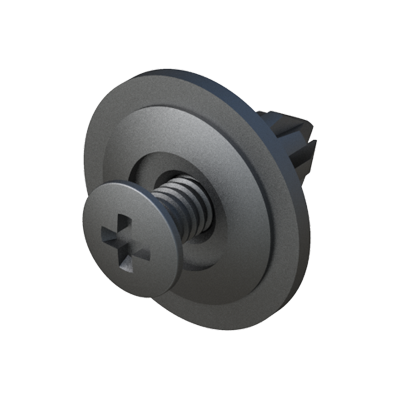

There may be differences in the finish and design of the different references, which do not affect their functionality. For this reason, we recommend downloading the individual plan of the selected piece.     This two-piece reusable phillips screw rivet is designed to fasten larger components or small assemblies to their mating panels. Pressing or tapping the screw through the body creates a secure insulated connection. It may be removed with a phillips screw driver and thus the screw rivet can be re-used.
