Description and features
This is a reusable panel cinching rivet that consists of 2 elements: the "T" shaped drive pin, and the "U" shaped body. Both are joined by thin webs. To install the fastener, insert the body into the panel hole and rap the head of the pin with a hammer or an impact tool. It can be removed by removing the head, which permits to reuse it.
Possible to get dyed colors Product images and technical drawings

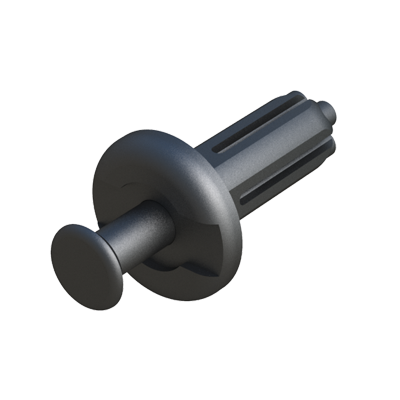

Product view
Technical drawing
Video
Part numbers and dimensions of Reusable panel cinching rivet
| Reference | Hole size |
Max. Panel thickness |
L |
D |
H |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00100300490 | 3,18 | 0,51 to 2,77 | 9,07 | 6,35 | 2,03 | ||||||||
| 00100300491 | 4,78 | 0,51 to 4,42 | 11,20 | 9,40 | 2,60 | ||||||||
| 00100300492 | 6,35 | 0,51 to 2,77 | 12,07 | 9,53 | 2,92 | ||||||||
| 00100300493 | 6,35 | 0,51 to 4,42 | 14,10 | 15,88 | 2,97 |
