Description and features
Our MDB branch sleeves are made of soft TPE in a “T” shape for creating branches between tube sections.
These sleeves, UV-resistant, are pressure-mounted on tube ends and, thanks to their internal teeth, adhere perfectly to the tube's outer profile. Wall mounting holes have a diameter of Ø 4 mm. They can be used even between tubes of different sizes.
· Material: TPE
· Color: black
· Operating temperature: -40 °C / +120 °C (with ends up to +150 °C)
· IP protection: IP66 according to EN 60529
Available in grey on request.
Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of T-shaped sleeve for corrugated tube
| Reference | For tube (D1) |
For tube (D2) |
d1 |
d2 |
L |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02009000010 | 10,00 | 10,00 | 17,50 | 17,50 | 46,50 | ||||||||
| 02009000011 | 13,00 | 13,00 | 21,00 | 21,00 | 51,00 | ||||||||
| 02009000012 | 15,80 | 15,80 | 25,00 | 25,00 | 63,00 | ||||||||
| 02009000013 | 15,80 | 28,50 | 25,50 | 36,50 | 65,00 | ||||||||
| 02009000014 | 18,50 | 18,50 | 26,50 | 26,50 | 70,50 | ||||||||
| 02009000015 | 21,20 | 21,20 | 29,50 | 29,50 | 71,00 | ||||||||
| 02009000016 | 28,50 | 21,20 | 36,50 | 32,00 | 78,00 | ||||||||
| 02009000017 | 28,50 | 28,50 | 36,50 | 36,50 | 77,00 | ||||||||
| 02009000018 | 34,50 | 34,50 | 42,50 | 42,50 | 85,00 |

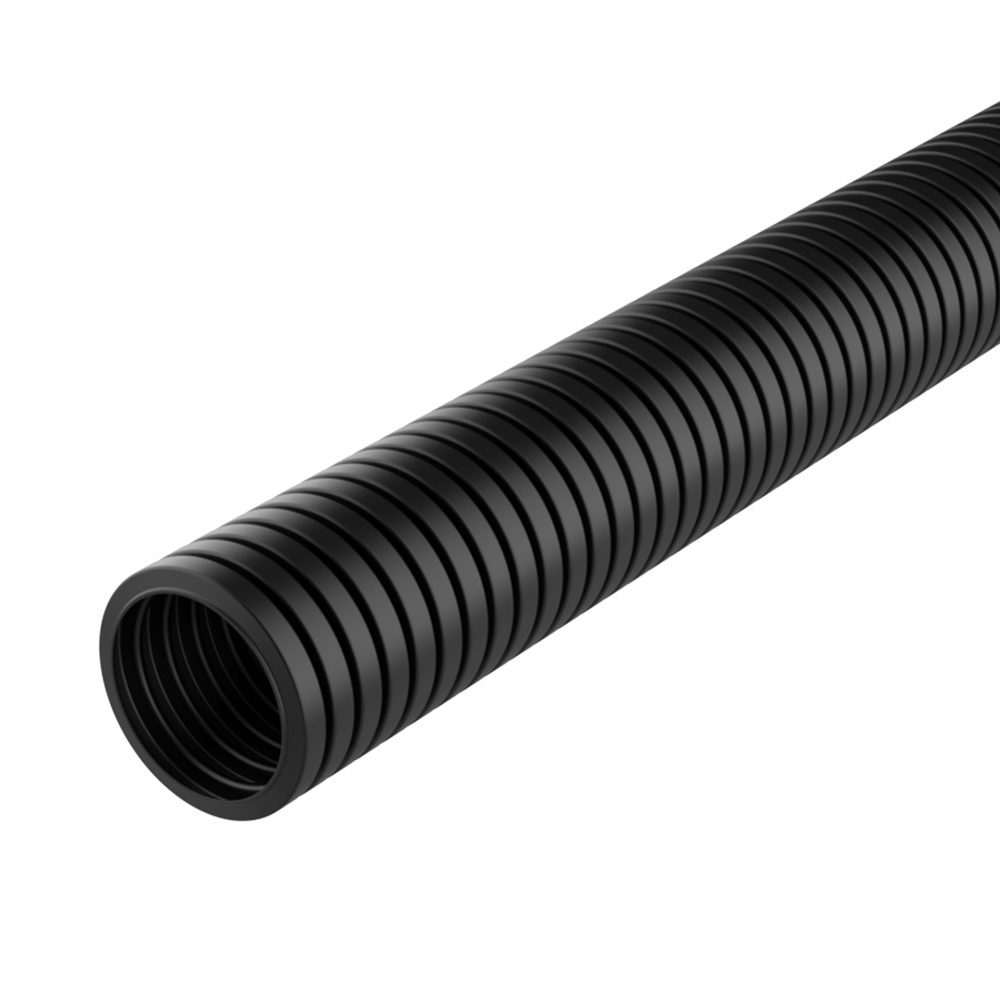

If you are interested in our family MDB, you may be interested in these families as well:
