Our corrugated polypropylene tube MPP is a flexible flame-resistant component designed for technical applications in industrial and outdoor environments. It offers excellent UV resistance and a service life of at least 20 years.

Material: Thermally stabilized polypropylene.
Operating temperature: -40 °C / +130 °C (peaks up to +150 °C).
Flammability: Flame-retardant and self-extinguishing UL94-V2, FMVSS 302, DIN 75200.
Features: High flexibility, resistance to alcohols, grease, mineral oils and fuels. Suitable for photovoltaic systems, mechanical and automotive industries. Tensile strength 26 MPa, elastic modulus 1300 MPa, elongation at break >250%.
Supply & packaging: Unit of measure 1 meter, bulk supply without cuts, coils of 10, 25, 50 or 100 meters depending on reference, special lengths on request.

Side opening available on request. Thick-wall version available on request.

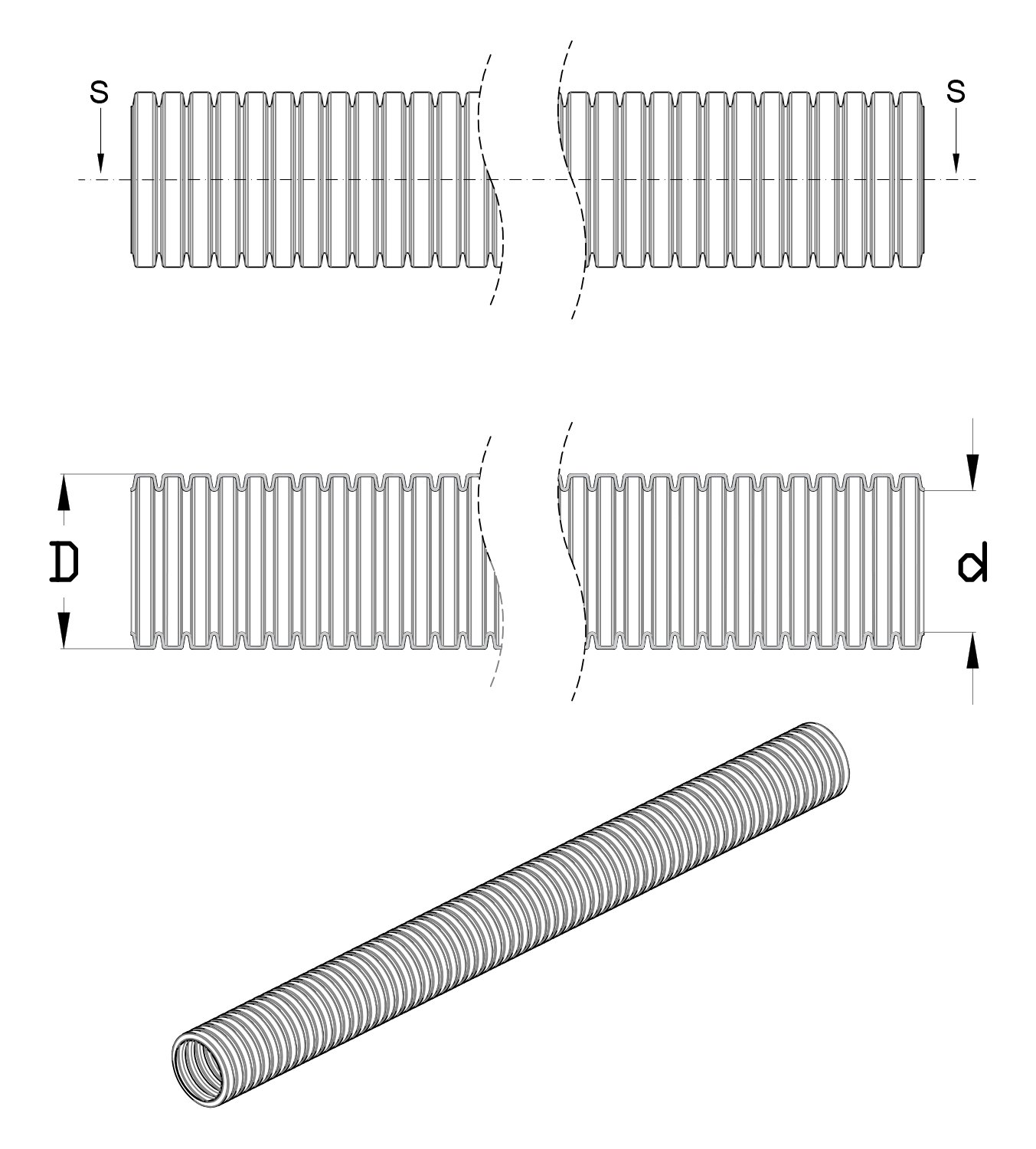

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Nominal diameter
D
d
Max. bending radius



More
Info.
02010001000 4,50 7,10 4,50 12,00
02010001001 7,50 9,90 6,90 15,00
02010001002 8,50 11,40 8,50 18,00
02010001003 10,00 12,90 10,10 18,00
02010001004 12,00 15,60 12,50 20,00
02010001005 13,00 15,80 12,90 22,00
02010001006 14,00 18,30 14,50 25,00
02010001007 17,00 21,00 16,80 30,00
02010001008 19,00 24,00 19,40 35,00
02010001009 22,00 25,20 21,80 37,00
02010001010 23,00 28,40 23,70 42,00
02010001011 26,00 31,00 26,40 47,00
02010001012 29,00 34,10 29,30 60,00
02010001013 37,00 41,60 36,50 70,00
02010001014 50,00 53,60 47,80 100,00
02010001015 56,00 67,90 56,30 100,00
02010001016 70,00 79,20 66,50 135,00
02010001017 95,00 106,00 91,00 150,00

If you are interested in our family MPP, you may be interested in these families as well:

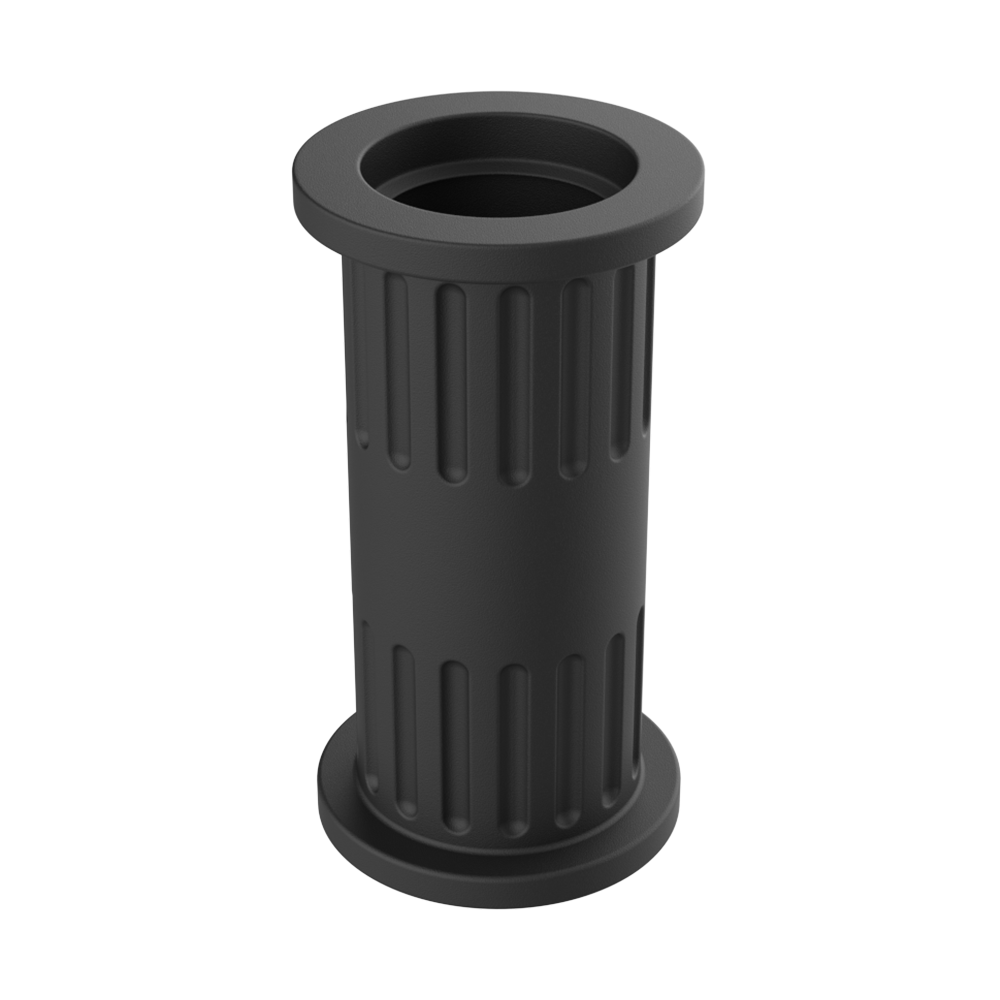

<p>Our coupling sleeves <b>MDA</b> are manufactured in flexible <b>TPE</b> for joining conduits.</p>

<p>These <b>UV-resistant</b> components are press-fitted onto conduit ends. The internal serration ensures a secure grip by adapting to the external profile. They are used to extend conduit sections or to connect corrugated conduits with other types of tubing.</p>

<p>· <b>Material:</b> TPE<br>
· <b>Color:</b> black<br>
· <b>Operating temperature:</b> -40°C / +120°C<br>
· <b>IP protection:</b> IP66 according to EN 60529</p>

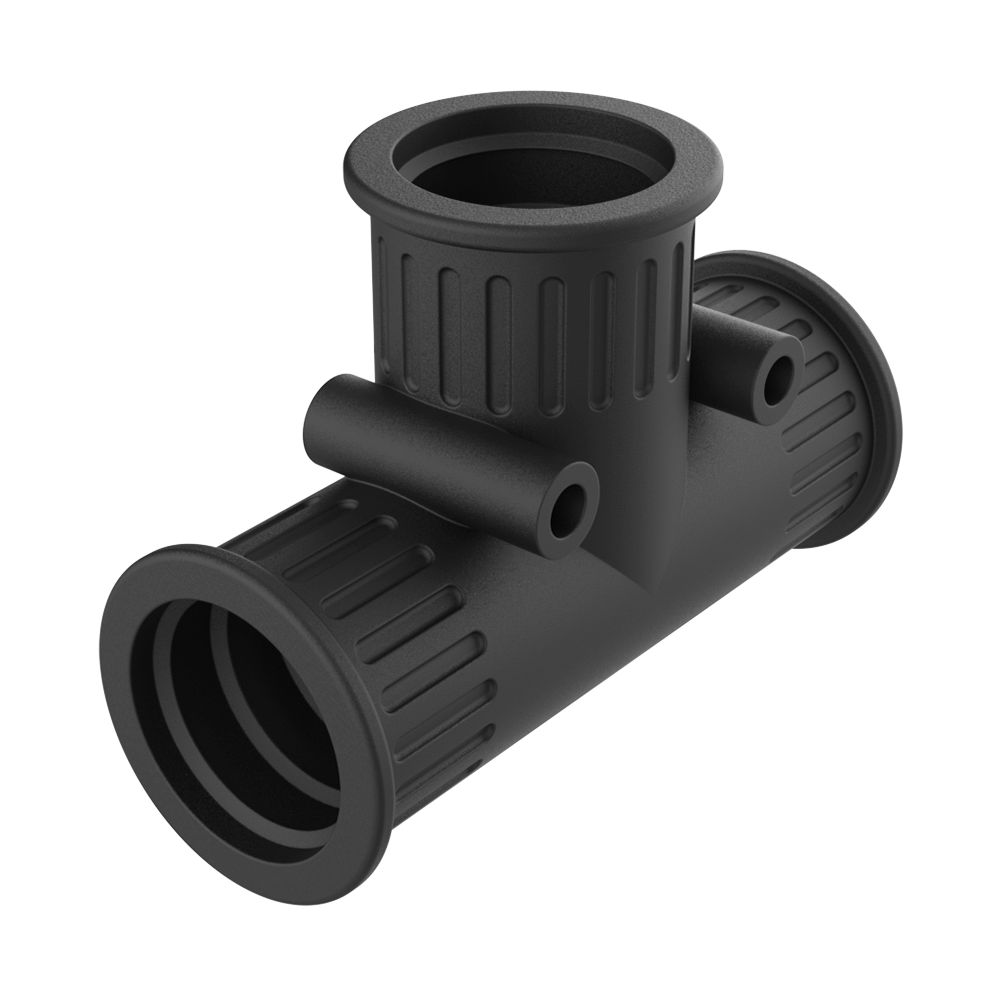

<p><i>Free from cadmium, silicone and halogens. Grey color available on request.</i></p>   <p>Our <b>MDB</b> branch sleeves are made of soft <b>TPE</b> in a “T” shape for creating branches between tube sections.</p>

<p>These sleeves, <b>UV-resistant</b>, are pressure-mounted on tube ends and, thanks to their internal teeth, adhere perfectly to the tube's outer profile. Wall mounting holes have a diameter of Ø 4 mm. They can be used even between tubes of different sizes.</p>

<p>· <b>Material:</b> TPE<br>
· <b>Color:</b> black<br>
· <b>Operating temperature:</b> -40 °C / +120 °C (with ends up to +150 °C)<br>
· <b>IP protection:</b> IP66 according to EN 60529</p>

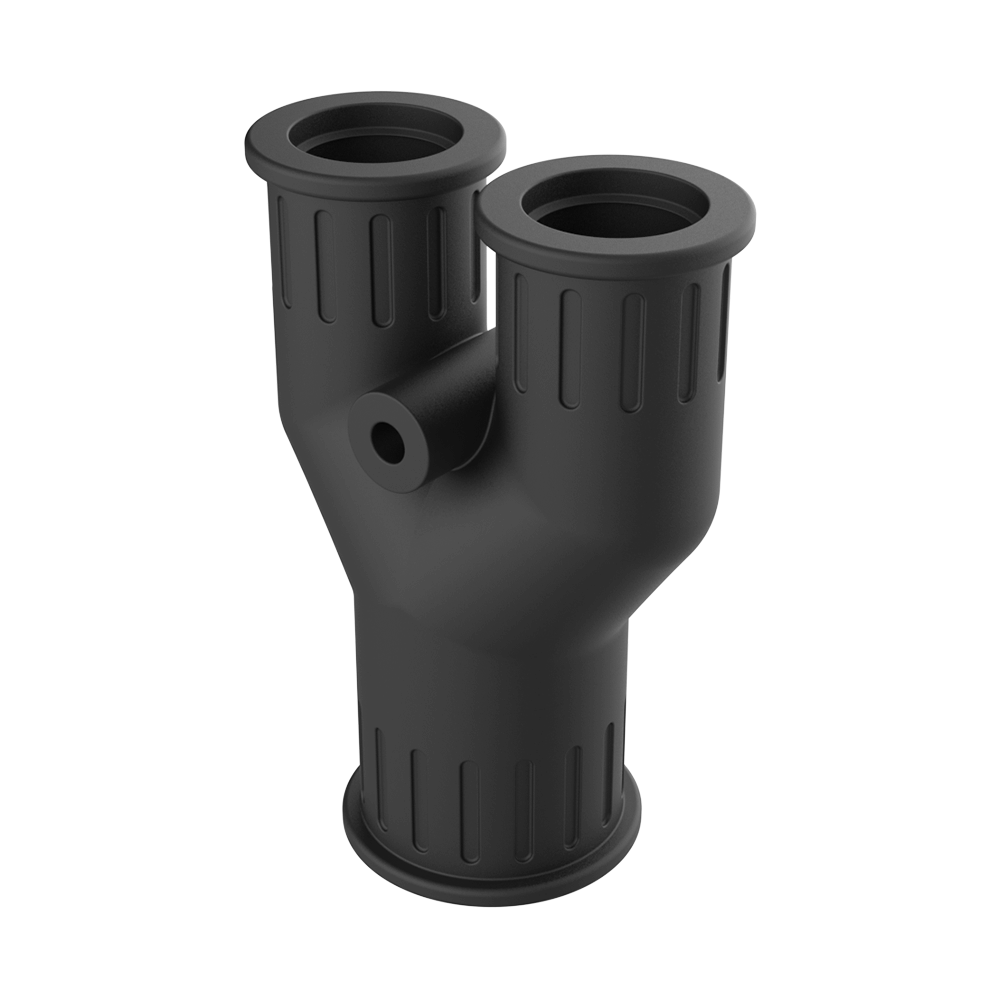

<p><i>Available in grey on request.</i></p>   <p>Our <b>MDC</b> branch sleeves are made of soft <b>TPE</b> in a “Y” configuration to create derivations between tube sections.</p>

<p>These sleeves, <b>UV-resistant</b>, are pressure-mounted on tube ends and, thanks to their internal teeth, adhere perfectly to the outer profile. Wall mounting holes have a Ø 4 mm diameter. They can be used even between tubes of different sizes.</p>

<p>· <b>Material:</b> TPE<br>
· <b>Color:</b> grey or black<br>
· <b>Operating temperature:</b> -40 °C / +120 °C (with tips up to +150 °C)<br>
· <b>IP protection:</b> IP66 according to EN 60529</p>

<p><i>Certifications: GOST, UKCA.</i></p>
