The WBB round hole plug is designed for the closing, protection and finishing of circular holes in metal, plastic or other material parts, providing a functional and aesthetic solution for many industrial applications. Made of technical plastic material, it offers good mechanical strength and reliable performance against common external agents, helping to extend the service life of the component where it is installed.

Its design enables quick installation by manual push-fit, without tools, ensuring a secure fit in the housing. The WBB plug effectively protects the inside of the hole against ingress of dirt, dust or accidental contact, while also preventing sharp edges and improving the visual finish of the assembly.

Regarding the IP protection rating, please note that this plug does not have a specific IP classification, as the final sealing performance depends on factors such as the application, the support material, hole tolerances and installation conditions. To confirm suitability for each specific application, we recommend carrying out real tests with samples.

The WBB plug is widely used in industrial machinery, metal fabrication, manufacturing of electrical enclosures and control cabinets, tubular structures, technical furniture, transport equipment and automotive components, where a simple and effective solution is required for closing holes, user protection and improving the final finish.

Available in different diameters and finishes. For critical applications or specific requirements, please contact our technical-commercial department.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Hole Size
Panel Thickness
E
d
C
L



More
Info.
02800200004 6,50 0,60 10,50 7,90 2,20 2,80
02800200028 8,30 1,50 to 4,00 20,00 14,00 5,20 7,75
02800200027 12,00 0,50 to 1,50 18,80 12,50 3,00 4,00
02800200006 14,00 0,70 to 2,50 24,10 17,00 6,50 7,00
02800200002 18,00 0,50 to 2,50 29,00 18,80 4,00 5,00
02800200003 20,50 0,50 to 3,00 29,00 21,70 3,70 2,40
02800200007 22,00 to 24,00 3,00 to 4,00 31,40 22,65 6,10 6,80
02800200008 25,00 to 25,40 2,50 to 3,00 33,70 27,80 3,30 7,00
02800200005 28,00 0,60 to 2,00 39,00 28,80 4,80 5,20

If you are interested in our family WBB, you may be interested in these families as well:

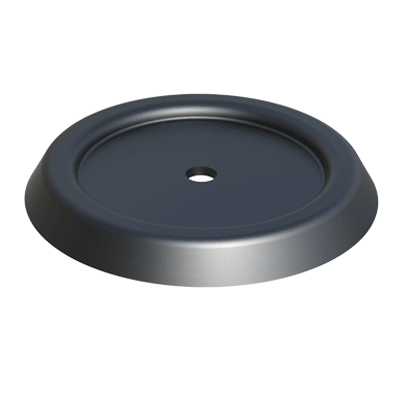

The WDA range of cable glands for round holes prevent cables and tubes from being damaged by passing through a panel hole. Its possibility of firm adjustment adapting to the diameter of the tube / cable, prevents the entry of water and dust.
Possibility to manufacture it in other colors and sizes, contact us.
