The WDA range of cable glands for round holes prevent cables and tubes from being damaged by passing through a panel hole. Its possibility of firm adjustment adapting to the diameter of the tube / cable, prevents the entry of water and dust. Possibility to manufacture it in other colors and sizes, contact us.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

WDA
WDA

Reference
Hole size (A)
Panel thickness (D)
Diameter tube/cable (C)
B
b
H
L



More
Info.
02800300001 10,00 0,50 to 1,50 7,20 to 7,80 17,00 10,00 3,00 4,00
02800300003 16,00 0,50 to 2,50 12,00 18,00 x 26,00 17,00 4,30 4,90
02800300004 28,00 0,50 to 2,00 7,00 39,00 29,00 4,80 5,20
02800300005 28,00 0,50 to 2,50 14,00 39,00 29,00 4,80 5,20
02800300002 28,00 0,50 to 2,00 25,00 40,00 28,00 4,00 6,00
02800300007 30,00 1,20 18,00 50,00 36,50 11,00 4,00
02800300006 40,00 1,00 to 1,50 4,80 to 5,05 53,00 44,20 5,00 5,00

If you are interested in our family WDA, you may be interested in these families as well:

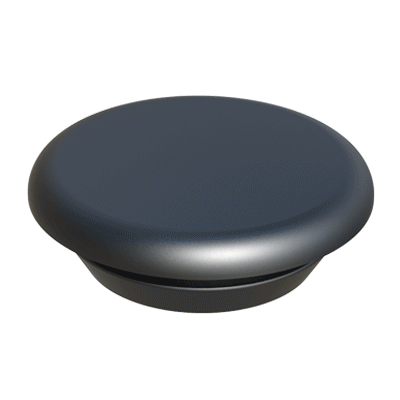

The <b>WBB round hole plug</b> is designed for the <b>closing, protection and finishing of circular holes</b> in metal, plastic or other material parts, providing a functional and aesthetic solution for many industrial applications. Made of <b>technical plastic material</b>, it offers <b>good mechanical strength</b> and reliable performance against common external agents, helping to extend the service life of the component where it is installed. <br><br> Its design enables <b>quick installation by manual push-fit</b>, without tools, ensuring a <b>secure fit</b> in the housing. The WBB plug effectively protects the inside of the hole against <b>ingress of dirt, dust or accidental contact</b>, while also preventing <b>sharp edges</b> and improving the <b>visual finish</b> of the assembly. <br><br>Regarding the <b>IP protection rating</b>, please note that this plug <b>does not have a specific IP classification</b>, as the final sealing performance depends on factors such as the application, the support material, hole tolerances and installation conditions. To confirm suitability for each specific application, we recommend carrying out real tests with samples. <br><br> The WBB plug is widely used in <b>industrial machinery</b>, <b>metal fabrication</b>, <b>manufacturing of electrical enclosures and control cabinets</b>, <b>tubular structures</b>, <b>technical furniture</b>, <b>transport equipment</b> and <b>automotive components</b>, where a simple and effective solution is required for <b>closing holes</b>, <b>user protection</b> and <b>improving the final finish</b>. <br><br> <i>Available in different diameters and finishes. For critical applications or specific requirements, please contact our technical-commercial department.</i><br>   This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc., it permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust.
