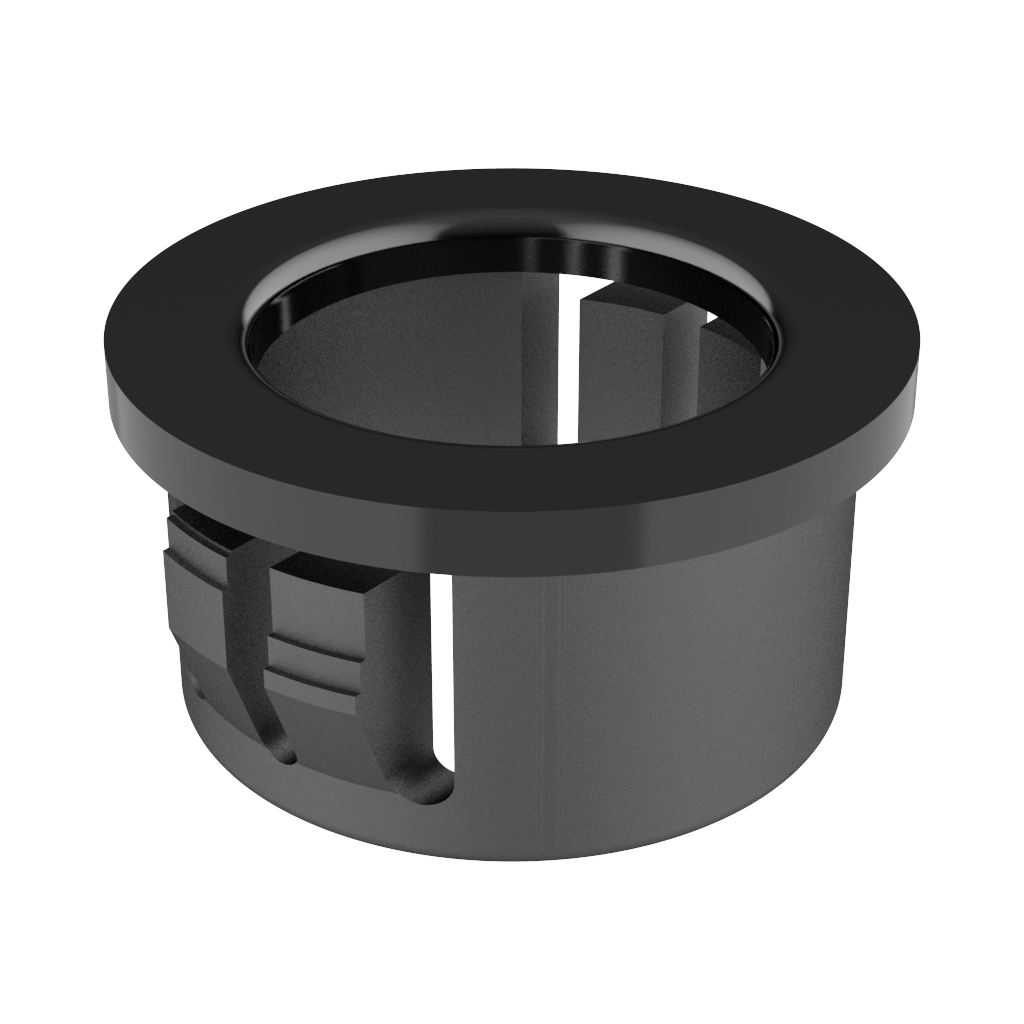

This open-close bushing is ideal to protect wires, cable tubings, and hoses from sharp, uneven drilled or punched holes in sheet metal. They are designed with multiple locks to positively snap in panels, and they can be fixed even when the cable/tubing is already mounted. The bushing provides a quick and easy installation , only with a fingertip pressure. The split design of this open-close bushing allows the bushing to be assembled around cable harnesses that have attachements larger than the inside diameter of the bushing.

Material: PA66
Standard colors: Black
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Hole size (A)
Panel thickness
D / E / F / G
B
C
L
H

PDF
3D IGS
Add
00101000108 9,53 0,80 / 1,60
2,40 / 3,20
6,71 12,29 10,31 1,60
01012000500 11,10 0,80 / 1,60
2,40 / 3,20
7,90 12,30 10,30 1,60
00101000109 12,70 0,80 / 1,60
2,40 / 3,20
8,00 15,49 10,31 1,60
01012000501 14,30 0,80 / 1,60
2,40 / 3,20
9,90 16,30 10,30 1,60
00101000110 15,88 1,14 / 1,98
2,79 / 3,66
11,50 18,69 10,30 1,84
00101000111 19,05 0,80 / 1,60
2,40 / 3,20
13,11 20,19 10,31 1,60
00101000112 22,23 0,80 / 1,60
2,40 / 3,20
16,99 24,79 10,31 1,60
00101000113 25,40 0,80 / 1,60
2,40 / 3,20
20,19 27,00 10,31 1,60
01012000502 27,80 0,80 / 1,60
2,40 / 3,20
22,00 28,60 10,30 1,60
01012000503 31,80 0,80 / 1,60
2,40 / 3,20
26,60 34,10 10,30 1,60
01012000504 34,90 0,80 / 1,60
2,40 / 3,20
29,80 37,30 10,30 1,60
01012000505 38,10 0,80 / 1,60
2,40 / 3,20
31,70 40,10 10,70 1,60

If you are interested in our family MKPA, you may be interested in these families as well:

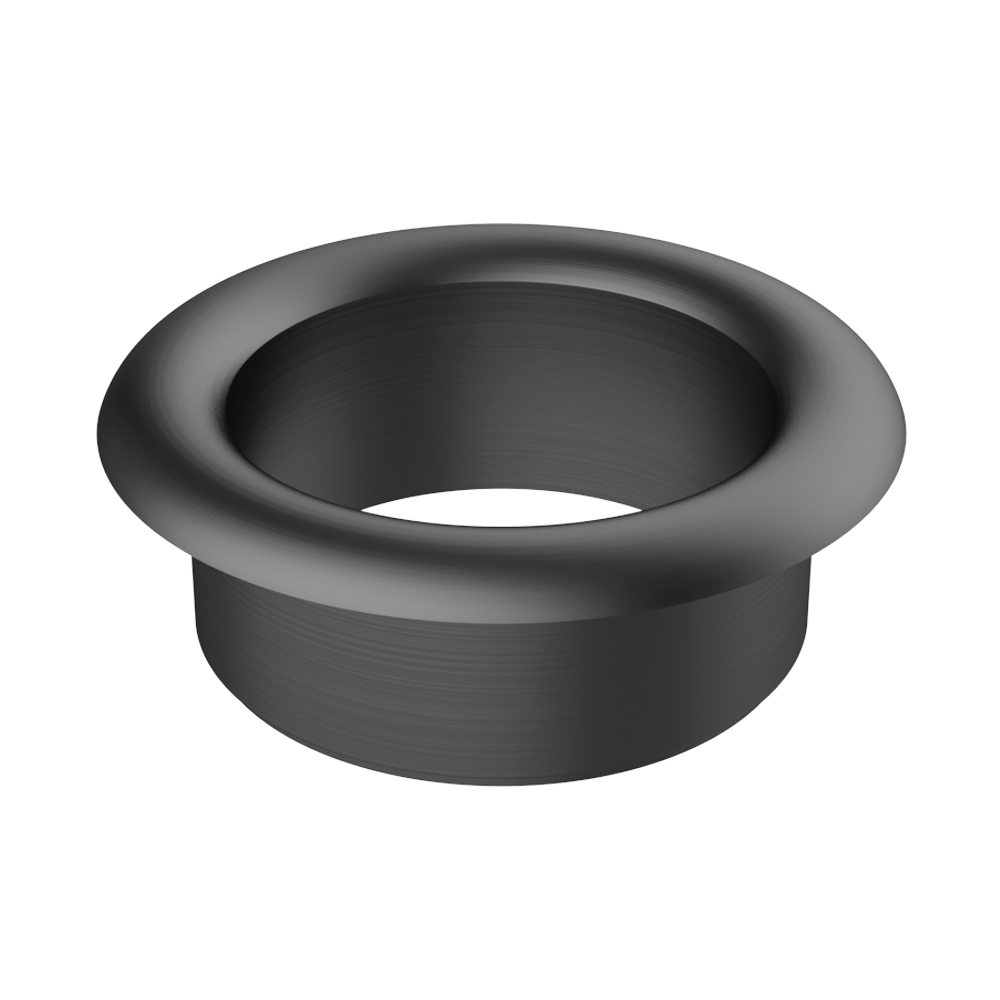

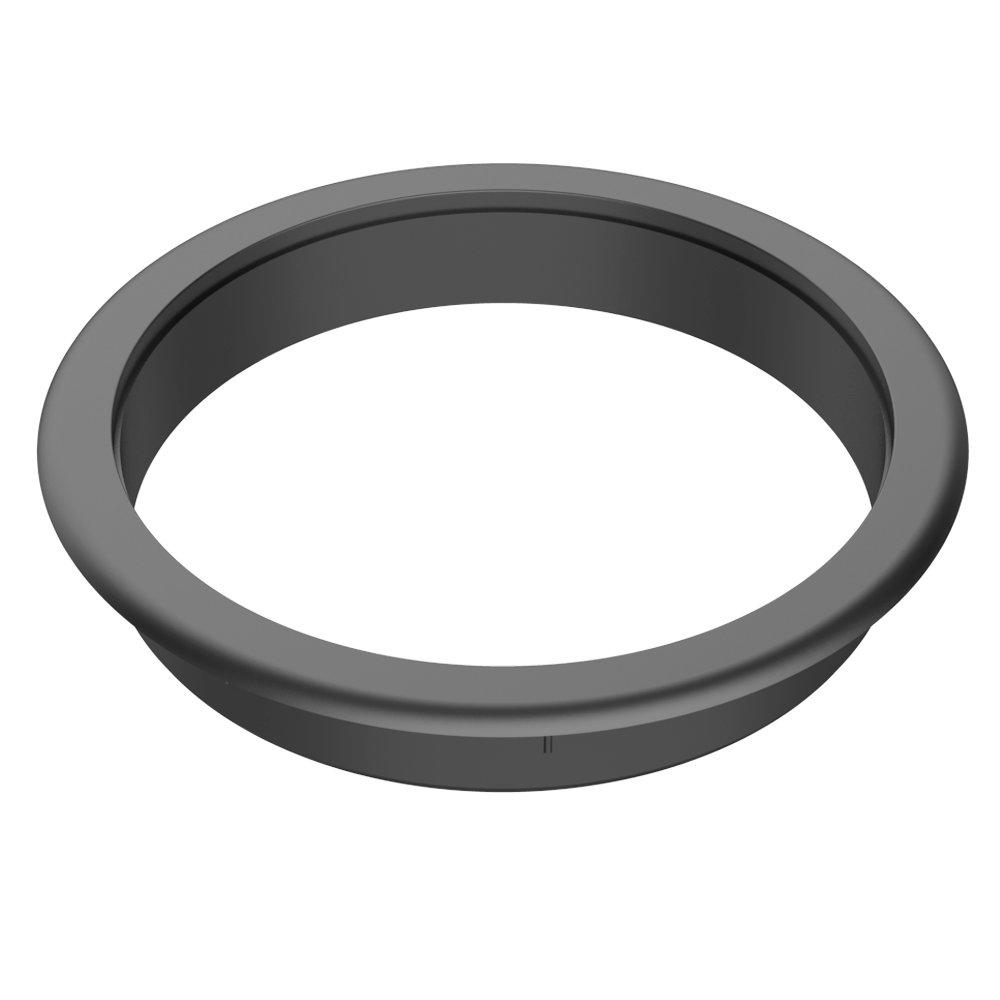

Our insulating bushing provides protection for wire, cable tubing, and hose from sharp, uneven drilled or punched holes in sheet metal. It has been designed with multiple locks to positively snap in panels (without tools). Our bushing meets Underwriters Laboratories and Canadian Association temperature and pull-out tests, as it is made in heat stabilized nylon UL 94V2.   Our desk cable open grommet organizer permits to pass cables through the desk avoiding the damage of the cables. It has a round shape to be fixed to a desk diameter hole from 26 to 34mm.   If you want this part with a connector in order to be mounted with the adapter LKDZZ, for its assembly with the cable guides LKABA or LKABZ, on cable ducts LKDG and LKDT, please visit our family LKDZY.   Our desk cable open grommet organizer permits to pass cables through the desk avoiding the damage of the cables. It has a round shape to be fixed to a desk diameter hole of 80mm.
