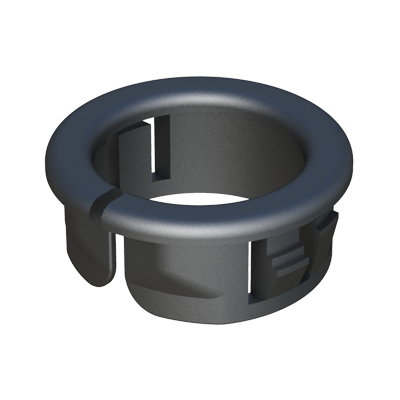

Our insulating bushing provides protection for wire, cable tubing, and hose from sharp, uneven drilled or punched holes in sheet metal. It has been designed with multiple locks to positively snap in panels (without tools). Our bushing meets Underwriters Laboratories and Canadian Association temperature and pull-out tests, as it is made in heat stabilized nylon UL 94V2.

Material: PA66
Standard colors: Black - White
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Hole size
Panel thickness
D / E / F / G
A
B
C
H
Type

PDF
3D IGS
Add
00101000001 4,80 0,80 / 1,60 3,20 6,40 6,20 1,60 2
00101000010 6,60 0,80 / 1,60 3,20 8,00 8,00 1,60 1
00101000011 8,00 0,80 / 1,60 4,80 9,50 8,00 1,60 1
00101000002 8,00 0,80 / 1,60 6,40 9,50 6,20 1,60 2
00101000012 9,50 0,80 / 1,60
2,40 / 3,20
4,80 11,90 10,30 1,60 1
00101000013 9,50 0,80 / 1,60
2,40 / 3,20
6,40 11,90 10,30 1,60 1
00101000127 9,53 0,80 / 1,60 6,35 11,10 6,40 1,60 2
00101000016 11,10 0,80 / 1,60
2,40 / 3,20
6,20 13,50 10,30 1,60 1
00101000014 11,10 0,80 / 1,60
2,40 / 3,20
6,40 13,50 10,30 1,60 1
00101000015 11,10 0,80 / 1,60
2,40 / 3,20
8,00 13,50 10,30 1,60 1
00101000003 11,90 0,80 / 1,60 8,80 13,50 6,40 1,60 2
00101000017 12,70 0,80 / 1,60
2,40 / 3,20
6,40 14,70 10,30 1,60 1
00101000018 12,70 0,80 / 1,60
2,40 / 3,20
8,00 14,70 10,30 1,60 1
00101000004 12,70 0,80 / 1,60
2,40 / 3,20
9,50 14,30 6,40 1,60 1
00101000019 12,70 0,80 / 1,60
2,40 / 3,20
9,50 14,70 10,30 1,60 1
00101000005 13,50 0,80 / 1,60 10,30 15,20 6,40 1,60 2
00101000020 14,30 0,80 / 1,60
2,40 / 3,20
8,00 16,70 10,30 1,60 1
00101000021 14,30 0,80 / 1,60
2,40 / 3,20
9,50 16,70 10,30 1,60 1
00101000022 14,30 0,80 / 1,60
2,40 / 3,20
11,10 16,70 10,30 1,60 1
00101000023 15,90 0,80 / 1,60
2,40 / 3,20
6,40 18,20 10,30 1,60 1
00101000024 15,90 0,80 / 1,60
2,40 / 3,20
11,10 18,20 10,30 1,60 1
00101000006 15,90 0,80 / 1,60 12,70 17,90 6,40 1,60 2
00101000025 15,90 0,80 / 1,60
2,40 / 3,20
12,70 18,20 10,30 1,60 1
00101000026 17,50 0,80 / 1,60
2,40 / 3,20
12,70 19,80 10,30 1,60 1
00101000027 17,50 0,80 / 1,60
2,40 / 3,20
14,30 19,80 10,30 1,60 1
00101000007 19,00 0,80 / 1,60 16,00 21,00 6,40 1,60 2
00101000028 19,10 0,80 / 1,60
2,40 / 3,20
9,50 21,40 10,30 1,60 1
00101000029 19,10 0,80 / 1,60
2,40 / 3,20
12,70 21,40 10,30 1,60 1
00101000030 19,10 0,80 / 1,60
2,40 / 3,20
14,30 21,40 10,30 1,60 1
00101000031 19,10 0,80 / 1,60
2,40 / 3,20
15,90 21,40 10,30 1,60 1
00101000008 19,90 0,80 / 1,60 16,00 21,50 6,40 1,60 2
00101000032 20,60 0,80 / 1,60
2,40 / 3,20
14,30 22,60 10,30 1,60 1
00101000033 20,60 0,80 / 1,60
2,40 / 3,20
15,90 22,60 10,30 1,60 1
00101000034 22,20 0,80 / 1,60
2,40 / 3,20
9,50 24,20 11,50 1,60 1
00101000035 22,20 0,80 / 1,60
2,40 / 3,20
11,10 24,20 11,50 1,60 1
00101000036 22,20 0,80 / 1,60
2,40 / 3,20
12,70 24,20 11,50 1,60 1
00101000037 22,20 0,80 / 1,60
2,40 / 3,20
14,30 24,20 11,50 1,60 1
00101000038 22,20 0,80 / 1,60
2,40 / 3,20
15,90 24,20 11,50 1,60 1
00101000039 22,20 0,80 / 1,60
2,40 / 3,20
17,40 24,20 11,50 1,60 1
00101000009 22,20 0,80 / 1,60 19,00 23,80 6,40 1,60 2
00101000040 25,40 0,80 / 1,60
2,40 / 3,20
19,00 28,60 11,50 1,60 1
00101000041 27,80 0,80 / 1,60
2,40 / 3,20
20,60 30,90 11,50 1,60 1
00101000042 27,80 0,80 / 1,60
2,40 / 3,20
22,20 30,90 11,50 1,60 1
00101000043 27,80 0,80 / 1,60
2,40 / 3,20
23,80 30,90 11,50 1,60 1
00101000044 30,20 0,80 / 1,60
2,40 / 3,20
23,80 33,30 11,50 1,60 1
00101000045 31,70 0,80 / 1,60
2,40 / 3,20
23,80 34,50 11,50 1,60 1
00101000130 31,80 0,80 / 1,60
2,40 / 3,20
23,80 33,20 11,50 1,60 1
00101000046 34,90 0,80 / 1,60
2,40 / 3,20
25,40 37,30 11,50 1,60 1
00101000047 38,10 0,80 / 1,60
2,40 / 3,20
27,00 40,90 11,50 1,60 1
00101000048 38,10 0,80 / 1,60
2,40 / 3,20
28,50 40,90 11,50 1,60 1
00101000049 38,10 0,80 / 1,60
2,40 / 3,20
33,30 40,90 11,50 1,60 1
00101000051 50,80 0,80 / 1,60
2,40 / 3,20
41,20 54,00 11,50 1,60 1
