Female-Male rivet MRB


Description and features

This two-piece rivet is designed for flexible plastic I.D. or security bracelet. Male and female rivets snap into pre-punched holes in the plastic bracelet and then snap together. It is very difficult to remove without damaging, preventing its loss or its modification. Male and female parts are packed and sold separately.
  Possible to get dyed colors

Technical documentation and compliance

  • Drawing PDF
  • UL94  V2
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

Female-Male rivet MRB - Product view

Technical drawing

Female-Male rivet MRB - Technical drawing

Video


Part numbers and dimensions of Female-Male rivet

Reference
Hole size
Panel thickness
A
B
L
Piece male or female



More
Info.
00100300500 · · 9,65 1,92 2,14 FEMALE
00100300501 5,40 3,20 to 5,50 9,65 5,84 1,58 Male

If you are interested in our family MRB, you may be interested in these families as well:

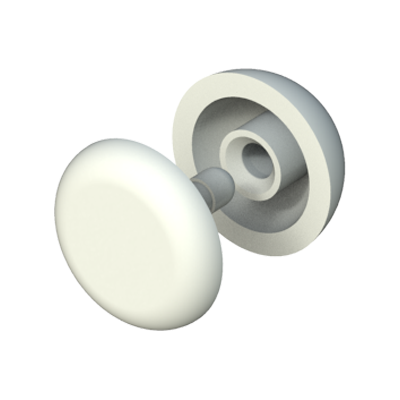

Dome and tack rivet MRD   Snap tack MTPM
