Our 3-way connector has been designed in order to connect square tubes.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

THCCU
THCCU

Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400214 13,50 x 13,50 1,25 20,00 13,00
02300900177 20 x 20 1,50 32,00 20,00
02300400352 25 x 25 1,50 49,00 25,00
02300400802 25 x 25 2,00 40,00 25,00
02300900164 30 x 30 1,50 50,00 30,00
02300900171 40 x 40 2,00 55,00 40,00

If you are interested in our family THCCU, you may be interested in these families as well:

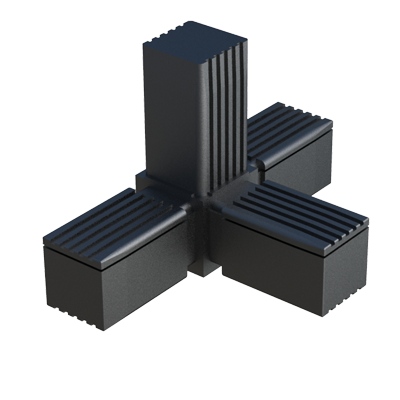

Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 45º to 200º.   Our 4-way connector has been designed for square tubes. It is supplied without internal metal core or with an internal steel core.   Our C connector has been designed to connect 4 square tubes. It has a thread of M8 or M10, depending on the reference. More possibilities of sizes available under minimum order, consult us.   Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 0º to 180º, depending on the reference.
