4 tubes C connector with a cavity for metal core THCCA


Description and features

Our 4-way connector has been designed for square tubes. It is supplied without internal metal core or with an internal steel core.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

4 tubes C connector with a cavity for metal core THCCA - Product view

Technical drawing

4 tubes C connector with a cavity for metal core THCCA - Technical drawing

Video


Part numbers and dimensions of 4 tubes C connector with a cavity for metal core

Reference
For Tube
Tube Thickness
L
H



More
Info.
00201206445 20 x 20 1,50 36,00 20,00
00201206455 25 x 25 1,50 52,00 25,00
00201206463 30 x 30 2,00 47,00 30,00

If you are interested in our family THCCA, you may be interested in these families as well:

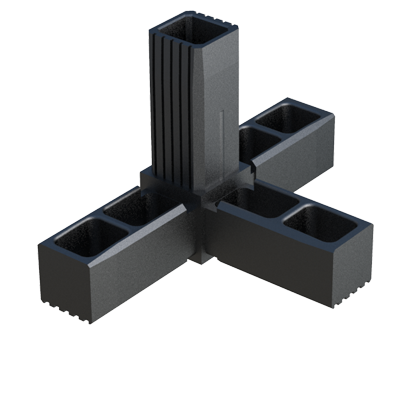

4 tubes C connector THCCU   4 tubes hinge connector with nut cavities and reinforcement THCCF   Square tube insert LE   4 tubes C connector with metal core and thread THCCB
