2 tubes elbow connector with metal core, thread and visible union THCLI


Description and features

Our elbow connector has been designed for square tubes. It is supplied with the internal core in steel.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

2 tubes elbow connector with metal core, thread and visible union THCLI - Product view

Technical drawing

2 tubes elbow connector with metal core, thread and visible union THCLI - Technical drawing

Video


Part numbers and dimensions of 2 tubes elbow connector with metal core, thread and visible union

Reference
For Tube
Tube Thickness
L
H
Metric (M)



More
Info.
02300400159 25 x 25 1,50 52,00 25,00 M8

If you are interested in our family THCLI, you may be interested in these families as well:

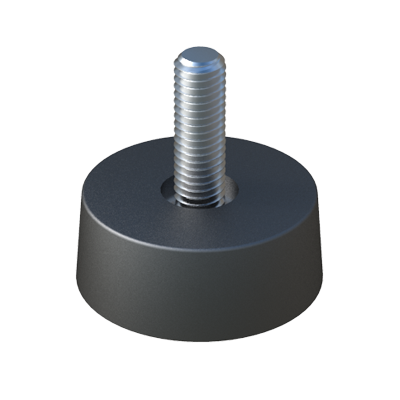

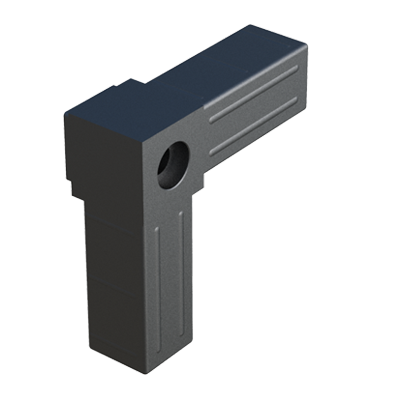

Wheel with thread and brake RSIF   Adjustable foot for heavy duty LKKG   Adjustable foot with steel cover MNI   2 tubes elbow connector with a thru-hole and visible union THCLY
