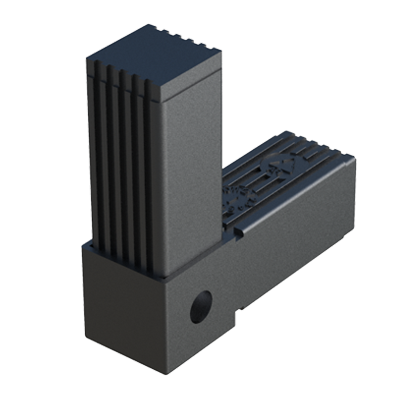

Our elbow connector has been designed for square tubes. It is supplied without internal metal core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400182 20 x 20 1,50 40,00 20,00

If you are interested in our family THCLY, you may be interested in these families as well:

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.   Our elbow connector has been designed for square tubes. It is supplied with the internal core in steel.
