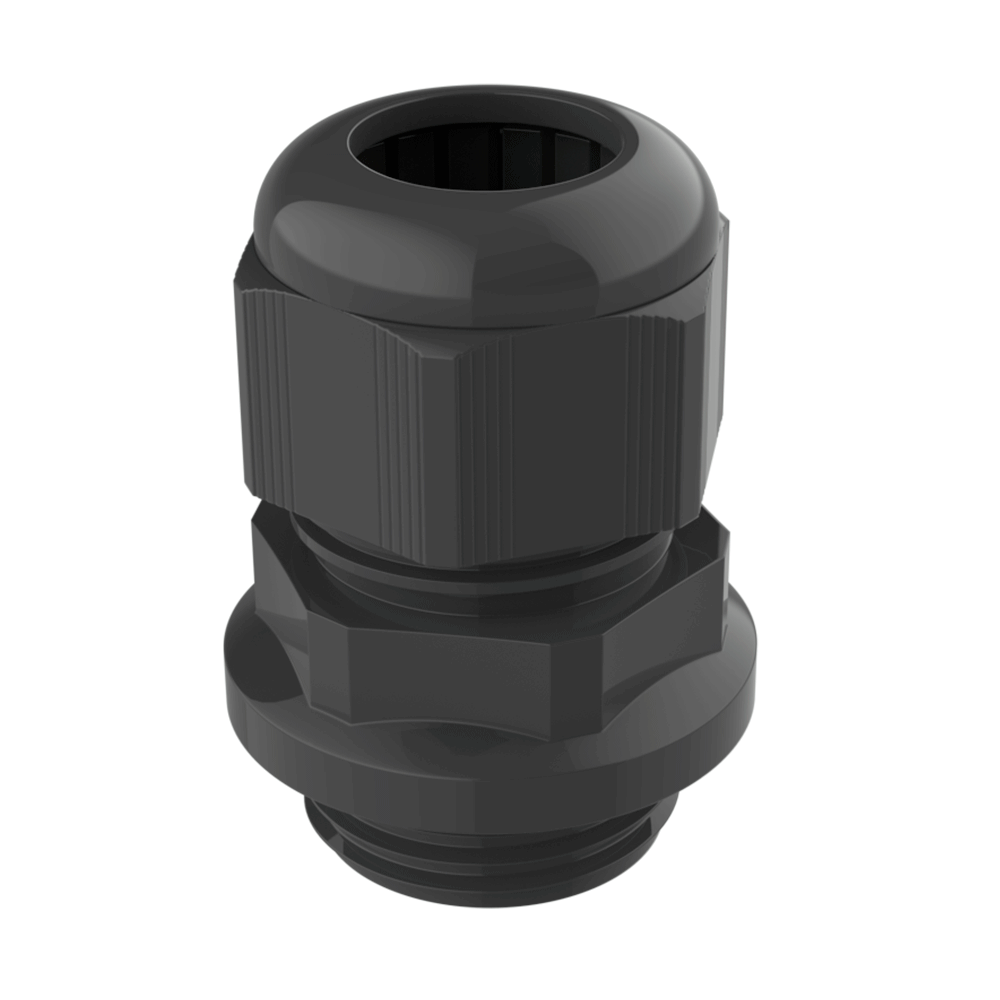

The PRPRO cable gland, featuring a laminar tightening system and manufactured in compliance with DIN EN 62444 / 50262 / 60423, includes a widened base with an O-ring groove, ensuring optimal sealing even on irregular surfaces.
When installed, the entire base makes contact with the surface, and the O-ring compresses against it, providing a strong fixation and extremely high sealing performance (up to IP69). Additionally, the base shape allows for precise installation even in holes with slight dimensional deviations from the thread.
Made from Polyamide 6 (PA6) and featuring an internal seal and O-ring made of Chloroprene (CR), it is available in the following colours: RAL 7035 (Light Grey), RAL 7001 (Dark Grey), RAL 9005 (Black). All colours are UV resistant (classified F1 according to UL 746C).

Technical specifications:

Operating temperature: -40 °C to +100 °C (peaks from -60 °C to +150 °C)

Protection rating: IP66 / IP68 (up to 10 bar) / IP69 / Type 4X

Flammability: UL94-V0 (flame retardant and self-extinguishing)

Standards and certifications: VDE (EN 62444) / UL (UL 514B, UL 746C) / CSA
Some regulations may not apply to all sizes. Please contact our sales office.

Optional: also available with O-ring and inner seal in NBR, a material especially resistant to oils.

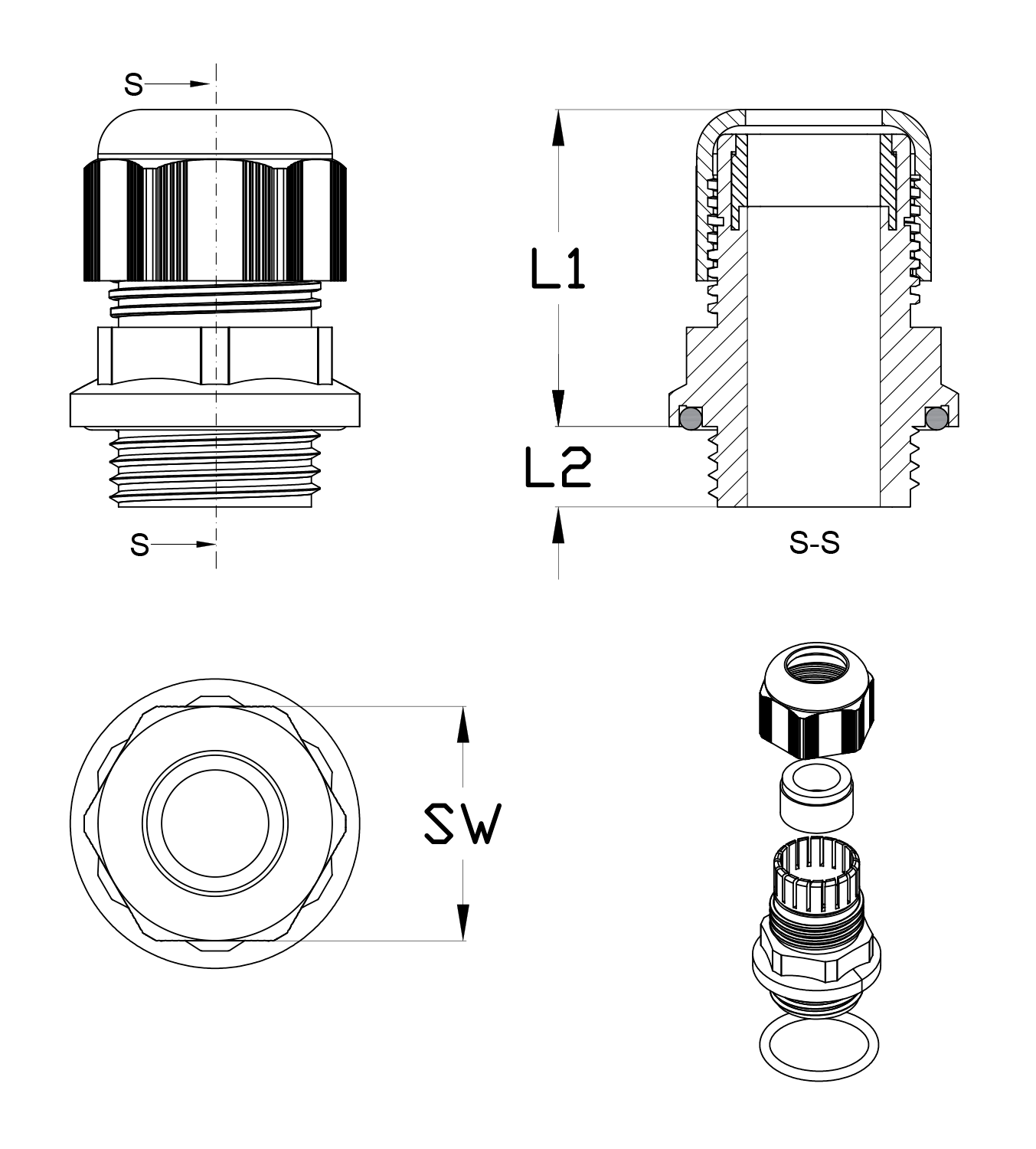

Drawing PDF:
UL94:   V0
IP:   66/68/69
RoHS:
Measures expressed in: Millimeters
