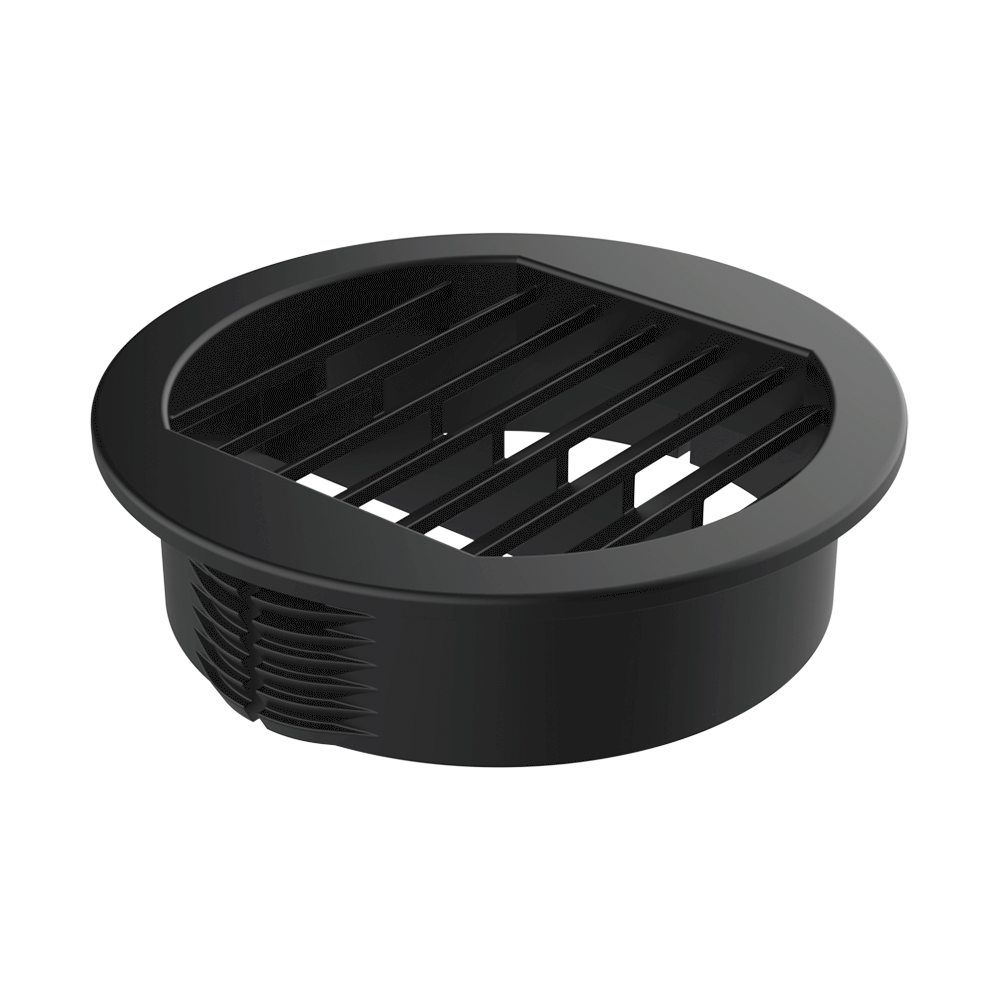

Our MVOB ventilation plugs are designed for passive ventilation in electrical cabinets and enclosures, helping to reduce heat build-up and internal condensation.

The front grille enables continuous airflow while protecting the mounting hole in industrial applications. Installation is push-fit and adaptable to the panel thickness.

· Material: polyamide 6 (PA6)
· Colours: black, white, grey
· Front design: ventilation grille
· Fixing: push-fit with elastic teeth

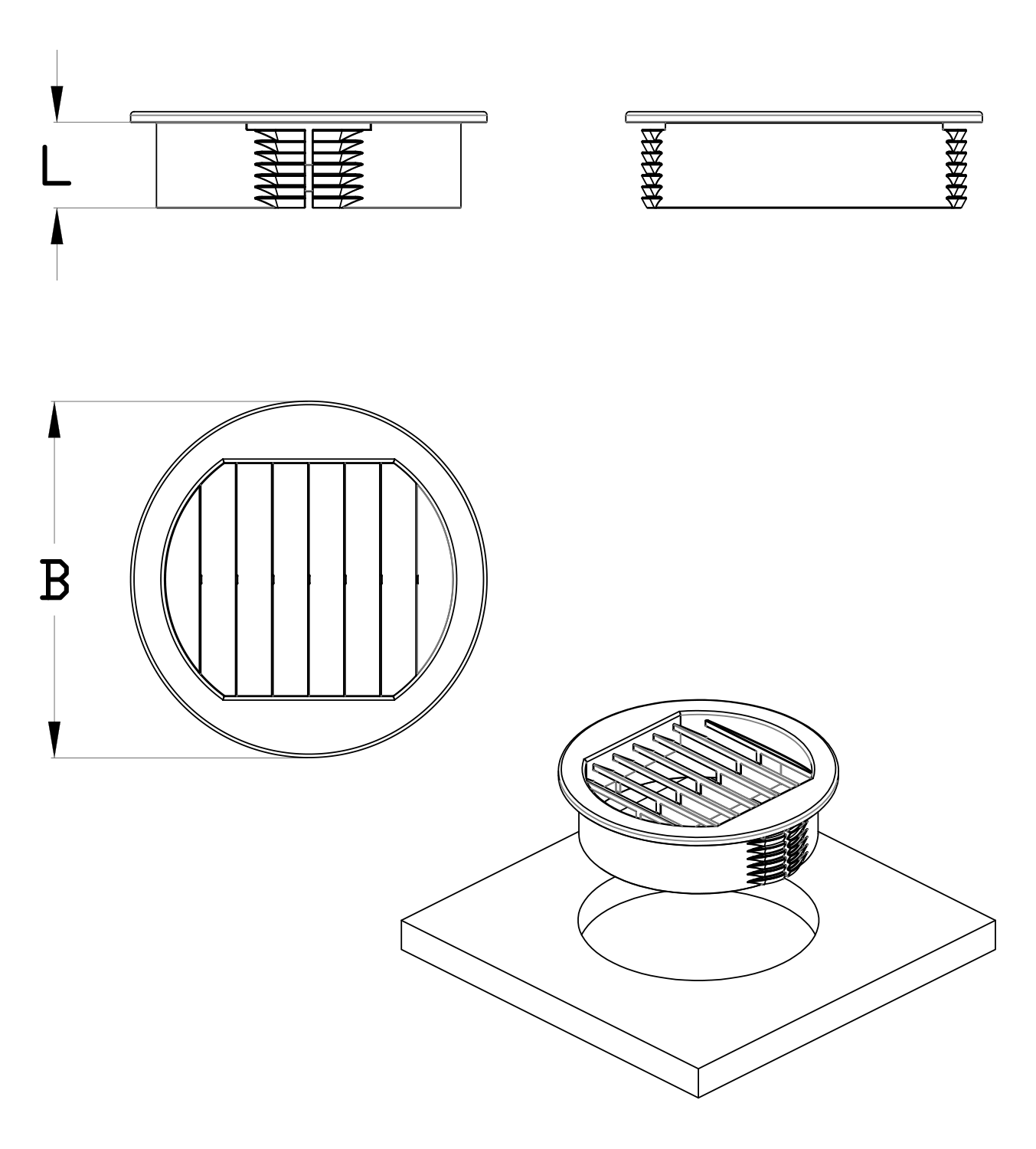

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Hole Size
B
L



More
Info.
02007000660 25,00 30,00 10,00
02007000661 43,00 50,00 12,00
02007000662 70,00 80,00 15,00
