Vent plug with grille - ISC Plastic Parts

Products

Our MVOA ventilation plugs are designed to allow ventilation and heat dissipation in enclosures, electrical cabinets and housings, reducing condensation and internal heat build-up.

Push-in ventilation plugs for panel mounting, available in two configurations depending on the required level of protection.

· Filterless version: direct ventilation with top grille to promote airflow and limit liquid ingress
· Filtered version: internal insert in expanded polyurethane (≥30 microns) allowing air passage while reducing the infiltration of dust, insects and liquids, without adhesives
· Fixing system: elastic snap-fit serrated shank adaptable to the panel thickness indicated in the table

Other colours available on request for minimum quantities.

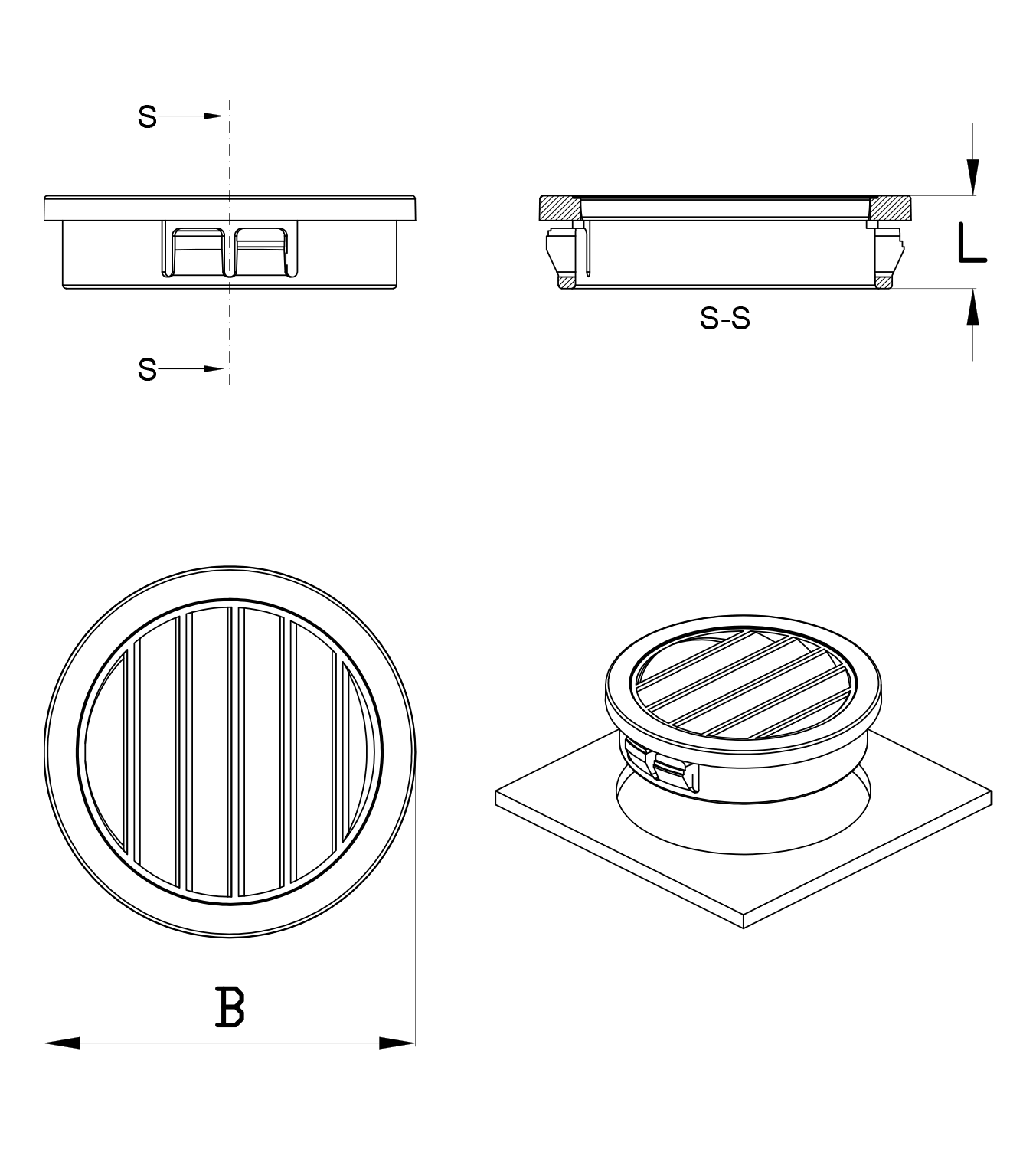

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Hole size (A)	Panel thickness max. (G)	B	L	With foam filter								More Info.

02007000650	22,20	3,20	25,80	13,50
02007000650	22,20	3,20	25,80	13,50
02007000651	25,40	3,20	30,60	13,50
02007000651	25,40	3,20	30,60	13,50
02007000652	27,80 to 28,60	3,20	30,90	13,50
02007000652	27,80 to 28,60	3,20	30,90	13,50
02007000653	34,90	3,20	38,10	13,80
02007000653	34,90	3,20	38,10	13,80
02007000654	38,10	3,20	42,60	13,80
02007000654	38,10	3,20	42,60	13,80
02007000655	50,80	3,20	55,10	13,80
02007000655	50,80	3,20	55,10	13,80
02007000656	63,50	6,40	69,00	20,90
02007000656	63,50	6,40	69,00	20,90
02007000657	76,20	6,40	80,50	20,90
02007000657	76,20	6,40	80,50	20,90
