Our MTOTB transparent oval plug is a snap-in plug with a flat head, made of polycarbonate, suitable for inspecting the inside of the structure and transmitting light.

Thanks to its fixing teeth, it snaps into place and adapts to the frame thickness up to the stated maximum.

· Material: polycarbonate
· Colour: transparent
· Operating temperature: max. +115 °C
· Flammability: UL94-V2, flame-retardant and self-extinguishing

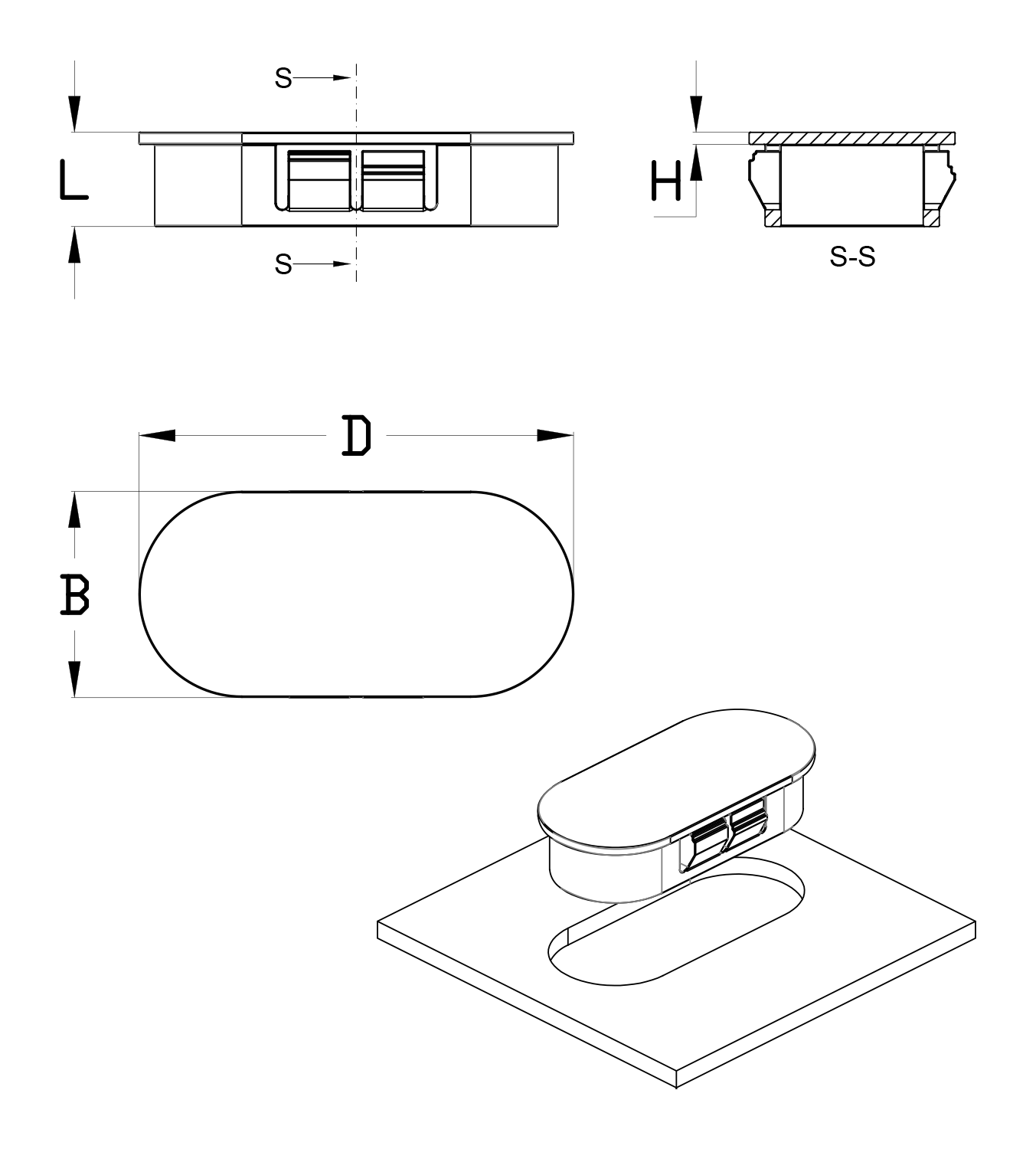

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Hole Size
Panel Thickness
H
D x B
L



More
Info.
02007000017 50,80 x 22,20 3,20 1,60 54,40 x 25,60 11,70
