Description and features
Our HYTB cable clamp is designed to secure cables by means of a screw and features a through hole for mounting.
Its configuration allows simple cable retention and direct mechanical fastening by screw.
· Material: PA66GF25
· Colour: Black or white
· Operating temperature: max. +120 °C
· Flammability: UL94-HB
Available in gold on request. Reference 02001001611PBT is manufactured in PBT and has a flame-retardant, self-extinguishing UL94-V0 rating.
Product images and technical drawings
Product view

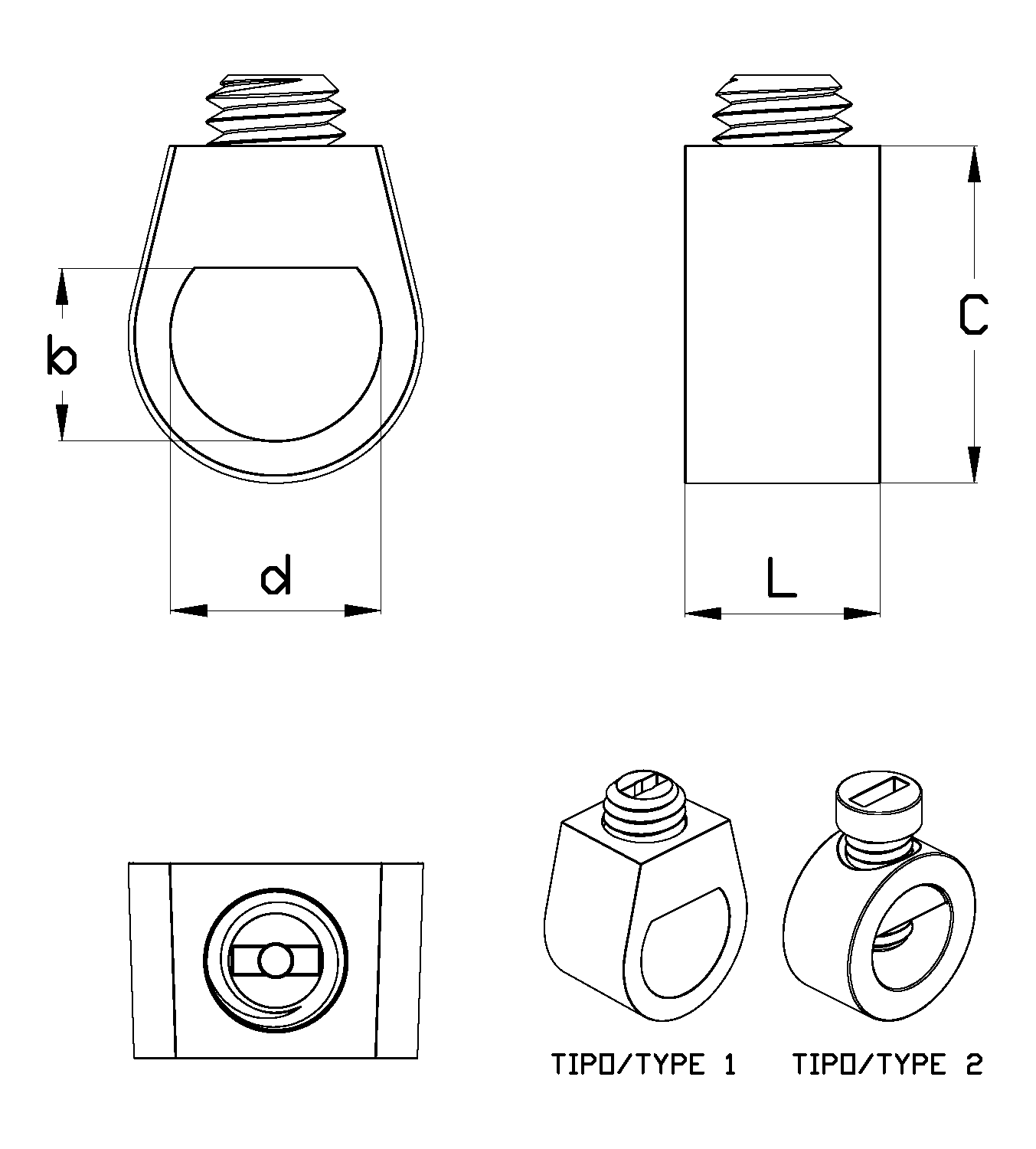

Technical drawing
Video
Part numbers and dimensions of Through-hole screw cable clamp
| Reference | d |
b |
L |
C |
Type |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02001001610 | 6,50 | 4,20 | 5,50 | 10,50 | 2 | ||||||||
| 02001001611 | 9,00 | 7,50 | 8,30 | 14,00 | 1 |
