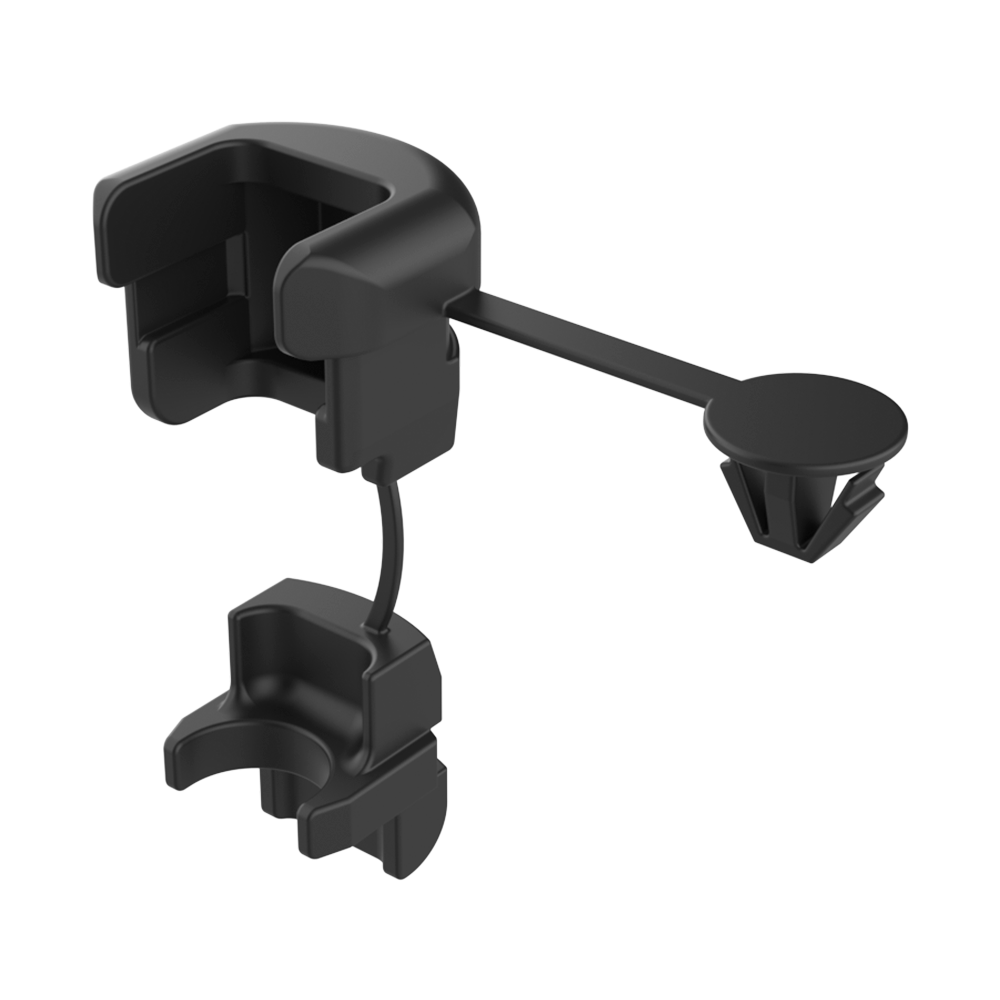

Our MPRYA cable retainer with anchoring is designed to meet European requirements whereby the cable retainer must remain attached to the panel during cable replacement or removal. Its snap-in mounting enables quick installation and provides effective strain relief for round cables.

It offers good resistance to chemicals and good electrical properties. It protects the cable against tensile, pushing and twisting forces. It incorporates a button lock flexibly connected to the body, which is inserted into an auxiliary panel hole to keep the cable retainer anchored during maintenance operations.

· Material: PA66 (Polyamide 66)
· Colour: Black
· Operating temperature: -18 °C to +105 °C
· Flammability and certifications: UL94-V2, UR, CSA

Available in white or other colours according to sample upon request and for certain quantities.

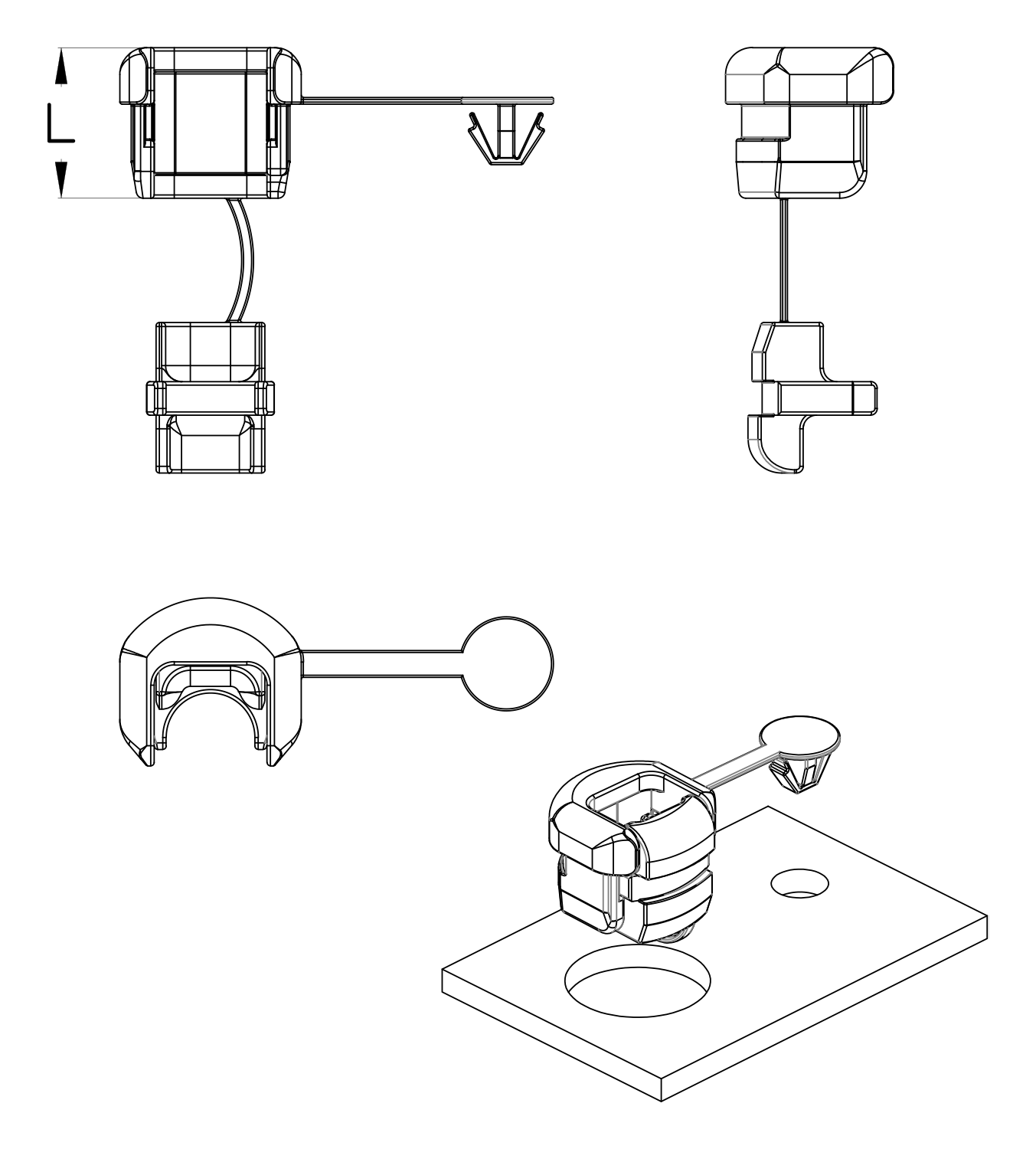

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Suitable for cable
Mounting hole
Anchoring hole
Max. panel thickness
L



More
Info.
02001000960 7,60 15,90 7,90 3,20 17,00
02001000961 8,30 to 9,10 15,90 7,90 3,20 15,90
