Description and features
Our MPRYC Strain Relief Bushing is a snap-in cable retention device with a captive locking screw designed to provide reliable mechanical and electrical protection for flat and round cables. It absorbs pull, push, twist and flex forces while complying with European requirements that the device remains attached to the panel during cable replacement or removal.
It offers good chemical resistance and excellent electrical properties. The captive screw presses an internal locking flap against the cable and cannot be removed from the housing. The bell-mouth entry allows wide cable movement, reducing cable wear. It installs without tools by snap-in mounting and adapts to the specified panel thickness.
· Material: PA66 (Polyamide 66)
· Colour: Black
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94-V2, self-extinguishing
· Certifications and standards: UL, UR, CSA, IEC 60335
Available on request, for production quantities, in white or other colours matching customer samples.
Product images and technical drawings
Product view

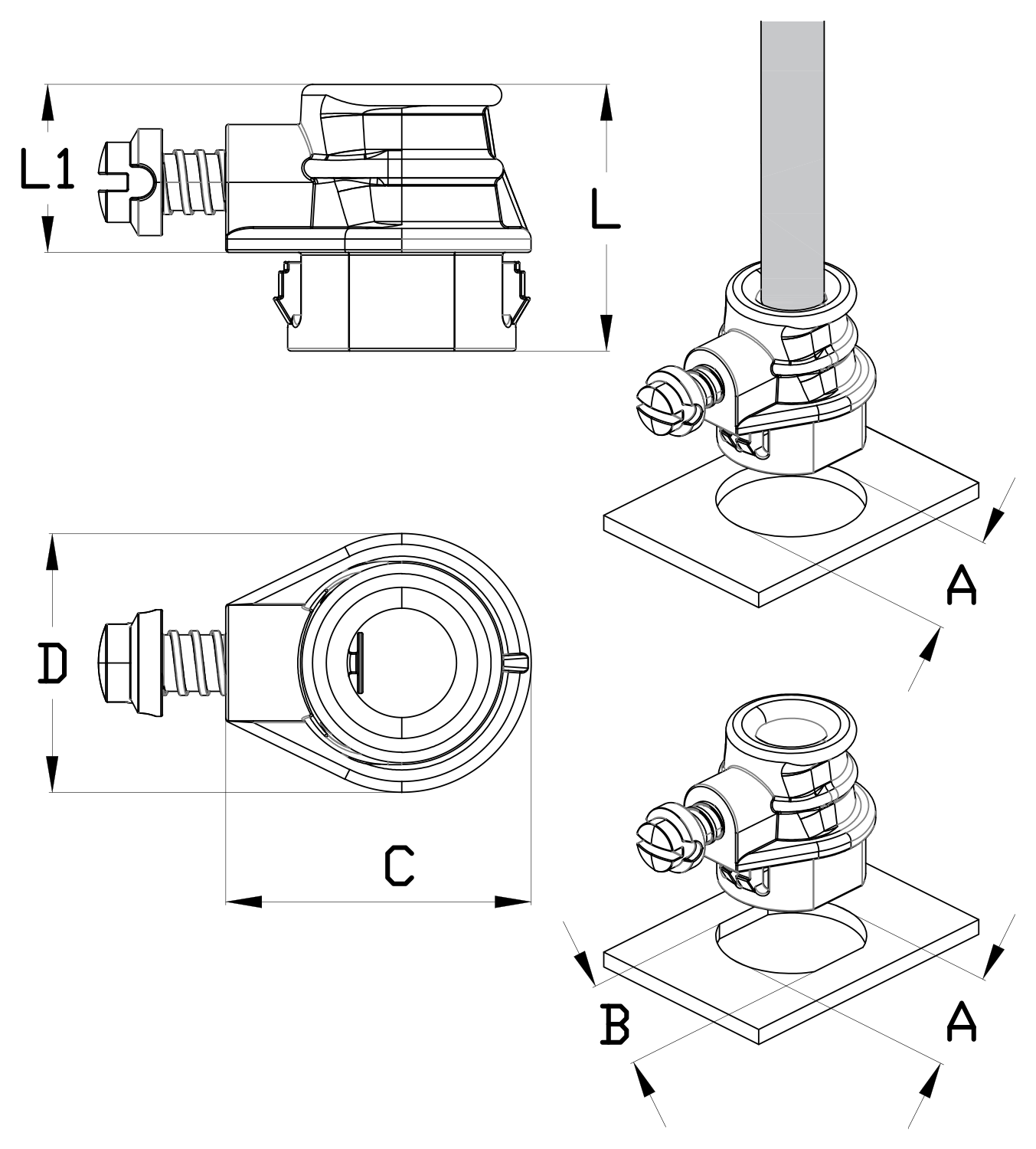

Technical drawing
Video
Part numbers and dimensions of Strain relief bushing with clamping screw
| Reference | Hole (A) |
Hole (A x B) |
Panel thickness |
L / L1 |
C / D |
Max. cable size |
Round cable |
Flat cable |
More Info. |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02001000982 | 22,20 | 22,20 x 19,60 | 1,60 to 3,20 | 25,40 / 16,00 | 29,20 / 24,60 | 9,10 | |||||||
| 02001000983 | 22,20 | 22,20 x 19,60 | 1,60 to 3,20 | 25,40 / 16,00 | 29,20 / 24,60 | 6,40 x 10,20 |
