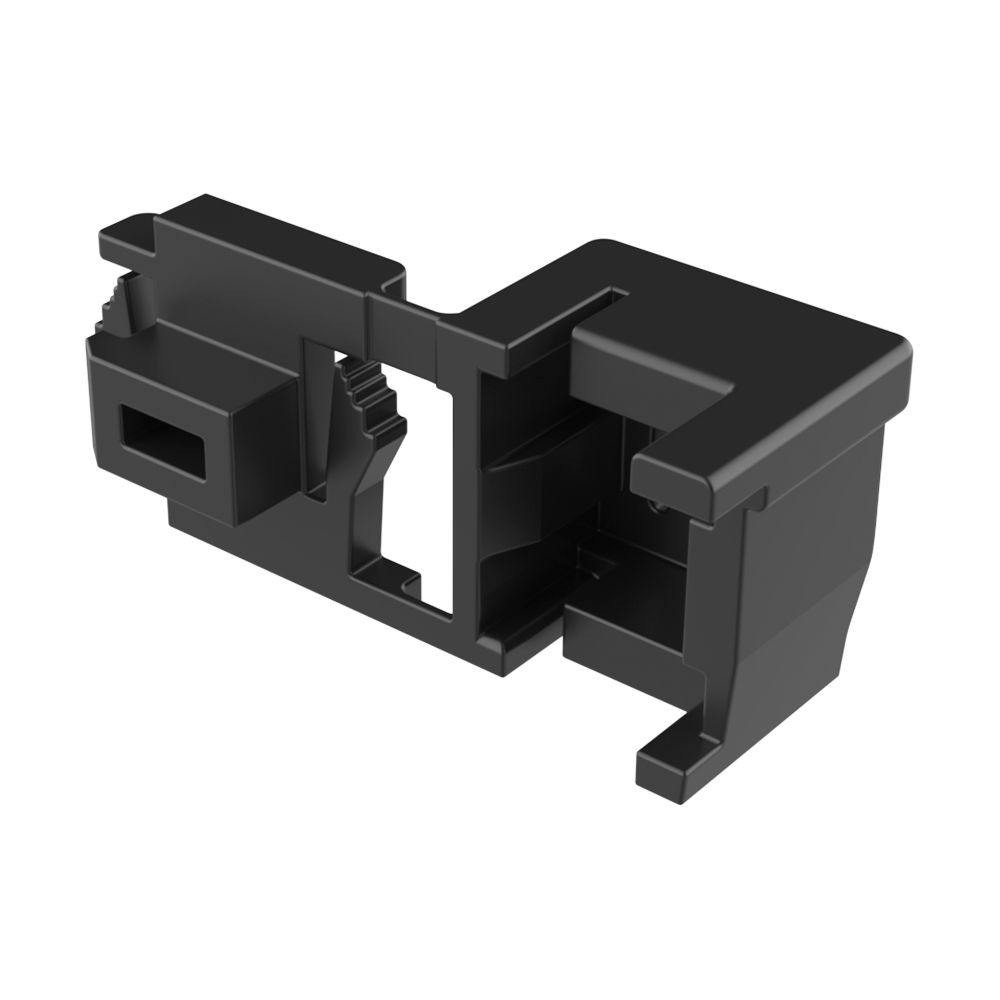

Our MPRXC cable retaining grommets are designed for the secure fixing of cables in square panel holes, providing reliable electrical and mechanical protection against pulling, pushing and twisting forces. Their design prevents rotation once installed and provides a neat finish thanks to their low-profile visible surface.

They can be pre-assembled onto the cable using the snap-fit closure, allowing installation at a later stage while reducing assembly time and costs. They are available for flat or round cables and can be installed manually in the structure without additional tools.

· Material: PA66 (Polyamide 66)
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94 V-2, self-extinguishing
· Certifications: UR and CSA

Available in white or other colours on request for specific quantities.

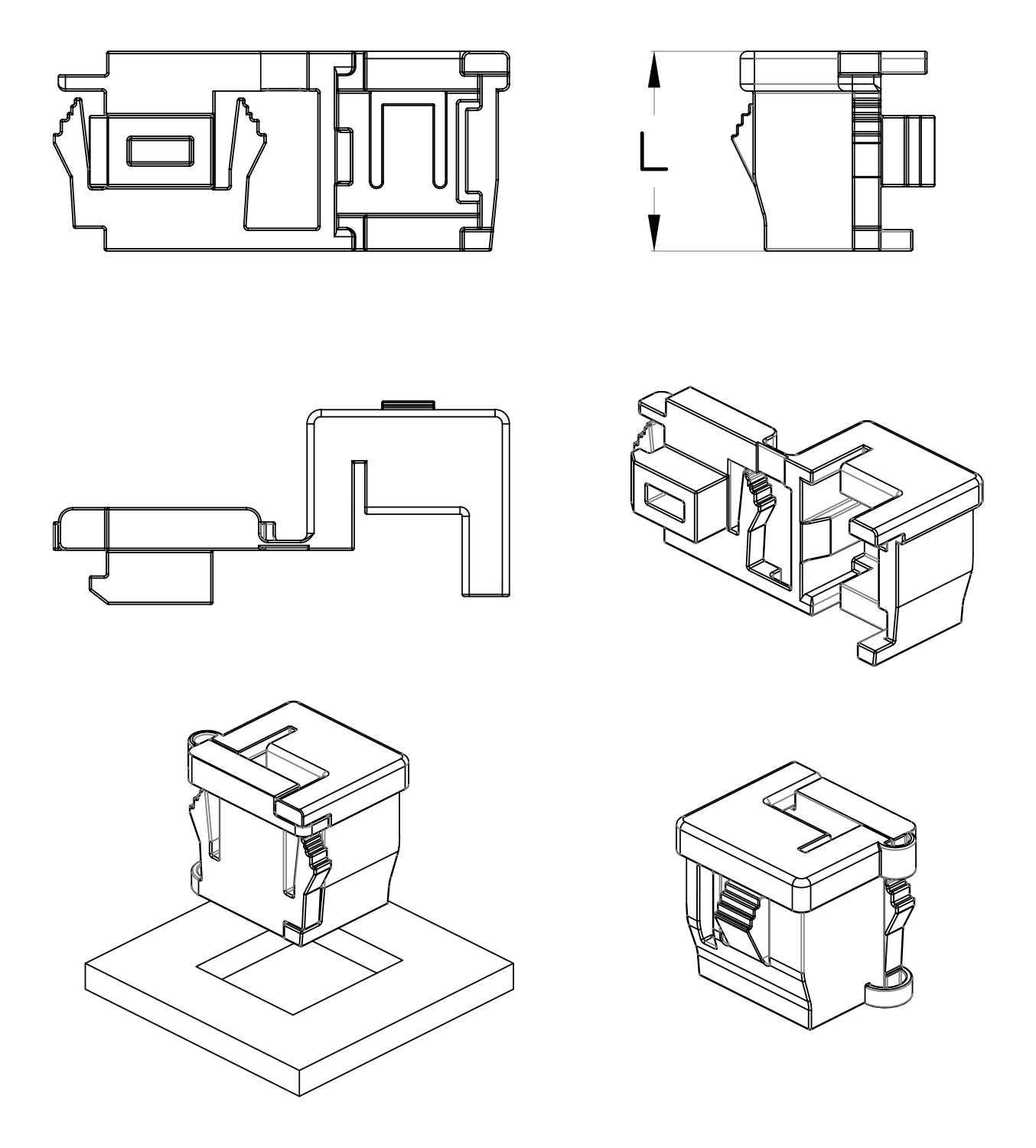

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:
