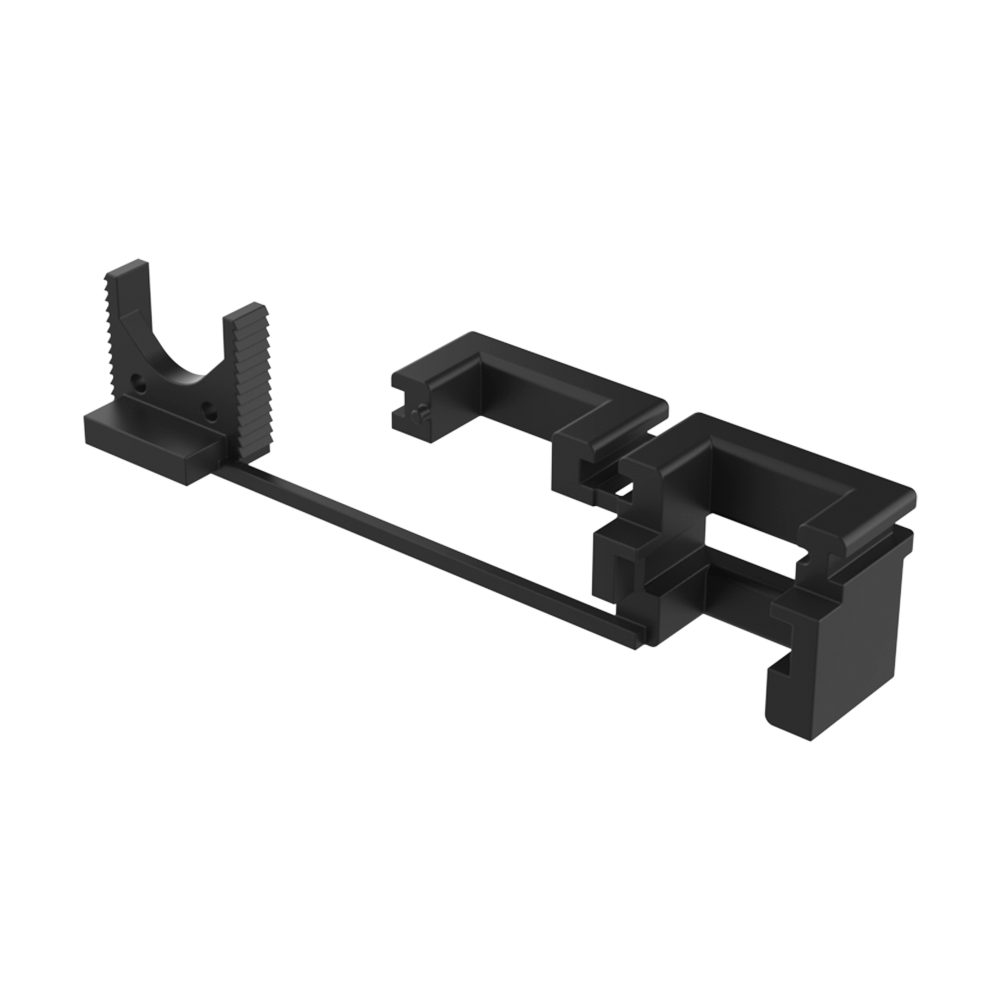

Our MPRXB cable strain relief bushings are designed to provide secure cable retention and reliable strain relief for installation in rectangular open slots or split panels, making them ideal for retrofit applications.

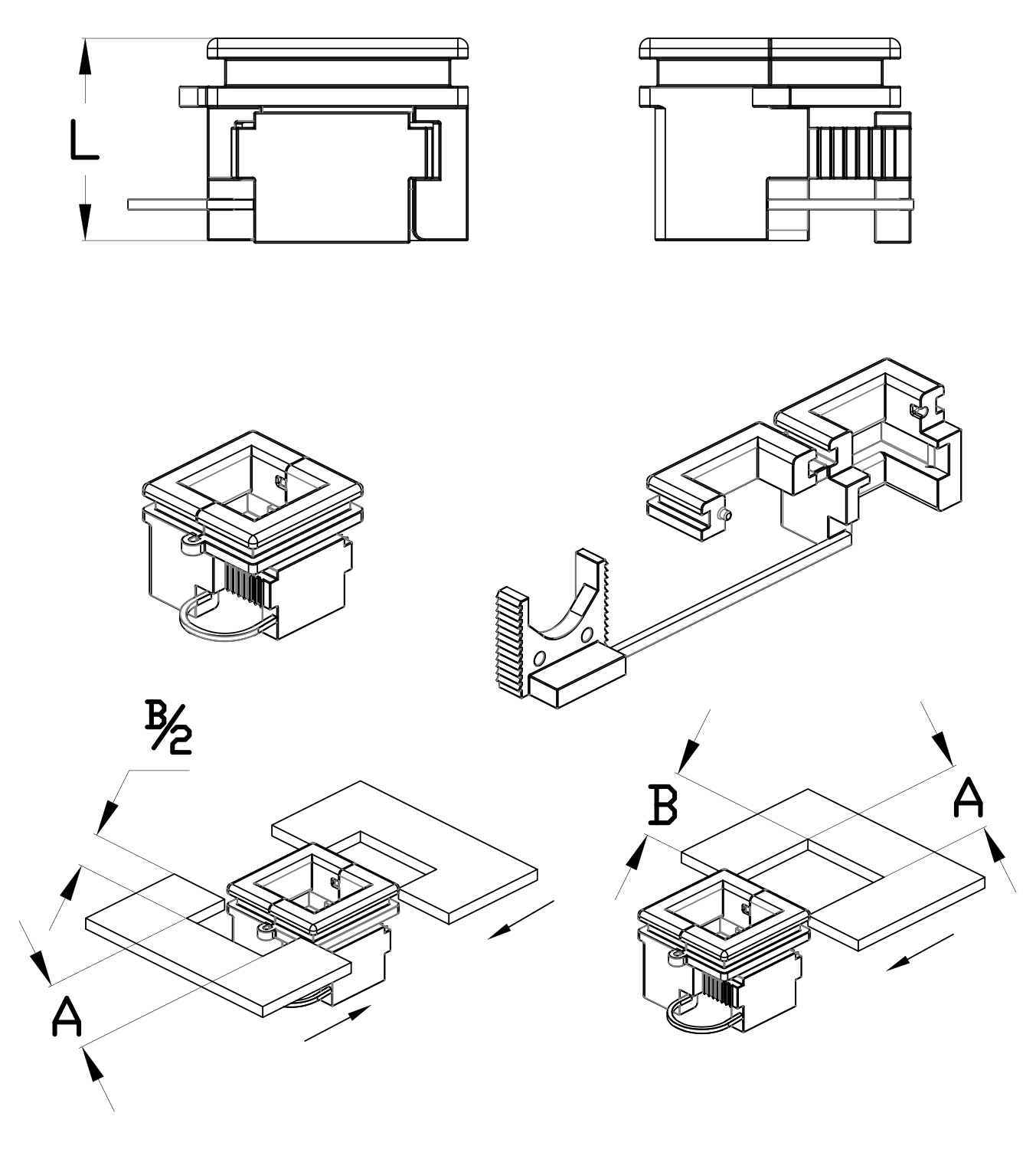

They offer good chemical resistance, excellent electrical properties and effective mechanical protection against pull, push and twisting forces. They are installed by sliding them into rectangular open slots, where their rectangular design prevents rotation after installation while the low-profile head provides a neat external appearance. The hinged locking system allows the part to be preassembled onto the cable before final installation, helping to reduce installation costs.
· Material: PA66 (Polyamide 66)
· Colour: Black
· Operating temperature: -18 °C to +105 °C
· Flammability: UL94-V2 self-extinguishing
· Approvals: UR and CSA
Available on request in white or other colours for specific quantities.
