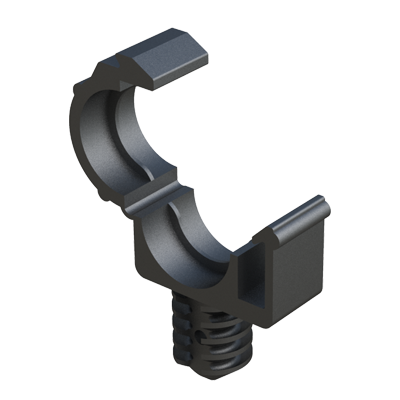

The split wire routing design allows loading of wires by separating the cup at the split and then inserting the prongs of the clip into a hole in the panel.

Material:  PA66
Standard colors: Natural - Black
Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Panel Hole Size
Panel Thickness
D
E
F
A
B

PDF
3D IGS
Add
00101100539 6,35 0,76 to 3,18 12,70 1,98 5,16 9,53 11,11
