Our end fittings for square tubes have been designed with lateral openings to accommodate the hooks for connecting the supports in modular metal shelving systems.
They are suitable for tubes and deep holes where there may be sharp edges and variations in shape.
They can also be used as conventional end caps.
They are also available for rectangular tubes: LFA.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
For Tube (D x B)
Tube Thickness
d x b
H
L
C



More
Info.
00300401225 30 x 30 1,50 28,30 x 28,30 4,50 16,00 19,00

If you are interested in our family LFAA, you may be interested in these families as well:

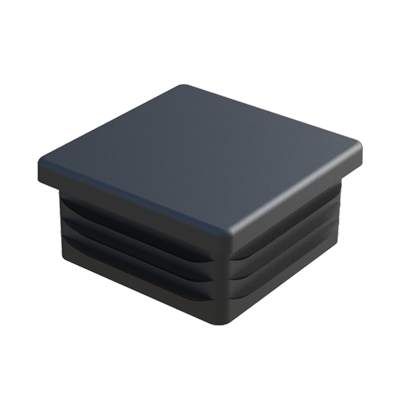

LE end caps are designed to ensure <b>secure fastening</b>, <b>easy assembly</b>, and a <b>high-quality finish</b> thanks to the rounded shape of their head. They are used to seal tubes and/or various openings that must withstand mechanical stress and are <b><i>recommended as end caps for chairs and/or furniture</b></i>.
<br>
For use as sliding stoppers and to facilitate easy assembly in tubes with thicker walls, we recommend chamfering the tube's inner diameter (approx. 0.3 - 0.5 x 60°).
<br>
<b>Special colors</b>, <b>company logos</b>, and production using <b>TPE material</b> (non-slip, sound-reducing, and resistant to a wider temperature range) are available upon request—please contact us.
<br>
Due to technical production reasons, a residual gate may exceed the L dimension. Depending on the selected item, the surface finish may vary between polished and textured.

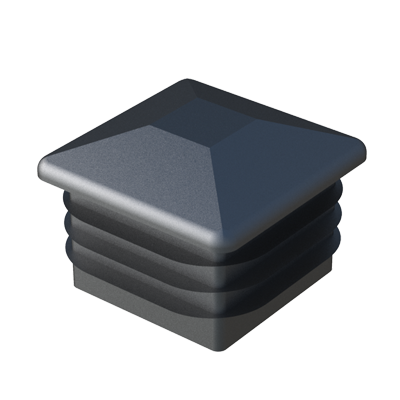

<br>   Our square ribbed tube insert has been designed for getting a good finishing part. It is also available for rectangular tubes: LFS.
