Description and features
Our HTYC cable clamp features a cylindrical design with an internal thread for securing cables by means of a screw.
· Material: Glass-fibre reinforced PA66
· Colour: Black or white
· Operating temperature: max. +120 °C
· Transparent version: Polycarbonate (PC), max. +120 °C, with a glossy, high-quality aesthetic finish, ideal for the exterior of luminaires
Available in gold on request.
Product images and technical drawings
Product view

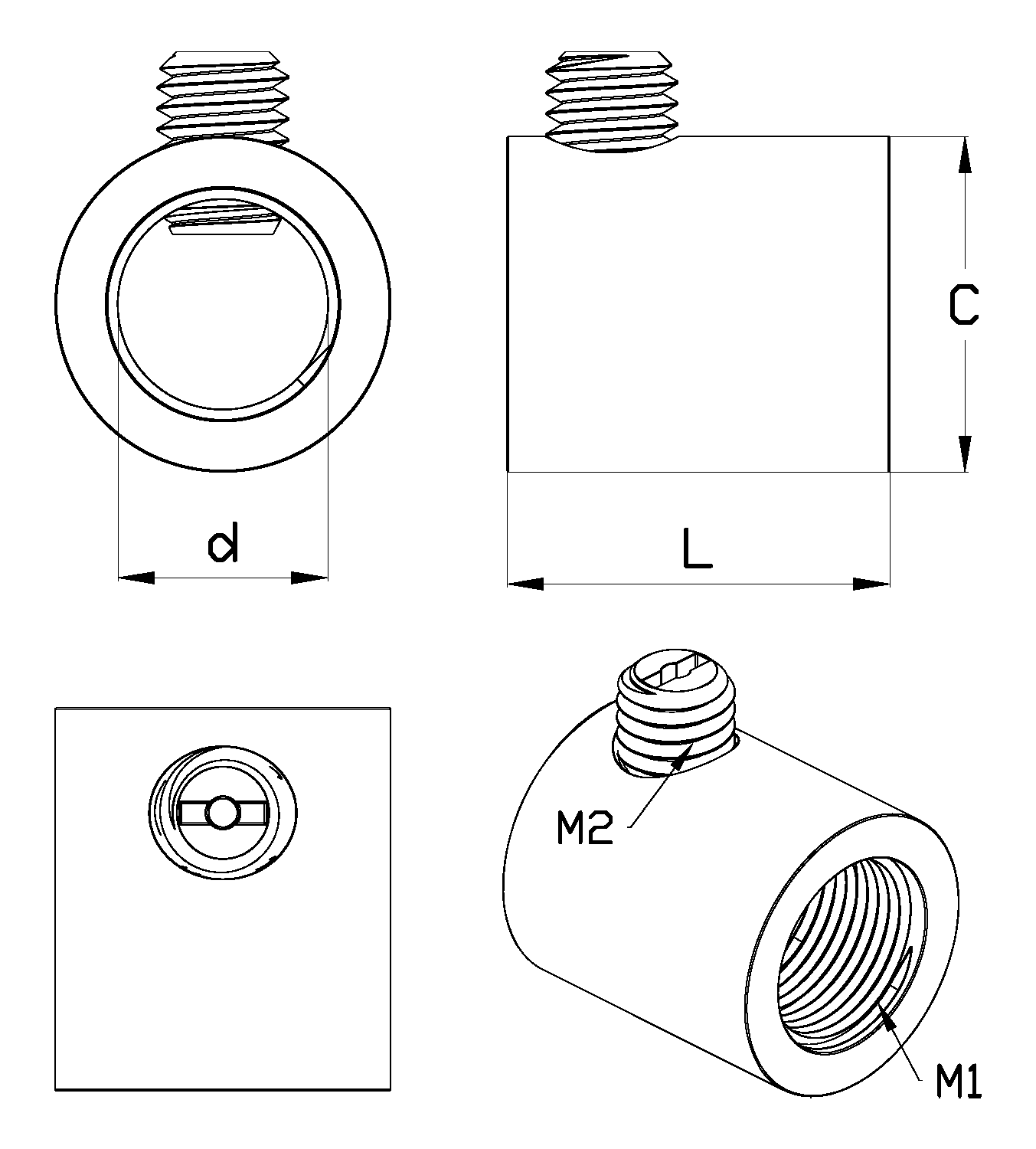

Technical drawing
Video
Part numbers and dimensions of Screw cable clamp with internal thread
| Reference | d |
M1 |
M2 |
L |
C |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02001001615 | 6,00 x 4,00 | M8 x 1 | M6 x 1 | 15,30 | 12,00 | ||||||||
| 02001001616 | 6,00 | M10 x 1 | M7 x 1 | 16,50 | 14,50 | ||||||||
| 02001001617 | 6,00 | M10 x 1 | M7 x 1 | 16,50 | 14,50 |
