Our HYTD cable clamp is designed for securing cables by means of a screw, features an internal thread and is supplied with a nipple for wall mounting. It is approved for Class I applications.

· Material: Glass-fibre reinforced PA66
· Colour: Black or white
· Operating temperature: max. +120 °C
· Flammability: UL94-HB

Available in gold on request. Reference 02001001623PBT is manufactured in PBT and has a flame-retardant, self-extinguishing UL94-V0 rating.

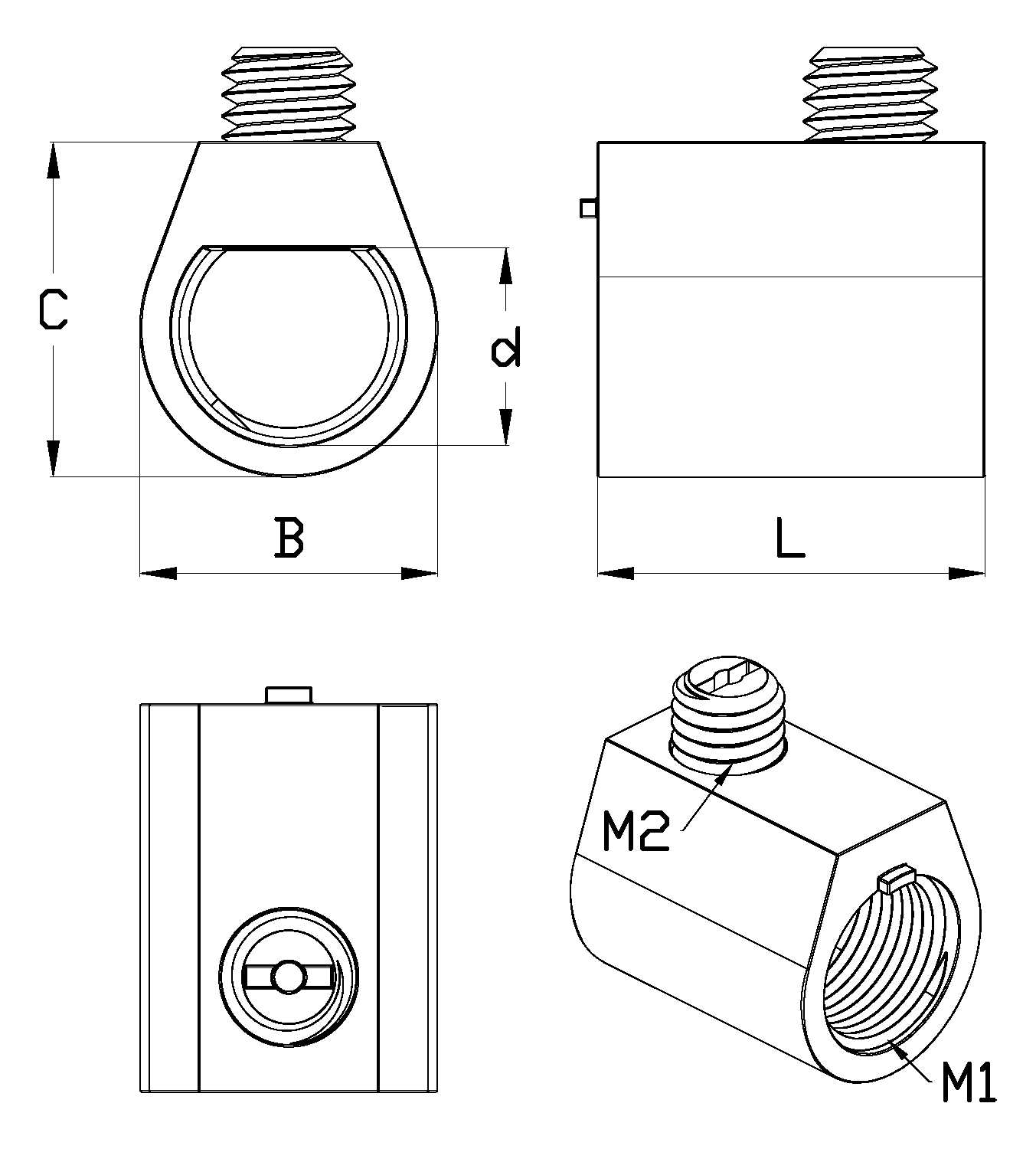

Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
d
M1
M2
L
B
C



More
Info.
02001001620 4,00 x 6,00 M8 x 1 M6 x 1 19,00 12,00 12,00
02001001621 5,60 M10 x 1 M7 x 1 20,50 14,50 14,50
02001001622 7,00 M10 x 1 M7 x 1 21,00 13,50 16,00
02001001623 9,50 M13 x 1 M8 x 1,25 31,00 18,50 20,00
