Our saddle washer-spacer for round tube has been designed for connecting parallel tubes from 12 to 42 mm. We have a broad range of tube connectors, please visit our family range: Connectors.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:


Reference
For Tube
A
B
T
r



More
Info.
00300200824 12 to 14 11,00 5,20 2,50 6,00
00300200825 16 to 20 15,00 6,20 7,50 8,00
00300200826 16 to 20 15,00 6,20 10,00 8,00
00300200827 16 to 20 15,00 6,20 12,50 8,00
00300200828 16 to 20 15,00 6,20 15,00 8,00
00300200829 16 to 20 15,00 6,20 17,50 8,00
00300200830 18 to 20 17,00 5,20 2,50 9,00
00300200831 18 to 20 17,00 6,20 2,50 9,00
00300200832 20 to 23 19,00 5,20 3,00 10,00
00300200834 20 to 23 19,00 5,20 11,50 10,00
00300200833 20 to 23 19,00 6,20 3,00 10,00
00300200835 20 to 23 19,00 6,20 11,50 10,00
00300200836 24 to 26 22,00 6,20 3,00 12,00
00300200837 24 to 26 22,00 8,20 3,00 12,00
00300200838 25 to 28 22,00 8,20 3,00 12,50
00300200839 25 to 28 22,00 8,20 5,00 12,50
00300200840 25 to 28 22,00 8,20 7,50 12,50
00300200841 25 to 28 22,00 8,20 10,00 12,50
00300200842 25 to 28 22,00 8,20 12,50 12,50
00300200843 25 to 28 22,00 8,20 15,00 12,50
00300200844 25 to 28 22,00 8,20 17,50 12,50
00300200845 25 to 28 22,00 8,20 20,00 12,50
00300200846 25 to 28 22,00 8,20 22,50 12,50
00300200902 25 to 28 22,00 8,20 25,00 12,50
00300200903 25 to 28 22,00 8,20 27,50 12,50
00300200904 25 to 28 22,00 8,20 30,00 12,50
00300200905 29 to 32 25,00 8,20 3,00 14,50
00300200906 29 to 32 25,00 8,20 5,00 14,50
00300200907 29 to 32 25,00 8,20 7,50 14,50
00300200908 29 to 32 25,00 8,20 10,00 14,50
00300200909 29 to 32 25,00 8,20 12,50 14,50
00300200910 29 to 32 25,00 8,20 15,00 14,50
00300200911 29 to 32 25,00 8,20 17,50 14,50
00300200912 29 to 32 25,00 8,20 20,00 14,50
00300200913 29 to 32 25,00 8,20 22,50 14,50
00300200914 29 to 32 25,00 8,20 25,00 14,50
00300200915 29 to 32 25,00 8,20 27,50 14,50
00300200916 29 to 32 25,00 8,20 30,00 14,50
00300200917 30 to 34 28,00 6,20 3,50 15,00
00300200918 30 to 34 28,00 8,20 3,50 15,00
00300200919 30 to 34 28,00 10,20 3,50 15,00
00300200920 38 to 42 35,00 6,20 5,00 19,00
00300200921 38 to 42 35,00 8,20 5,00 19,00
00300200922 38 to 42 35,00 10,20 5,00 19,00

If you are interested in our family LTSS, you may be interested in these families as well:

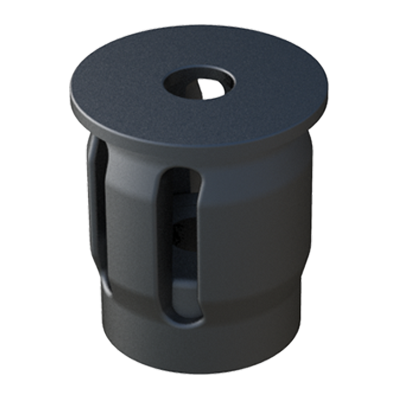

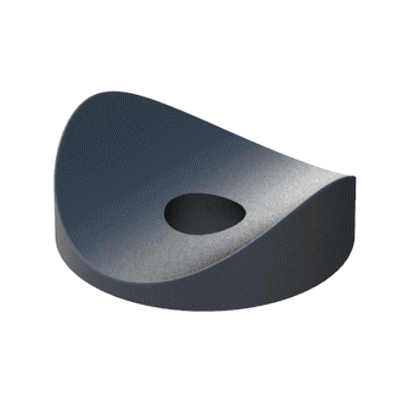

Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.   Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.   Adapter to connect transversely round tubes, in combination with our connectors indicated in suggestions.   Our connector for round tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.
