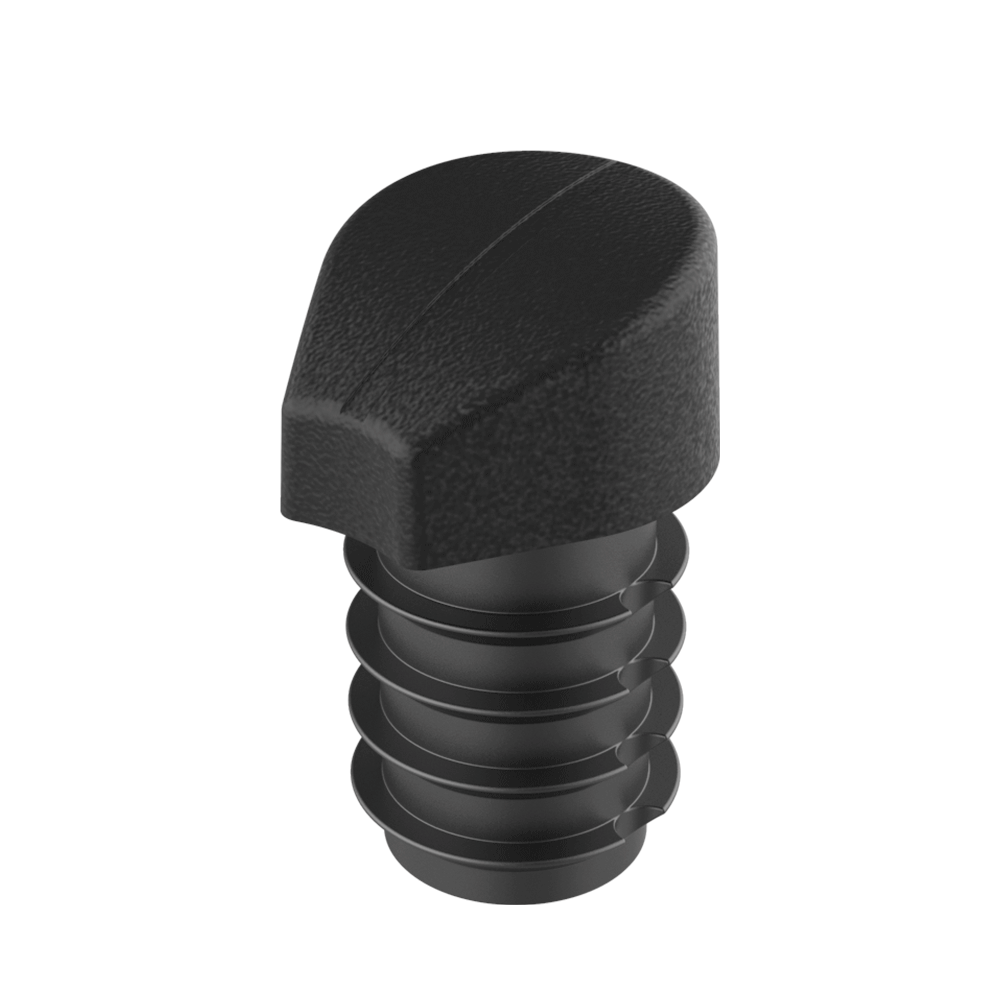

Our ribbed tube insert with sloping base is for round tubes, it has been designed for piling up chairs. It is available with a felt base.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:


Reference
For Tube (D)
Tube Thickness
Inclination
H
d
L
d1



More
Info.
00300400929 18,00 1,50 to 2,00 12º to 18º 11,40 12,00 21,00 15,60
00300400930 18,00 1,50 to 2,00 18º to 22º 13,70 12,00 21,00 15,60
00300400931 20,00 1,50 to 2,00 12º to 18º 12,10 14,00 23,00 17,60
00300400932 20,00 1,50 to 2,00 18º to 22º 14,50 14,00 23,00 17,60
00300400933 22,00 1,50 to 2,00 12º to 18º 12,90 16,00 25,00 19,60
00300400934 22,00 1,50 to 2,00 18º to 22º 15,30 16,00 25,00 19,60
00300400935 25,00 1,50 to 2,00 12º to 18º 13,80 19,00 28,00 22,60
00300400936 25,00 1,50 to 2,00 18º to 22º 16,30 19,00 28,00 22,60

If you are interested in our family LGS, you may be interested in these families as well:

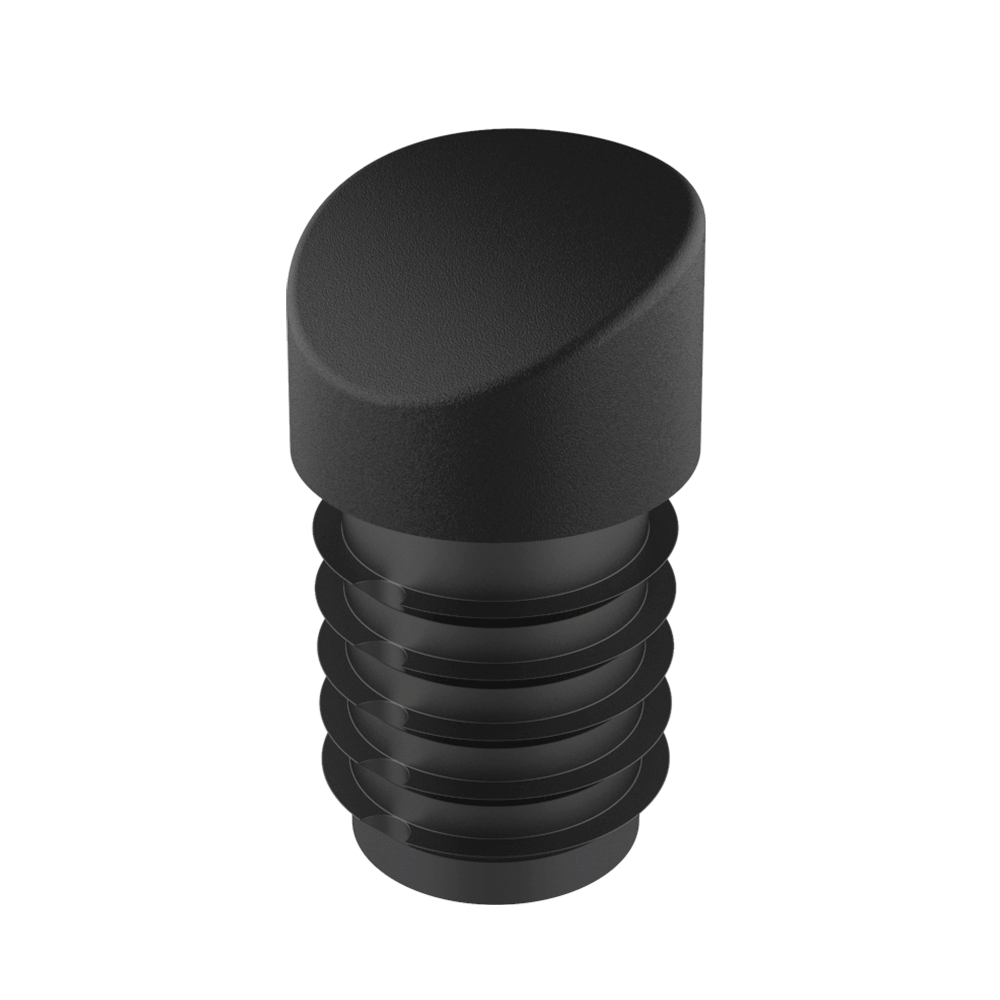

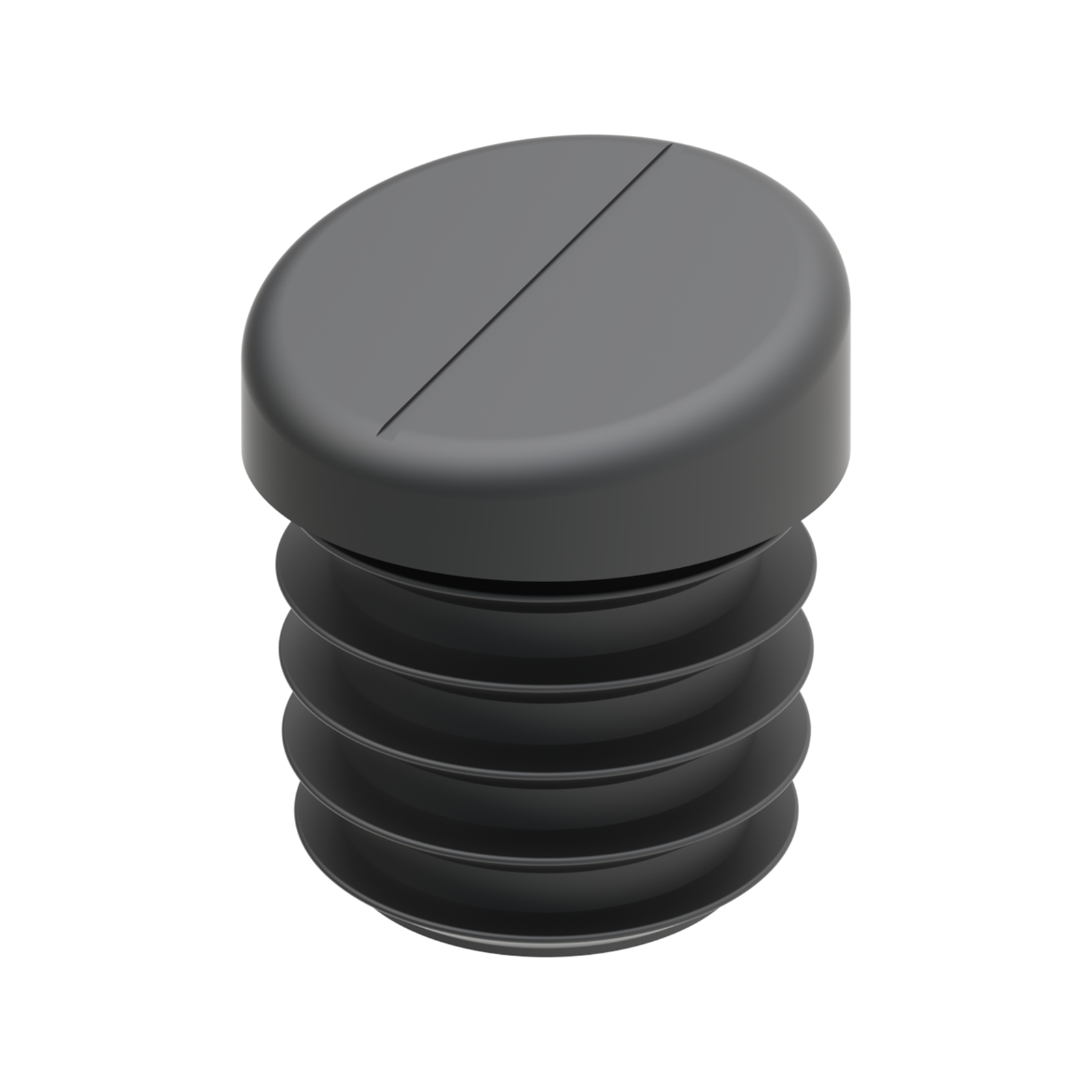

Our ribbed insert with a sloping base for round tubes is ideal for chairs or applications of round tubes that require a fixed inclination . It goes from an inclination of 9º to an inclination of 22º, depending on the reference.   Our tube insert for round tubes LGRL has an angle which goes from 8º to 12º or from 18º to 22º, and it is ideal for chairs. It can be produced in <b> RAL colors</b> on demand and its base is produced and offered in various materials. As a sum up, here goes their caracteristics:
<br><br>
* <i><b>LDPE base (polyethylene)</b></i>: good sliding for multi-surface floors.
<br>
* <i><b> FELT base (felt)</b></i>: good sliding, scratch-proof, and sound-proof, for parquet flooring, wood and ceramic flooring.<br>
* <i><b>PA6 base (nylon)</b></i>: good sliding and no wear-down. For parquet and wood flooring.
<br>
* <i><b>POM+PTFE base(pom+teflon)</b></i>: good sliding,  friction-proof, vibration-proof and chemically resistant. For textile flooring like carpet or rugs
<br>
* <i><b>PUR base (polyurethane)</b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring.
<br>
* <i><b> EVA body (foamy) with POM+PTFE (pom+teflón)</b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring. Recommended to reduce sound (meeting rooms, theaters)...
<br>   Our ribbed tube insert with sloping base for round tubes has been designed for piling up chairs.   Our ribbed tube insert with sloping base is for round tubes, it has been designed for piling up chairs. It is available with a felt base.
