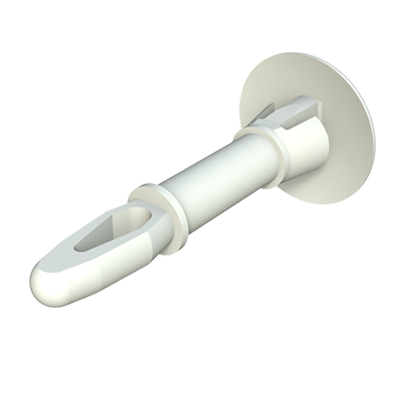

Our reverse locking PCB support substitutes very easily the regular supports that use screws. One of the ends can easily be released for quick substitutions. It is very useful for elements that must be removed frequently, and it has a high workability.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
L
Hole size
Anchor 1
Hole size
Anchor 2
Panel thickness 1
Panel thickness 2
H1 / H2
A1 / A2
C / D



More
Info.
03501400060 5,00 6,50 4,00 1,60 to 2,00 1,60 1,50 / 10,10 10,20 / 4,50 2,50 / 5,00
01301400100 4,80 4,00 1,57 4,75 0,79 to 1,98
00101100209 6,50 4,75 3,18 1,50 to 1,60 1,50 to 1,60 1,52 / 8,74 9,53 / 3,70 2,00 / 4,35
01301400103 7,90 4,75 3,18 1,50 to 1,60 1,57 1,2 / 8,7 9,5 / 3,7 2 / 4,4
00101100210 9,50 4,75 3,18 1,50 to 1,60 1,50 to 1,60 1,52 / 8,74 9,53 / 3,70 2,00 / 4,35
01301400130 9,50 6,00 4,00 1,60 0,80 to 1,20 · / 10,20 10,00 / 4,45 2,50 / ·
03501400050 9,65 4,75 3,18 1,50 to 1,60 1,60 1,40 / 8,70 9,50 / 3,53 2,00 / 4,20
01301400051 12,70 6,00 4,00 1,60 0,80 to 1,20 / 10,20 10,00 / 4,45 2,50 /
03501400100 15,95 5,40 4,00 1,20 to 2,00 1,60 1,50 / 10,00 12,70 / 4,50 4,80 / 2,50
00101100240 16,00 5,40 4,00 1,50 to 1,60 1,50 to 1,60 1,60 / 10,31 12,80 / 4,50 2,35 / 5,20
