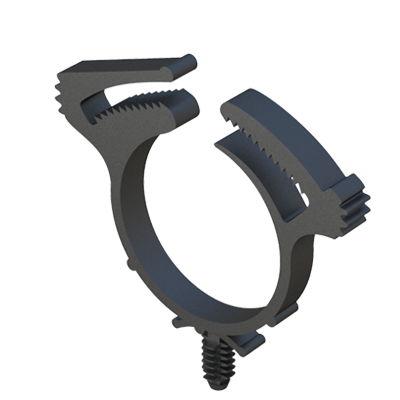

Releasable clamp with fin clip base and variable panel thickness.

Material: PA66
Standard colors: Natural - Black
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Drawing PDF:


Reference
Hole size
Panel thickness
D
A
B
C

PDF
3D IGS
Add
00101100058 4,75 1,00 to 8,00 9,53 8,74 14,27 4,75
00101100059 4,75 1,00 to 8,00 12,70 8,74 14,27 4,75
00101100063 6,35 1,00 to 8,00 12,70 8,74 14,27 4,75
00101100060 6,35 1,00 to 8,00 25,40 8,74 15,88 9,53

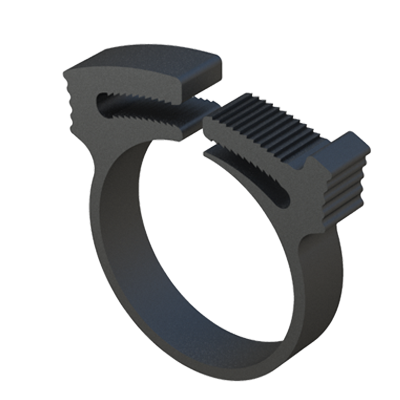

If you are interested in our family MACR, you may be interested in these families as well:


This hose clamp is almost identical to the ones of our groups MA and MAZ but with a fin clip base for fixing in a 4.75 mm hole. Installation tools for large series are available, see our groups MHAN and MHANZ (2 pneumatic models).
Our double grip hose clamp features a double tooth interlocking jaw for exceptional strength. The hose clamps are easy and quick to install. An overlapping tapered ring is fastened around the hose or tubing and secured to the required tightness by compressing the double griping interacting grooves in a ratcheting fashion, creating a tight sealing application. Clamps have good chemical resistance a...
