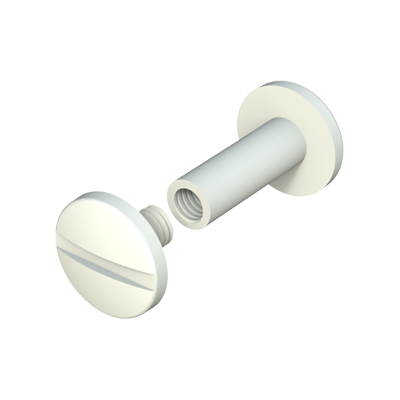

Our rapid assembly post and pin is specific for application on parts subject to movement. One of the most popular applications is for swatch books. We offer the set male+female together.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

MRMHF
MRMHF

Reference
Hole size
L
A
C
D
H
Type



More
Info.
00100300808 · 10,80 11,10 · · 1,98 Male
00100300805 6,00 12,70 9,91 5,44 3,10 1,78 FEMALE
00100300803 6,00 15,88 9,91 5,44 3,10 1,78 FEMALE
00100300807 6,00 19,05 9,91 5,44 3,10 1,78 FEMALE
00100300806 6,00 25,40 9,91 5,44 3,10 1,78 FEMALE
00100300804 6,00 31,75 9,91 5,44 3,10 1,78 FEMALE

If you are interested in our family MRMHF, you may be interested in these families as well:

Our extended assembly post and screw is specific for application on parts subject to movement. One of the most popular applications is with swatch books. We offer the set male+female together.
