Quick installation cable tie - ISC Plastic Parts

Products

FAMILY UNDER CONSTRUCTION! We are working to improve and expand our product catalog.
Please, for more information about the product, contact our commercial office.

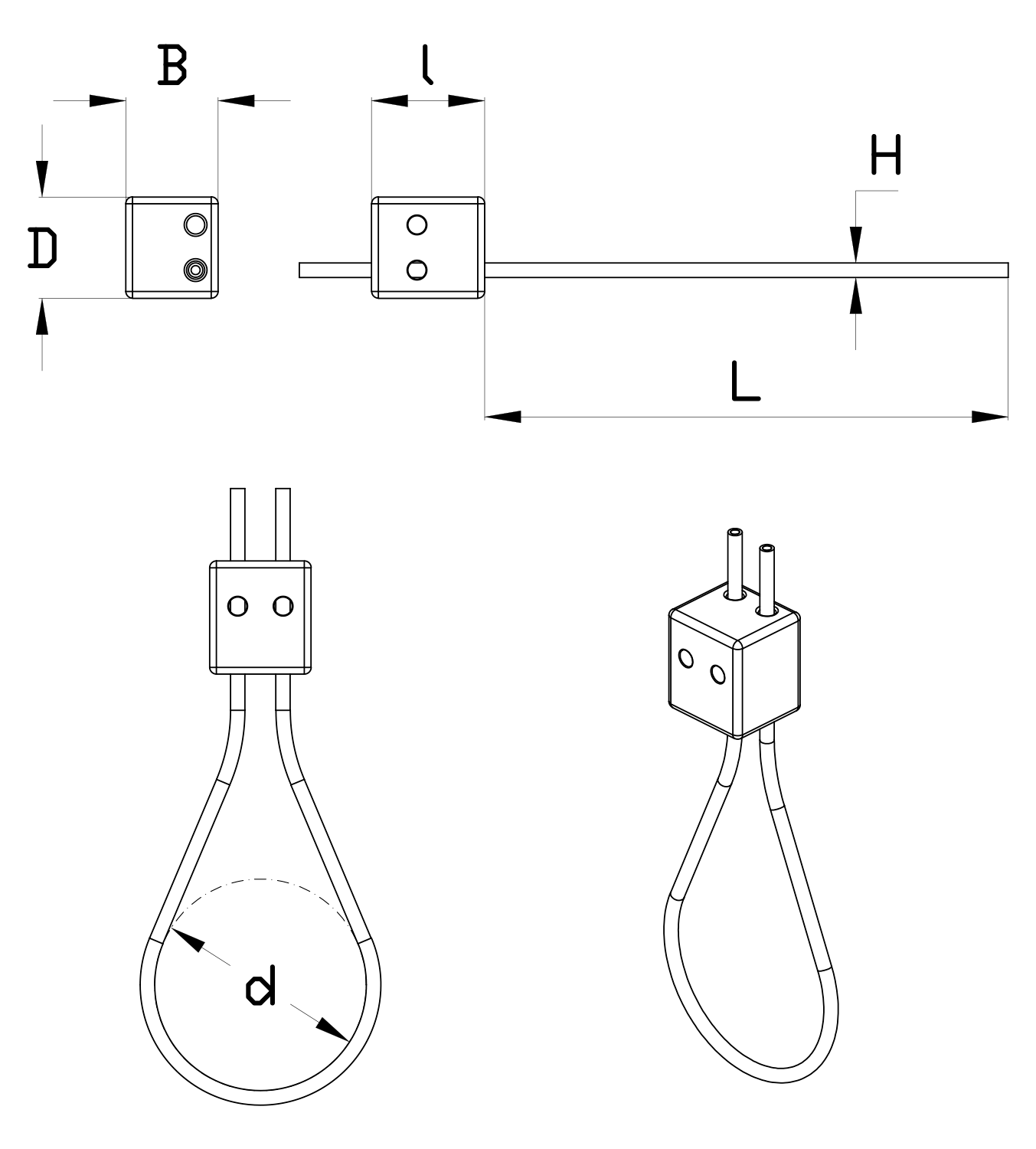

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Max. Capacity Ø (d)	L	l	H	D	B	Tensile strength max. (N)						More Info.

02012000380	24,10	102,00	12,40	1,60	11,20	10,20	560
02012000381	39,40	152,00	12,40	1,60	11,20	10,20	560
02012000382	58,40	203,00	12,40	1,60	11,20	10,20	560
02012000383	74,20	254,00	12,40	1,60	11,20	10,20	560
02012000384	98,60	305,00	12,40	1,60	11,20	10,20	560
02012000385	106,70	356,00	12,40	1,60	11,20	10,20	560
02012000386	161,50	508,00	12,40	1,60	11,20	10,20	560
02012000387	185,90	610,00	12,40	1,60	11,20	10,20	560
02012000388	218,20	711,00	12,40	1,60	11,20	10,20	560
02012000389	250,70	813,00	12,40	1,60	11,20	10,20	560
02012000390	282,70	914,00	12,40	1,60	11,20	10,20	560
02012000391	315,20	1016,00	12,40	1,60	11,20	10,20	560
02012000392	346,20	1118,00	12,40	1,60	11,20	10,20	560
02012000393	·	·	·	·	·	·	·
