The TAZ family represents the female support designed to integrate directly and efficiently with the closure devices of the TAB and TAE families.
Its function is to act as a fixed housing, serving as the mechanical receptacle on which the opening-closing action takes place, ensuring secure anchoring, proper alignment, and reliable operation of the assembly.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
L1
I
D
H
C
L
J
Suitable with push latches



More
Info.
50001000200 14,00 7,00 2,80 7,80 5,20 21,20 3,00 TAB / TAE

If you are interested in our family TAZ, you may be interested in these families as well:

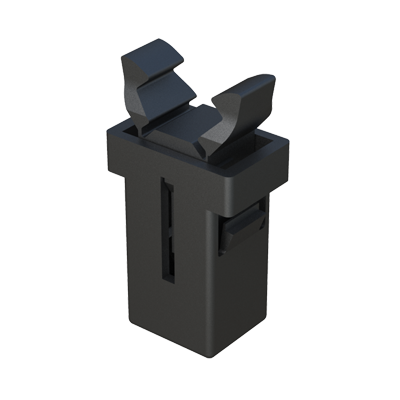

<p>The <strong>TAB closing device</strong> is a simple and effective system designed for the <strong>retention and locking of panels or covers</strong>, widely used in industrial, electrical and technical furniture applications. Its compact design allows fast and secure assembly, even in reduced spaces.</p>
<p>Manufactured in <strong>polyamide (PA6 or PA12)</strong>, it offers <strong>excellent mechanical strength and fatigue resistance</strong>, as well as <strong>high dimensional stability</strong> against temperature and humidity variations. <strong>PA12</strong> versions provide <strong>greater impact resistance</strong> and improved performance outdoors or in high-humidity environments, while <strong>PA6</strong> stands out for its <strong>rigidity</strong> and <strong>optimized cost</strong>.</p>
<p>Most references can be supplied <strong>open</strong> or <strong>closed</strong>, depending on assembly needs. In the closed position, the device ensures a <strong>firm and permanent lock</strong>; in the open position, it allows <strong>quick pre-assembly</strong> and easy handling before the final closure.</p>
<p>Available in <strong>various dimensions</strong> to suit different panel thicknesses and application requirements.</p>
<p><strong>Main features</strong><br>
• Material: <strong>PA6</strong> or <strong>PA12</strong><br>
• High mechanical strength and durability<br>
• Excellent behaviour against chemical and environmental agents<br>
• Fast assembly without special tools<br>
• Available <strong>open</strong> or <strong>closed</strong><br>
• Various sizes and opening/closing forces (Newtons) available</p>
<p><strong>Typical applications</strong><br>
• Closure of housings, panels or protective covers<br>
• Electrical, electronic and ventilation equipment<br>
• Technical furniture, display systems or modular structures<br>

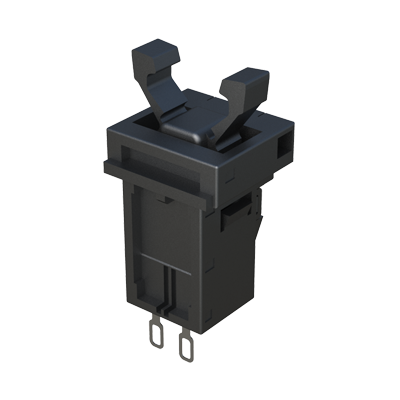

• Fast assembly solutions in series production</p>   <p>The <strong>TAE</strong> is a closing device for panels and surfaces that, in addition to finishing and covering the hole, includes an <strong>electrical status signal</strong>. With a single component, it both closes access and <strong>informs the system whether the cover is open or closed</strong>.</p>
<p><strong>Operation</strong><br>
It is press-fitted into the panel hole. When the cover or associated element is actuated, the TAE <strong>opens or closes the signal circuit</strong>. This signal can be sent to a PLC, control board, or indicator (pilot light, alarm, enable signal). The electrical configuration acts according to the state (NO/NC), functioning as a <strong>circuit break detector</strong> and serving as a <strong>safety element</strong> to prevent injuries when accessing specific zones or parts of equipment, or as an <strong>energy-saving element</strong> by deactivating unnecessary loads.</p>
<p><strong>Advantages</strong><br>
• Closing + electrical signal in one component.<br>
• Quick installation, no tools required.<br>
• Avoids external microswitches or sensors.<br>
• Circuit break detector.<br>
• Safety and/or energy-saving function.<br>
• Clean and professional panel finish.</p>
<p><strong>Applications</strong><br>
• HVAC and ventilation systems (inspection hatches, dampers, filters)<br>
• Industrial machinery with access covers or panels<br>
• Electronic devices and control panels<br>
• Situations where it is necessary to know the <strong>open/closed status</strong> of a service point</p>
